• Cisco Meraki MS220-48LP-HW 48-port PoE+ rackmount switch
1 1

Meraki

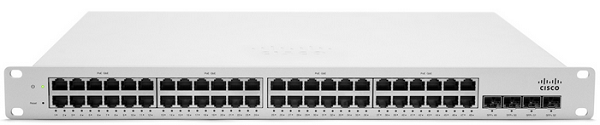

Meraki MS220-48LP-HW | MS220 48-Port PoE+ Switch, 370W, 4x 1G SFP

MS220-48LP-HW

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MS220-48LP is a cloud-managed Layer 2 access switch built for campus, branch and distributed enterprise sites that need PoE+ for phones, access points and cameras. It is managed entirely through the Meraki dashboard, where it can be provisioned with zero-touch deployment and monitored without a local console.

The switch provides 48 x 10/100/1000 RJ45 PoE+ (802.3at) ports with a 370 W PoE budget, plus 4 x 1G SFP uplinks. Switching capacity is 104 Gbps. It runs fanless in a 1U chassis and takes 100-240 VAC input through a fixed internal power supply. This is the lower-power option in the range, suited to sites where the full-power PoE of the MS220-48FP is not required.

The -HW SKU is hardware only and does not include a licence. A Meraki per-device Enterprise licence is required to operate it in the dashboard, with 1, 3, 5, 7 and 10 year terms available under the LIC-MS220-48LP part number pattern. The SFP uplink slots accept Meraki-supported 1GbE SFP modules, and virtual stacking is supported with other MS switches.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Zero-touch cloud provisioning and dashboard management
- Virtual stacking with other Meraki MS switches
- Layer 7 device visibility
- 802.1X RADIUS access control and DHCP snooping
- RSTP/STP, LACP and IGMP snooping
- 8-queue QoS and port mirroring
- Dynamic PoE power allocation across the 370 W budget
- Access policies and guest separation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: MS220-48LP-HW
- Device type: Layer 2 cloud-managed PoE+ Gigabit switch
- Downlink ports: 48 x 10/100/1000BASE-T RJ45 PoE+
- Uplink ports: 4 x SFP 1GbE
- PoE standard: IEEE 802.3at (PoE+)
- PoE budget: 370 W
- Switching capacity: 104 Gbps
- Input power: 100-240 VAC, 47-63 Hz
- Power supply: Fixed internal
- Cooling: Fanless
- Operating temperature: 0 to 40 C (32 to 104 F)
- Humidity: 5 to 95% non-condensing
- Mounting: 1U rack-mountable or desktop
- Management: Meraki cloud dashboard, SNMPv1/v2c/v3, Syslog
- Dimensions (W x D x H): approx. 440 x 254 x 44 mm (17.32 x 10.00 x 1.73 in)

FAQs

Q: Does the MS220-48LP-HW include a licence?
A: No. The -HW SKU is hardware only. A Meraki per-device Enterprise licence is required to operate the switch in the dashboard, available in 1, 3, 5, 7 and 10 year terms as LIC-MS220-48LP.

Q: How much PoE power does it provide?
A: It has a 370 W PoE+ (802.3at) budget shared across the 48 ports. Dynamic PoE allocation distributes power to connected devices as needed.

Q: What does the MS220-48LP-HW work with?
A: The 4 x 1G SFP uplink slots accept Meraki-supported 1GbE SFP modules. It is managed through the Meraki cloud dashboard and supports virtual stacking with other MS switches.

Q: How does it differ from the MS220-48FP?
A: The MS220-48LP has a 370 W PoE budget, intended for sites that do not need the full-power PoE of the MS220-48FP. Port count and uplinks are the same.

Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.
