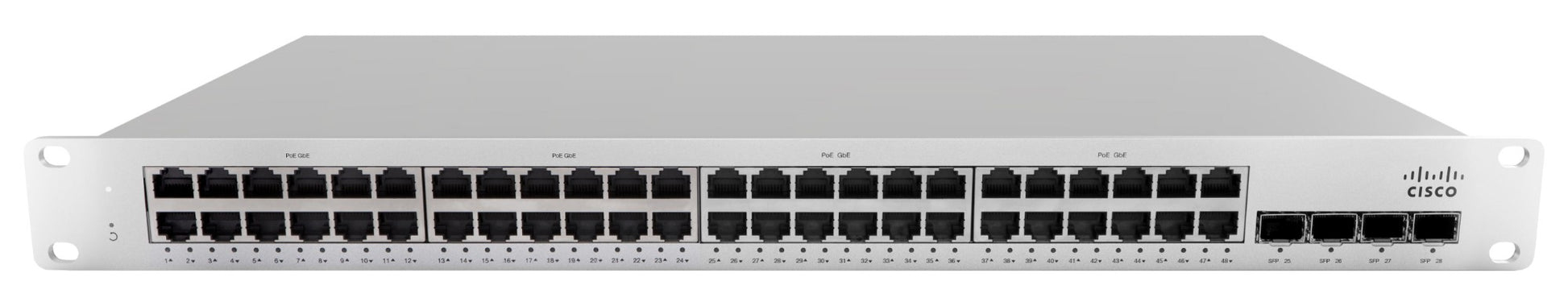

Meraki MS210-48LP-HW | MS210 48-Port Gigabit PoE+ Switch, 370W, 4x 1G SFP

MS210-48LP-HW

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MS210 is a cloud-managed, stackable Gigabit access switch built for branch offices and small campus networks. This model is managed through the Meraki Dashboard, so configuration, monitoring and firmware updates are handled from the cloud.

The MS210-48LP-HW provides 48 x 10/100/1000BASE-T RJ45 ports with PoE+ and a 370W PoE budget, plus 4 x 1G SFP uplinks. Two stacking ports deliver 80 Gbps of stacking bandwidth, and the switch offers 104 Gbps of switching capacity with a forwarding rate of 77.38 mpps. It runs from a 100-240 VAC supply and is a 1U rack-mountable unit that can also be placed on a desktop. Operation requires a Meraki cloud-management licence, and this SKU is the hardware only.

The MS210 stacks with the MS225 over its stacking ports, and the SFP uplinks accept 1G SFP optics for fibre links back to the core.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Dual stacking interfaces with up to 80 Gbps of bandwidth, stacking-compatible with the MS225
- Non-blocking backplane with up to 104 Gbps
- 6 configurable QoS queues for converged voice, video and data
- IEEE 802.1X, MAB and hybrid authentication with RADIUS server monitoring
- Access control lists for IPv4 and IPv6, plus MAC whitelisting
- DHCP snooping to protect against rogue DHCP servers
- IGMP snooping for multicast optimisation
- LACP link aggregation, with MLAG support on stacked switches

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Ports: 48 x 10/100/1000BASE-T RJ45 with auto negotiation and auto-MDIX
- Uplinks: 4 x 1GbE SFP
- Stacking ports: 2 (80 Gbps stacking bandwidth)
- Management port: 1 x RJ45
- PoE+ power budget: 370W
- Switching capacity: 104 Gbps
- Forwarding rate: 77.38 mpps
- Power input: 100-240 VAC, 47-63 Hz
- Power draw: 53W idle, 490W full load
- Mounting: 1U rack-mountable, 2-post front mounting, or desktop with feet
- Operating temperature: -5 to 50 C
- Operating humidity: 5 to 95%, non-condensing
- MTBF: 381,015 hours at 25 C
- Regulatory: CSA, FCC, IC, RoHS
- Dimensions (W x H x D): 48.46 x 4.38 x 34 cm

FAQs

Q: Does the MS210-48LP-HW need a licence?
A: Yes. The switch requires a Meraki cloud-management licence to operate and be managed through the Meraki Dashboard. This SKU is the hardware only.

Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.

Q: How much PoE power does it provide?
A: It has a 370W PoE+ budget shared across its 48 RJ45 ports, so the number of devices at full PoE+ draw depends on their individual power requirements.

Q: What can it stack with?
A: The two stacking ports provide 80 Gbps of stacking bandwidth, and the MS210 is stacking-compatible with the MS225.

Q: What do the SFP uplink ports support?
A: The 4 SFP uplink ports support 1G SFP optics, allowing fibre connections to upstream or aggregation switches.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
