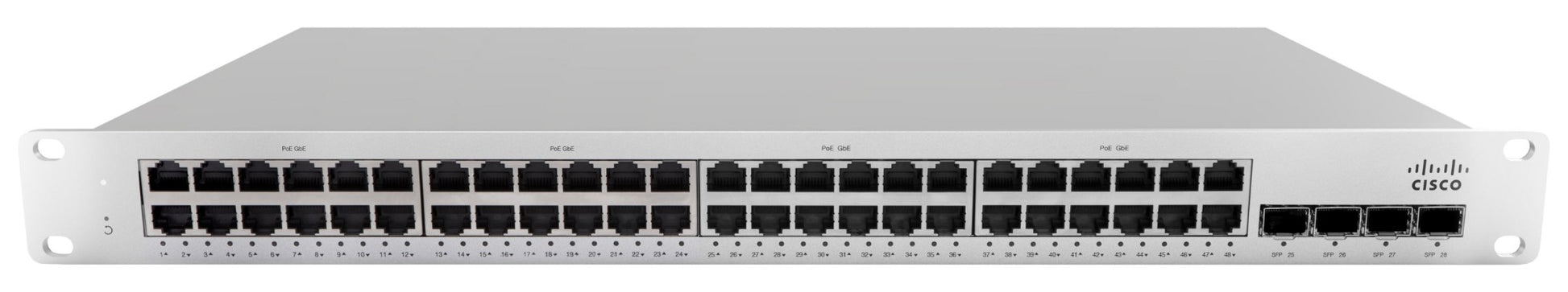

• Meraki MS210-48-HW silver switch with 48x 1G RJ45 ports
1 1

Meraki

Meraki MS210-48-HW | MS210 48-Port Gigabit Switch, Non-PoE, Enterprise

MS210-48-HW

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MS210 is a Layer 2 cloud-managed stackable access switch for distributed branches, remote sites and small to mid-size campus edge deployments. It is managed entirely through the Meraki dashboard, so it suits sites where remote configuration and monitoring matter more than on-site CLI access.

This non-PoE model provides 48 x 10/100/1000BASE-T RJ45 ports with 4 x 1G SFP uplinks, 176 Gbps of switching capacity and a 77.38 Mpps forwarding rate. Two stacking ports (80G dual interface) allow up to 8 switches in a physical stack. It is a fanless 1U unit with a fixed internal power supply that draws 25 W idle and 42 W at full load. It does not provide PoE, so use it for wired endpoints that need no inline power. The Enterprise licence tier is required to manage it from the Meraki cloud dashboard.

The MS210 stacks with other MS210 units and with the MS225, which gives the stack access to 10G uplinks. It uses Meraki stacking cables MA-CBL-40G-50CM, MA-CBL-40G-1M and MA-CBL-40G-3M, supports Meraki SFP and SFP+ pluggable optics, and accepts the optional Cisco RPS-2300 (PWR-RPS2300) for redundant power.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cloud management with zero-touch provisioning and scheduled automatic firmware upgrades
- Virtual stacking to manage thousands of ports from a single dashboard
- Physical stacking of up to 8 members, including cross-model stacking with the MS225
- Live tools including remote packet capture, cable test and link failure detection
- Layer 7 application, client and hostname fingerprinting
- 802.1X, MAB, hybrid RADIUS authentication, port security, DHCP snooping and BPDU/Root guard
- Voice VLAN, LLDP/CDP, IGMP snooping, port mirroring and LACP with MLAG on stacks
- Email, SMS and mobile push alerts

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Model: MS210-48-HW
- Ports: 48 x 10/100/1000BASE-T RJ45 with auto-MDIX
- PoE: None (non-PoE model)
- Uplinks: 4 x 1GbE SFP
- Stacking ports: 2 x stacking ports
- Stacking bandwidth: 80G dual interface, up to 8 switches per stack
- Management port: RJ45
- Switching capacity: 176 Gbps
- Forwarding rate: 77.38 Mpps
- MAC forwarding entries: 32K
- VLAN support: 802.1Q, up to 4,094 VLANs
- Link aggregation: 802.3ad, up to 8 ports per aggregate
- Jumbo frame support: 9578 byte frame
- QoS: 802.1p, 8 queues, configurable DSCP to CoS mapping
- Layer 3: Static routing, DHCP relay
- Power input: 100 - 240 VAC, 47-63 Hz
- Power consumption: 25 W idle, 42 W full load
- Power supply: Fixed internal
- Cooling: Fanless
- Mounting: 1U rack-mountable, 2-post front mounting, desktop-mountable
- Dimensions (H x W x D): 4.38 x 48.46 x 34 cm
- Weight: 3.98 kg
- Operating temperature: 0 to 40 C
- Humidity: 5 to 95% non-condensing
- Regulatory: CSA-US, FCC, IC, CE, RCM, RoHS

FAQs

Q: Does the MS210-48-HW need a licence?
A: Yes. It requires a Cisco Meraki Enterprise licence to be managed through the Meraki cloud dashboard.

Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.

Q: Does this switch provide PoE?
A: No. The MS210-48-HW is a non-PoE model, so it provides no PoE budget. It suits wired endpoints that do not need inline power.

Q: How do I get 10G uplinks with this switch?
A: The MS210 stacks physically with the MS225, which gives the stack access to 10G uplinks. Stacking uses Meraki cables MA-CBL-40G-50CM, MA-CBL-40G-1M or MA-CBL-40G-3M.

Q: Can I add redundant power?
A: Yes. The internal power supply is fixed, but the optional Cisco RPS-2300 chassis (PWR-RPS2300) provides external redundant power.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
