• Meraki MS210-24P-HW 24-port PoE+ rack-mount switch
1 1

Meraki

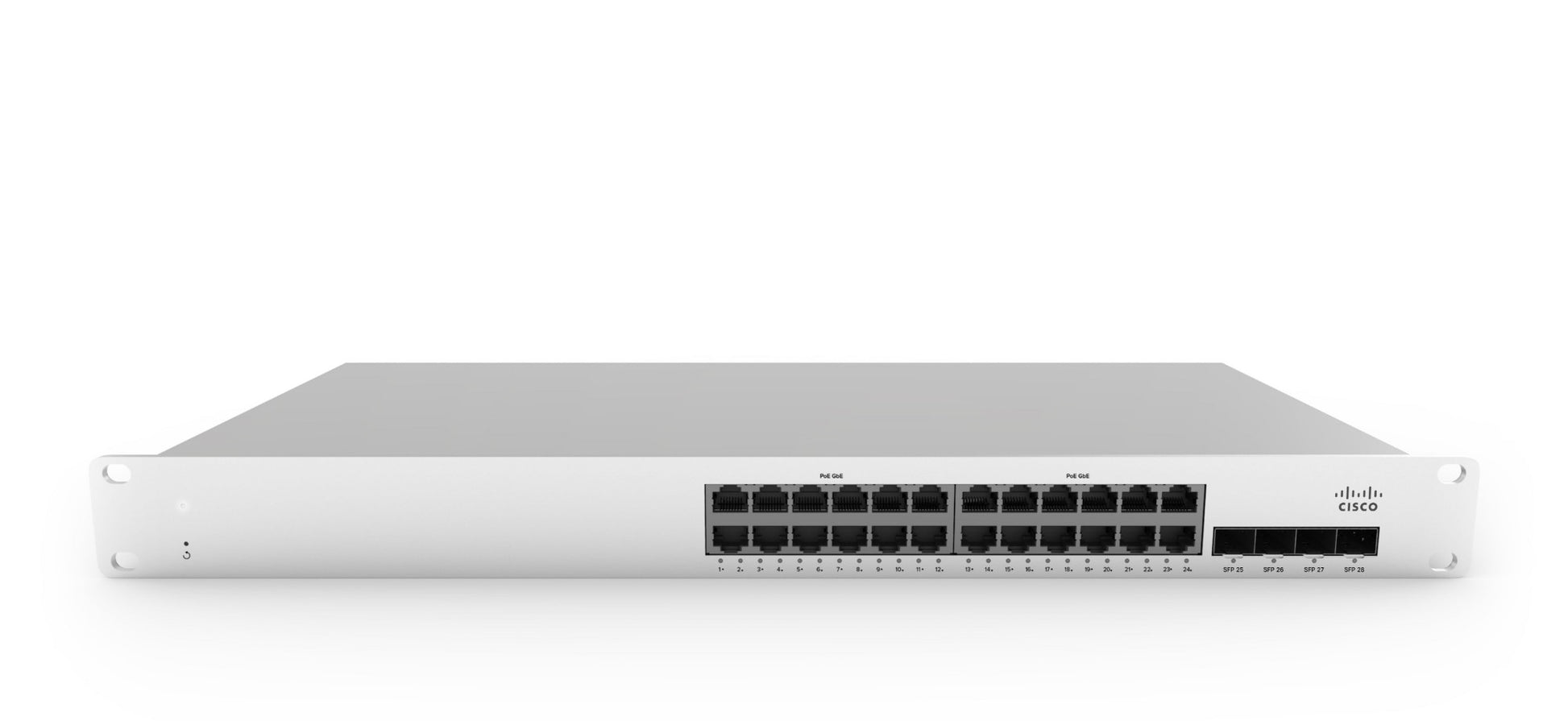

Meraki MS210-24P-HW | MS210 24-Port Gigabit PoE+ Switch, 370W, 4x 1G SFP

MS210-24P-HW

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MS210-24P is a cloud-managed Layer 2 stackable access switch for branch offices, classrooms and wiring closets that need PoE+ for access points, IP phones and cameras. It is managed entirely through the Meraki Dashboard with zero-touch provisioning.

The switch provides 24 Gigabit RJ45 ports, each supporting 802.3af/at PoE+ at up to 30 W per port, from a 370 W total PoE budget. Four 1GbE SFP uplinks connect to the distribution layer, and two dedicated stacking ports deliver 80 Gbps of stack bandwidth for up to 8 units. Switching capacity is 128 Gbps with a 41.67 Mpps forwarding rate in a 1U rack-mountable chassis with a fixed internal power supply.

The MS210 stacks with the MS225 series and supports an optional external redundant power supply. It requires a matching Meraki Enterprise licence, LIC-MS210-24P, available in 1, 3, 5, 7 or 10 year terms. This is the hardware-only SKU, so the licence is purchased separately.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cloud-managed through the Meraki Dashboard with zero-touch remote provisioning
- Physical stacking of up to 8 switches with the MS225 series, plus virtual stacking
- Layer 2 switching with static routes, DHCP relay, DHCP snooping and IPv4/IPv6 ACLs
- Warm spare redundancy using VRRP
- Voice and video QoS with 6 queues
- 802.1X RADIUS, MAC-based authentication and role-based access control
- Per-port and per-client historical usage statistics with client fingerprinting
- Non-blocking switch fabric with integrated rack and desk mounting brackets

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Ports: 24 x 10/100/1000BASE-T RJ45 with auto-negotiation and auto-MDIX
- PoE: 802.3af/802.3at on all 24 ports, up to 30 W per port
- PoE budget: 370 W
- Uplinks: 4 x 1GbE SFP
- Stacking ports: 2 x stacking ports, 80 Gbps stack bandwidth, up to 8 units
- Management port: RJ45
- Switching capacity: 128 Gbps
- Forwarding rate: 41.67 Mpps
- MAC forwarding entries: 16K
- Jumbo frame support: 9578 byte Ethernet frame
- QoS: 6 configurable queues
- Power supply: Fixed internal, 100-240 VAC, 47-63 Hz
- Redundant power: Optional external RPS supported
- Power consumption: 21 W idle, 448 W full load
- Dimensions (H x W x D): 4.38 x 48.46 x 25 cm (1U)
- Weight: 3.71 kg
- Humidity: 5 to 95% non-condensing

FAQs

Q: Does the MS210-24P need a licence to operate?
A: Yes. It requires a Meraki cloud licence, LIC-MS210-24P-xYR, available in 1, 3, 5, 7 or 10 year terms and purchased separately from this hardware-only SKU.

Q: How much PoE power does it provide?
A: It has a 370 W PoE+ budget shared across 24 ports, with up to 30 W available on any single port under 802.3af/at.

Q: Can it be stacked with other switches?
A: Yes. Two stacking ports provide 80 Gbps of stack bandwidth and the switch stacks with the MS225 series, up to 8 units in a physical stack.

Q: What uplink options does it have?
A: It has four 1GbE SFP uplink ports. Refer to the Meraki accessories datasheet for the supported SFP modules.

Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
