• Meraki MS210-24-HW 24-port 1G rack-mount switch with 4x 10G SFP+ uplinks
1 1

Meraki

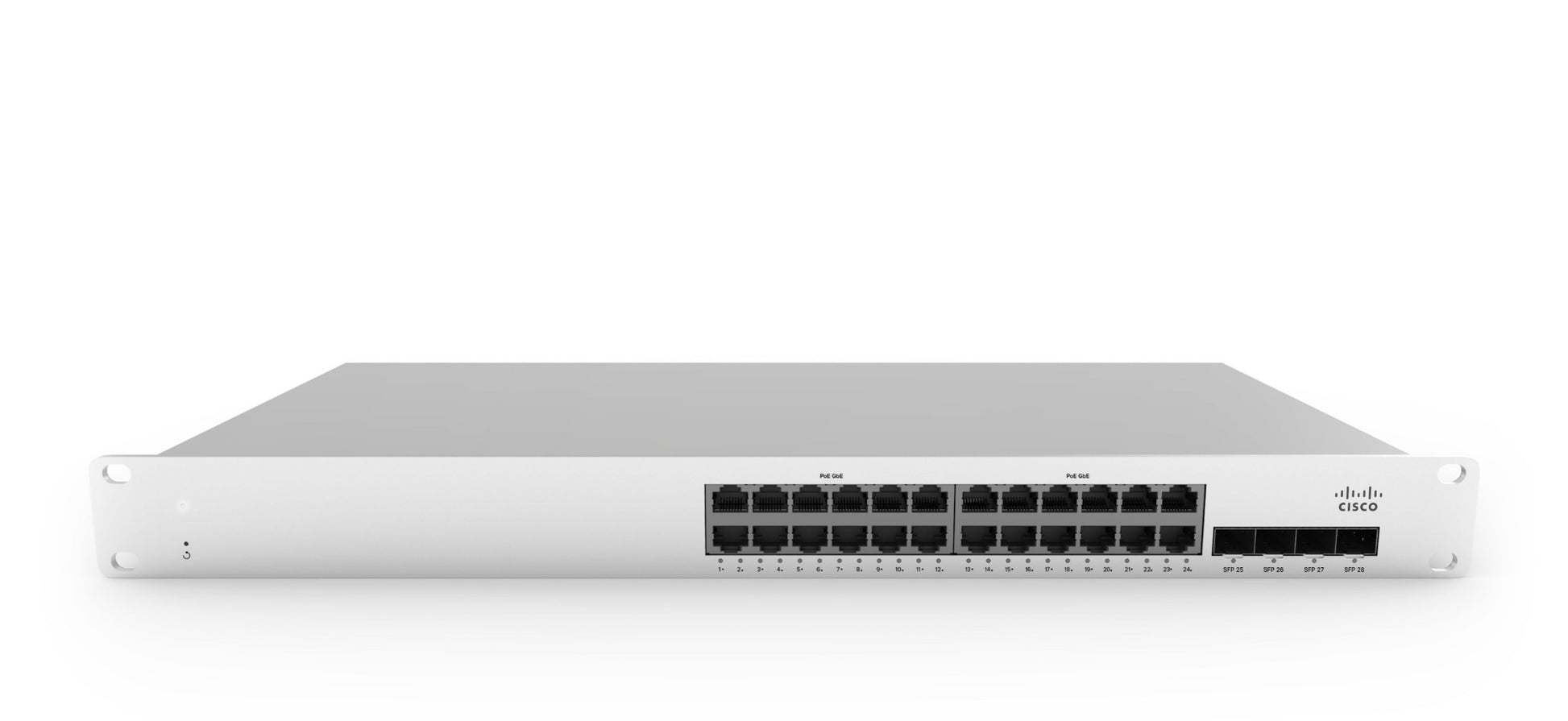

Meraki MS210-24-HW | MS210 24-Port Gigabit Switch, 4x 1G SFP, No PoE

MS210-24-HW

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MS210-24 is a cloud-managed, Layer 2 stackable access switch from the Meraki MS210 series. It suits branch offices and small campus locations that want centrally monitored, zero-touch provisioned access switching managed through the Meraki Dashboard.

This is the 24-port, non-PoE model with 24 x 10/100/1000BASE-T RJ45 ports and 4 x 1GbE SFP uplinks. It provides 128 Gbps of switching capacity and a 41.67 Mpps forwarding rate. Two dedicated stacking ports deliver 80 Gbps of stacking bandwidth, and up to 8 switches can be physically stacked. It runs from a fixed internal power supply at 100-240 VAC and also supports an external RPS-2300 for redundant power. It operates under cloud management with a Meraki Enterprise licence (LIC-MS210-24), which is sold separately from the -HW hardware SKU.

The MS210-24 can be physically stacked with MS225 switches using MA-CBL-40G-50CM or MA-CBL-40G-1M stacking cables, giving access to the MS225 10G uplinks. The four SFP uplink slots take 1G SFP modules.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cloud management through the Meraki Dashboard with zero-touch remote provisioning
- Virtual stacking supports thousands of switch ports in a single logical stack
- Physically stacks with the MS225 for access to 10G uplinks
- Six dedicated QoS queues for converged voice, video and data
- Detailed historical per-port and per-client usage statistics
- Shallow 9.84 in rack depth with low power consumption
- Optional redundant power through the RPS-2300

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Model: MS210-24-HW
- Ports: 24 x 10/100/1000BASE-T RJ45 with auto-negotiation and auto-MDIX
- Uplinks: 4 x 1GbE SFP
- Stacking ports: 2 x stacking ports
- Management port: RJ45
- Switching capacity: 128 Gbps
- Forwarding rate: 41.67 Mpps
- Stacking bandwidth: 80 Gbps
- Physical stacking: up to 8 switches
- PoE: None (non-PoE model)
- Routing: Layer 2 with static routing
- QoS: 6 configurable queues
- Jumbo frame support: 9578 byte Ethernet frame
- Power input: 100-240 VAC, 47-63 Hz
- Power supply: Fixed internal
- Redundant power: External RPS-2300 supported
- Dimensions (H x W x D): 4.38 x 48.46 x 25 cm (1.72 x 19.08 x 9.84 in)
- Weight: 2.73 kg (6.03 lb)
- MTBF (at 25 C): 590,165 hours

FAQs

Q: Does the MS210-24-HW include a licence?
A: No. The -HW SKU is the hardware only. The switch needs a Meraki Enterprise licence (LIC-MS210-24) to operate under cloud management, available in 1, 3, 5, 7 and 10 year terms.

Q: Does this switch provide PoE?
A: No. The MS210-24 is a non-PoE model, so it does not supply power to connected devices. PoE variants of the MS210 are available separately.

Q: Can the uplinks run at 10G?
A: The four SFP uplinks operate at 1G. To gain 10G uplinks, physically stack the MS210-24 with an MS225 switch using the 80G stacking ports.

Q: Which stacking cables does it use?
A: It stacks with MS225 switches using MA-CBL-40G-50CM or MA-CBL-40G-1M stacking cables, providing 80 Gbps of stack bandwidth.

Q: Can I add redundant power?
A: Yes. The switch has a fixed internal power supply and supports the external RPS-2300 for redundant power.

Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
