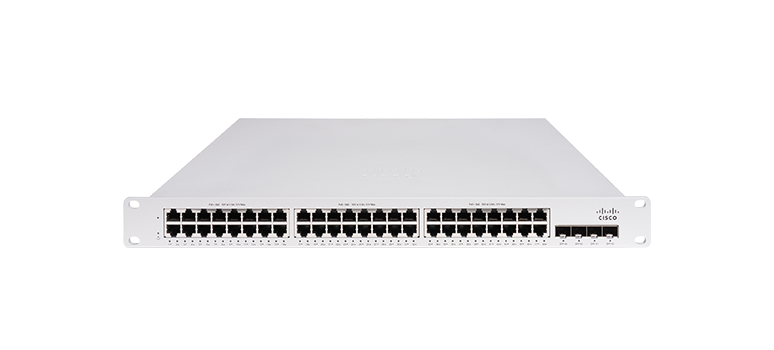

• Cisco Meraki MS150-48T-4X 48-port white switch with 10G uplinks
1 1

Meraki

Meraki MS150-48T-4X | MS150 48-Port Gigabit Switch, 4x 10G SFP+, No PoE

MS150-48T-4X

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MS150-48T-4X is a Layer 2 cloud-managed stackable access switch for branch and campus deployments. It is a data-only model, which suits access ports that do not need Power over Ethernet, and it is managed through the Meraki Dashboard.

The switch provides 48 x 10/100/1000 RJ45 ports and 4 x 10GbE SFP+ uplink ports, with 176 Gbps of switching capacity. Two dedicated stack ports give 80 Gbps of stacking bandwidth, and up to eight MS150 switches can be stacked. A dedicated out-of-band management interface is included, and static routing is supported at Layer 3. It is a 1U rack-mount unit with a fixed internal AC power supply drawing 23.1 W idle and 49.8 W at maximum load. This SKU provides no PoE.

The SFP+ uplinks take Meraki 10GbE SFP+ modules. Stacking cables are sold separately. A Meraki MS150 switch licence is required for cloud management, with Essentials and Advanced tiers available, and Adaptive Policy needs the Advanced tier.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cloud management through the Meraki Dashboard
- Stack up to eight MS150 switches over the two dedicated stack ports
- Remote packet capture tools in the Dashboard
- Automatic firmware upgrades
- 802.1X authentication, Dynamic ARP Inspection and DHCP Snooping
- IPv4/IPv6 ACL support and 802.1Q VLAN tagging
- Broadcast storm control and SNMP/Syslog integration
- Adaptive Policy support with the Advanced licence
- Non-blocking switch backplane

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Ports: 48 x 10/100/1000 RJ45
- Uplinks: 4 x 10GbE SFP+
- PoE: None (data only)
- Switching capacity: 176 Gbps
- Stacking ports: 2 dedicated
- Stacking bandwidth: 80 Gbps
- Management interface: 1 dedicated out-of-band
- Layer 3 routing: Static routing
- Power input: 100-240 VAC
- Power load (idle/max): 23.1 W / 49.8 W
- Power supply: Fixed internal
- Fans: Fixed internal
- Mounting: Integrated 1U rack mount
- Dimensions (H x W x D): 4.4 x 48.2 x 34 cm (1.72 x 19 x 13.38 in)
- Weight: 5.1 kg (11.24 lb)
- Operating temperature: 0 to 45 C (32 to 113 F)
- Storage and transportation temperature: -20 to 70 C (-4 to 158 F)
- Humidity: 5% to 95%
- MTBF at 25 C: 1,609,874 hours

FAQs

Q: Does this switch need a licence?
A: Yes. A Meraki MS150 switch licence is required for the switch to operate under cloud management. Essentials and Advanced tiers are available, and Adaptive Policy requires the Advanced tier.

Q: Does the MS150-48T-4X provide PoE?
A: No. This is a data-only model with no PoE, so powered devices such as access points or phones need a separate power source or a PoE model.

Q: How many switches can be stacked together?
A: Up to eight MS150 switches can be stacked using the two dedicated stack ports, which provide 80 Gbps of stacking bandwidth. Stacking cables are sold separately.

Q: What fits in the SFP+ uplink ports?
A: The four SFP+ ports take Meraki 10GbE SFP+ modules, such as the MA-SFP-10GB-ER and MA-SFP-10GB-ZR.

Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
