• Cisco Meraki MS150-48T-4G white 48-port switch
1 1

Meraki

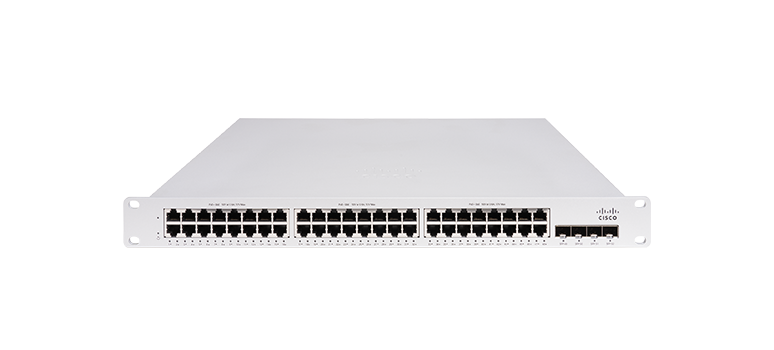

Meraki MS150-48T-4G | Meraki MS150 48-Port Gigabit Switch, 4x 1G SFP

MS150-48T-4G

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Meraki MS150-48T-4G is a cloud-managed Layer 2 stackable access switch designed for branch and campus deployments. With 48 Gigabit Ethernet ports, 4x 1GbE SFP uplinks, and 104 Gbps non-blocking switching capacity, it delivers reliable connectivity for high-density workspaces. Stack up to eight switches with dedicated 80 Gbps stacking bandwidth for simplified management and scalability.

Features

Cloud-managed via Meraki Dashboard with zero-touch provisioning
- Layer 2 switching with static routing for inter-VLAN traffic
- VLANs, IEEE 802.1Q tagging, and voice VLAN support
- IPv4 and IPv6 access control lists (ACLs)
- Dynamic ARP inspection and DHCP snooping
- Spanning Tree Protocol (STP, RSTP, MSTP)
- Link aggregation (LACP) for increased bandwidth
- Quality of Service (QoS) with priority queuing
- Storm control and broadcast rate limiting
- Remote packet capture and live troubleshooting tools
- Automatic firmware updates and configuration backups
- SNMP, Syslog, and REST API integration
- Energy-efficient fanless operation available on select models

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

48x 10/100/1000 Mbps RJ45 Ethernet ports
- 4x 1 GbE SFP uplink ports
- 104 Gbps switching capacity
- 77.4 Mpps forwarding rate
- 2 dedicated stacking ports with 80 Gbps bandwidth
- Supports stacking up to 8 switches
- Layer 2 switching with static routing capability
- 1x dedicated management interface
- Power consumption: 23.1W idle / 49.8W maximum
- Operating temperature: 0°C to 45°C
- 1U rack-mountable form factor, 1.72 x 19 x 13.38 inches
- Cloud management via Meraki Dashboard
- MTBF rating: 1,609,874 hours at 25°C

FAQs

Q: Does this switch support Power over Ethernet?
A: No, the MS150-48T-4G is a data-only model without PoE capability. For PoE requirements, consider the MS150-48LP-4G or MS150-48FP-4G models which provide 370W or 740W PoE+ budgets respectively.

Q: Can I stack this switch with other MS150 models?
A: Yes, the MS150-48T-4G supports stacking with other MS150 series switches using dedicated stacking ports. You can stack up to 8 switches with 80 Gbps stacking bandwidth. Data-only and PoE models can coexist in the same stack.

Q: What licensing does this switch require?
A: The MS150-48T-4G requires either an Enterprise or Advanced MS License to operate. Licenses are available in 1, 3, 5, 7, or 10-year terms for Enterprise and 1, 3, 5, or 7-year terms for Advanced. All MS150 switches in an organization must use the same license tier.

Q: What is the difference between the 4G and 4X uplink models?
A: The MS150-48T-4G features 4x 1 GbE SFP uplinks with 104 Gbps switching capacity, while the MS150-48T-4X offers 4x 10 GbE SFP+ uplinks with 176 Gbps switching capacity. Choose based on your uplink bandwidth requirements.

Q: Is this switch suitable for Wi-Fi 6E or Wi-Fi 7 access point deployments?
A: Yes, the MS150 series is designed to support next-generation Wi-Fi 7 and high-density IoT deployments. The 48 Gigabit ports provide ample connectivity for wireless access points, endpoints, and IoT devices across branch and campus environments.
