• Meraki MS150-48MP-4X PoE+ switch with Cisco 3560 black ports
1 1

Meraki

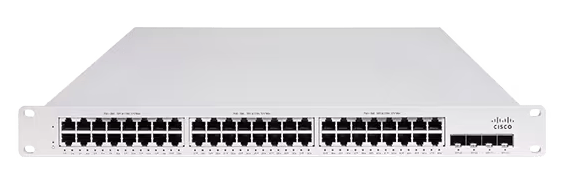

Meraki MS150-48MP-4X | Meraki MS150 48-Port Switch, 32x 1G + 16x 5G, 740W, 4x 10G SFP+

MS150-48MP-4X

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Meraki MS150-48MP-4X is a cloud-managed stackable Layer 2 access switch designed for high-density Wi-Fi 6E, Wi-Fi 7, and IoT deployments in branch and campus environments. Combining 32x 1 Gigabit ports with 16x 5 Gigabit multi-gig ports, it delivers 740W of PoE++ power budget with up to 60W per port on ports 33-48, ideal for powering next-generation access points, IP cameras, and PoE devices. With 4x 10 Gigabit SFP+ uplinks, 80 Gbps stacking bandwidth supporting up to 8 switches, and 304 Gbps switching capacity, the MS150-48MP-4X provides scalable performance and centralized cloud management through the Meraki Dashboard.

Features

Cloud-managed Layer 2 stackable access switch with Meraki Dashboard integration
- 48-port mixed configuration: 32x 1GbE + 16x 5GbE multi-gig ports
- 740W PoE++ power budget with IEEE 802.3at PoE+ and IEEE 802.3bt PoE++ support
- Up to 60W per port available on ports 33-48 for high-power devices
- 4x 10 Gigabit SFP+ uplinks for high-speed backbone connectivity
- 80 Gbps stacking bandwidth supporting up to 8 switches
- 304 Gbps non-blocking switching capacity with 226 Mpps forwarding rate
- Dynamic PoE allocation across all PoE-enabled ports
- VLAN support with IEEE 802.1Q tagging
- DHCP snooping and Dynamic ARP Inspection for security
- Broadcast storm control and rate limiting
- Static routing with DHCP relay support
- Zero-touch provisioning and automatic firmware updates
- Remote packet capture and diagnostic tools via dashboard
- SNMP v2c/v3 and Syslog integration
- 1U rack-mountable form factor with integrated power supply
- Energy-efficient design with dynamic power management

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

Port Configuration: 32x 10/100/1000BASE-T RJ45 + 16x 5GBASE-T multi-gig RJ45 ports
- PoE Power Budget: 740W total with IEEE 802.3bt PoE++ support (up to 60W per port on ports 33-48)
- Uplink Interfaces: 4x 10 Gigabit SFP+ ports
- Switching Capacity: 304 Gbps non-blocking
- Forwarding Rate: 226 Mpps
- Stacking: 80 Gbps stacking bandwidth, up to 8 switches via backplane stacking
- Layer 2 Features: VLAN tagging, DHCP snooping, Dynamic ARP Inspection, broadcast storm control
- Routing: Static routing and DHCP relay support
- Management: Cloud-managed via Meraki Dashboard with SNMP and Syslog integration
- Power Consumption: Maximum 933W
- Form Factor: 1U rack-mountable with integrated internal power supply
- Operating Temperature: 0°C to 40°C
- License Required: Enterprise or Advanced tier (sold separately)

FAQs

Q: What is the difference between the 32 Gigabit ports and 16 multi-gig ports?
A: The MS150-48MP-4X features 32 standard 1 Gigabit Ethernet ports on ports 1-32, while ports 33-48 are 5 Gigabit multi-gig capable ports that support 100Mbps/1Gbps/2.5Gbps/5Gbps speeds. The 16 multi-gig ports on ports 33-48 also support IEEE 802.3bt PoE++ with up to 60W per port, making them ideal for high-power Wi-Fi 6E and Wi-Fi 7 access points.

Q: Can this switch be stacked with other MS150 models?
A: Yes, the MS150-48MP-4X supports backplane stacking with up to 8 MS150 series switches using 80 Gbps stacking bandwidth. Compatible stacking cables such as the MA-CBL-100G-50CM are required. The switch can be stacked with other MS150-4X models including the MS150-24T-4X, MS150-48LP-4X, MS150-48FP-4X, and MS150-24MP-4X.

Q: What license tier is required for this switch?
A: The MS150-48MP-4X requires either an Enterprise or Advanced license tier to operate. The Enterprise license provides core Layer 2 switching features, static routing, and DHCP relay. The Advanced license adds capabilities such as Adaptive Policy for security segmentation. Licenses are sold separately and available in 1, 3, 5, 7, and 10-year terms.

Q: Is this switch suitable for Wi-Fi 7 deployments?
A: Yes, the MS150-48MP-4X is specifically designed to support Wi-Fi 7 and next-generation wireless deployments. The 16 multi-gig ports with 5 Gigabit capacity provide sufficient bandwidth for high-density Wi-Fi 7 access points, while the 740W PoE++ budget with up to 60W per port on ports 33-48 delivers the power required for demanding wireless infrastructure.

Q: How is the switch managed and configured?
A: The MS150-48MP-4X is entirely cloud-managed through the Cisco Meraki Dashboard, providing zero-touch provisioning, automatic firmware updates, remote packet capture, centralized monitoring, and troubleshooting tools. Configuration is performed via the intuitive web-based dashboard without requiring CLI access, and the switch integrates with SNMP and Syslog for external monitoring systems.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
