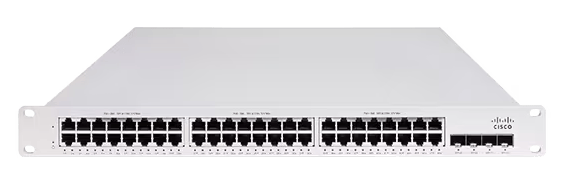

• Meraki MS150-48LP-4X cloud-managed PoE+ switch with white body
1 1

Meraki

Meraki MS150-48LP-4X | MS150 48-Port Gigabit PoE+ Switch, 370W, 4x 10G SFP+

MS150-48LP-4X

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Meraki MS150-48LP-4X is a cloud-managed Layer 2 stackable access switch designed for branch and campus deployments. With 48 Gigabit Ethernet ports, 370W PoE+ budget, 4x 10G SFP+ uplinks, and 176 Gbps switching capacity, it delivers reliable power and performance for wireless access points, IP phones, cameras, and IoT devices. Stack up to eight units via dedicated QSFP28 ports for scalable network expansion.

Features

Cloud-managed via Cisco Meraki Dashboard with zero-touch provisioning
- Layer 2 switching with static routing capabilities
- 802.3af/at PoE+ with 370W total budget and per-port dynamic power allocation
- Perpetual PoE maintains power to critical devices during switch reboot
- Dedicated QSFP28 stacking ports with 80 Gbps backplane bandwidth
- 802.1X port-based authentication for network access control
- DHCP snooping and Dynamic ARP Inspection for enhanced security
- 802.1Q VLAN tagging and broadcast storm control
- IPv4/IPv6 ACL support for traffic filtering
- SNMP v2c/v3, Syslog integration, and remote packet capture tools
- Automatic firmware updates scheduled via Dashboard
- Adaptive Policy ready with Advanced license and MS17+ firmware
- Hot-swappable, fanless operation for quiet deployment

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

48x 10/100/1000BASE-T Gigabit Ethernet ports
- 4x 10 Gigabit Ethernet SFP+ uplinks
- 370W total PoE+ budget with dynamic power allocation
- 176 Gbps non-blocking switching capacity
- 80 Gbps stacking bandwidth via 2x dedicated QSFP28 stacking ports
- Supports stacking up to 8 units
- Layer 2 switching with static routing
- Cloud-managed via Cisco Meraki Dashboard
- 1U rack-mountable form factor
- Operating temperature: 0°C to 45°C
- Dimensions and weight: Standard 1U rackmount design
- Management: Dashboard, SNMP, Syslog, remote packet capture
- Advanced features: 802.1X authentication, DHCP snooping, Dynamic ARP Inspection, 802.1Q VLAN tagging

FAQs

Q: Does the MS150-48LP-4X require a cloud license?
A: Yes, the MS150-48LP-4X requires either an Enterprise or Advanced license to activate cloud management and feature access. Licenses are available in 1, 3, 5, 7, and 10-year terms and are sold separately from the hardware.

Q: Can I stack MS150-48LP-4X switches with other Meraki models?
A: The MS150-48LP-4X stacks with other MS150 series switches using dedicated QSFP28 stacking ports, supporting up to 8 units with 80 Gbps stacking bandwidth. It does not stack with previous-generation MS models, but can uplink to them via standard SFP/SFP+ connections.

Q: What devices can be powered by the 370W PoE+ budget?
A: The 370W PoE+ budget supports IEEE 802.3af/at devices up to 30W per port, including wireless access points, IP phones, IP cameras, and IoT sensors. Dynamic power allocation automatically distributes power across connected devices.

Q: What is the difference between Enterprise and Advanced licenses?
A: Enterprise licenses provide core Layer 2 switching features, cloud management, and support. Advanced licenses add features like Adaptive Policy for dynamic segmentation and enhanced security capabilities. All MS150 switches in a Co-term organization must use the same license tier.

Q: Is the MS150-48LP-4X suitable for Wi-Fi 6E or Wi-Fi 7 deployments?
A: Yes, the MS150-48LP-4X is designed to support high-density wireless deployments including Wi-Fi 6E and Wi-Fi 7 access points. The 370W PoE+ budget and 10G SFP+ uplinks provide sufficient power and bandwidth for modern wireless infrastructure.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
