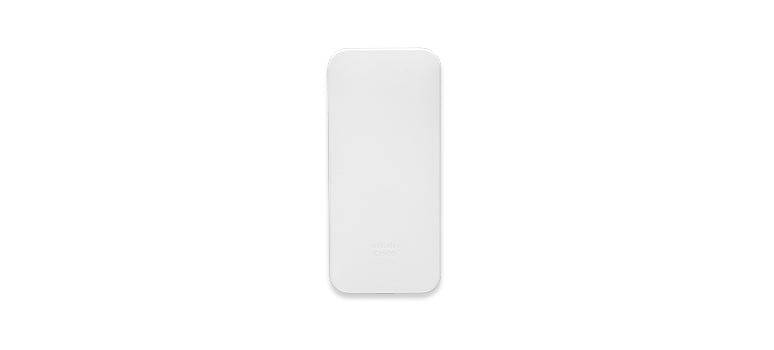

• White Meraki MR78-HW outdoor Wi-Fi 6 AP with minimalist design
1 1

Meraki

Meraki MR78-HW | MR78 Wi-Fi 6 Dual-Band Outdoor Access Point, IP67

MR78-HW

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The MR78 is a cloud-managed, dual-band 802.11ax (Wi-Fi 6) 2x2:2 outdoor access point in a ruggedised IP67 housing, delivering up to 1.5 Gbps aggregate frame rate. Designed for basic, medium-density outdoor deployments, it combines enterprise-grade security with simple, self-configuring cloud management. A single Gigabit Ethernet port provides 802.3af PoE power and uplink, while an integrated Bluetooth Low Energy radio supports beacon and scanning use cases. A Meraki licence is required for operation.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- DL-OFDMA, UL-OFDMA, TWT support and BSS Coloring
- SU-MIMO, UL/DL MU-MIMO, maximal ratio combining and beamforming
- Integrated Layer 7 firewall and packet inspection with application-aware traffic shaping
- WIDS/WIPS with rogue AP detection (Air Marshal)
- Flexible guest access with device isolation, 802.1q VLAN tagging and IPsec VPN tunnelling
- WPA3 Personal/Enterprise, 802.1X and PCI compliance reporting
- Voice and video optimisations (WMM, 802.1p, DSCP, U-APSD)
- Concealed mount plate with anti-tamper cable bay and security screws
- Self-configuring, plug-and-play cloud deployment

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Dual-band 802.11ax, 2x2:2 MU-MIMO, up to 1.5 Gbps aggregate frame rate (1,201 Mbps on 5 GHz plus 286 Mbps on 2.4 GHz)
- Three radios: 2.4 GHz and 5 GHz client access, plus a Bluetooth Low Energy (BLE 5) beacon and scanning radio
- Internal antenna gain: 5.4 dBi at 2.4 GHz, 6 dBi at 5 GHz
- 1 x 10/100/1000 BASE-T Ethernet (RJ45) port
- Power over Ethernet: 37-57 V (802.3af), 15 W maximum power consumption
- Up to 1024-QAM on 2.4 GHz and 5 GHz, with 20/40/80 MHz channel widths
- IP67 rated, operating temperature -20 °C to 55 °C, humidity 5-95% non-condensing
- Dimensions: 245 mm x 115 mm x 30 mm, weight 0.45 kg
- Operating altitude up to 12,192 m (40,000 feet)
- Meraki licence required for operation

FAQs

Q: What Wi-Fi standard does the MR78 support?
A: The MR78 is a dual-band 802.11ax (Wi-Fi 6) access point with 2x2:2 MU-MIMO, supporting up to 1024-QAM and 20/40/80 MHz channels, with up to 1.5 Gbps aggregate frame rate.

Q: How is the MR78 powered?
A: It is powered over Ethernet using 802.3af (37-57 V) via its single 10/100/1000 BASE-T RJ45 port, with a maximum power consumption of 15 W.

Q: Is the MR78 suitable for outdoor installation?
A: Yes. It has an IP67 rated housing, an operating temperature range of -20 °C to 55 °C and a concealed mount plate with an anti-tamper cable bay and security screws.

Q: Does the MR78 require a licence?
A: Yes. A Meraki licence is required for the access point to operate and be managed through the Meraki cloud dashboard.

Q: Does the MR78 include Bluetooth?
A: Yes. In addition to the 2.4 GHz and 5 GHz client access radios, it includes a Bluetooth Low Energy (BLE 5) radio for beacon and scanning functions.
