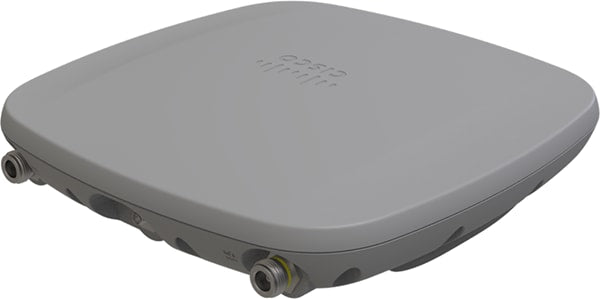

Cisco CW9163E-ROW | Catalyst 9163E Wi-Fi 6E Tri-Band Outdoor Access Point

CW9163E-ROW

Stock Status: Enquire

$3,893.08 inc. GST
$3,539.16 ex. GST
Sale Sold out
Shipping calculated at checkout.

Description

The Cisco CW9163E-ROW is a ruggedized outdoor Wi-Fi 6E access point designed for demanding enterprise deployments in campuses, stadiums, warehouses, and municipal networks. Featuring tri-band concurrent 2x2:2 radios across 2.4 GHz, 5 GHz, and 6 GHz bands with up to 3.9 Gbps aggregate frame rate, this IP67-rated unit delivers high-performance connectivity for medium-density outdoor environments. Equipped with a dedicated tri-band scanning radio for advanced RF analytics, IoT radio for Bluetooth and Zigbee, and built-in GNSS receiver for 6 GHz AFC compliance, it supports flexible deployment with external N-type antenna connectors and PoE+ power over a single 1G/2.5G multigigabit uplink.

Features

Wi-Fi 6E (802.11ax) with tri-band concurrent operation across 2.4 GHz, 5 GHz, and 6 GHz
- 2x2:2 MU-MIMO and OFDMA for simultaneous multi-device connectivity and reduced latency
- Up to 3.9 Gbps aggregate frame rate across three client-serving radios
- Dedicated tri-band scanning radio for AirMarshal wireless intrusion detection, RF optimization, and spectrum analysis
- IoT radio for Bluetooth Low Energy and Zigbee device connectivity and location services
- External antenna flexibility with four N-type connectors for omnidirectional, directional, or sector coverage
- Built-in GNSS receiver for 6 GHz AFC compliance enabling standard power outdoor operation
- 1G/2.5G multigigabit uplink for high-throughput backhaul
- IP67-rated outdoor enclosure for dust and water resistance
- Transmit beamforming and enhanced receive sensitivity for extended range and client density
- Layer 7 traffic shaping and QoS for application-based prioritization
- Integrated security with 802.1X, WPA2/WPA3, 192-bit encryption, and Active Directory integration
- Cloud management with zero-touch provisioning, RF optimization, and location analytics via Meraki Dashboard
- On-premises management option with Cisco Catalyst 9800 Series Wireless Controllers
- BSS coloring, Target Wake Time (TWT), and AP Power Save mode for efficiency and battery life optimization
- Dynamic Frequency Selection (DFS) and CleanAir Pro for interference mitigation
- Cisco Trust Anchor Module and Secure Boot for hardware-based security

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

Wi-Fi Standard: IEEE 802.11ax (Wi-Fi 6E), backward compatible with 802.11a/b/g/n/ac
- Radio Configuration: 2.4 GHz 2x2:2, 5 GHz 2x2:2, 6 GHz 2x2:2 (tri-band concurrent)
- Aggregate Frame Rate: Up to 3.9 Gbps (combined tri-radio)
- Uplink Interface: 1x RJ-45 10/100/1000/2500BASE-T Ethernet (multigigabit)
- Power: 802.3at PoE+ (Class 4)
- Antenna Connectors: 4x N-type female (external antennas sold separately)
- Additional Radios: 1x tri-band scanning radio (2.4/5/6 GHz), 1x IoT radio (BLE/Zigbee)
- Environmental Rating: IP67 outdoor-rated, weatherized enclosure
- GNSS Receiver: Built-in for 6 GHz AFC compliance (optional external GPS antenna)
- Advanced Features: MU-MIMO, OFDMA, beamforming, transmit beamforming, BSS coloring, Target Wake Time (TWT), 192-bit encryption, WPA3
- Security: AES hardware encryption, 802.1X authentication, WPA2/WPA3, integrated Layer 7 packet inspection
- Management: Cloud-managed via Meraki Dashboard or on-premises via Catalyst 9800 controllers
- Regional Code: ROW (Rest of World)

FAQs

Q: Does the CW9163E-ROW require external antennas to operate?
A: Yes, the CW9163E features four N-type female antenna connectors and requires external tri-band antennas (sold separately) to be field-installed. The choice of antenna determines coverage pattern and range, making it suitable for omnidirectional, directional, or sectorized outdoor deployments.

Q: What is the purpose of the built-in GNSS receiver?
A: The integrated GNSS receiver provides location data to Automated Frequency Coordination (AFC) services, enabling standard power outdoor operation in the 6 GHz band. This ensures regulatory compliance and maximizes range and throughput for Wi-Fi 6E deployments. An optional external GPS antenna can be added for enhanced satellite coverage in challenging environments.

Q: Can the CW9163E-ROW be managed on-premises or only through the cloud?
A: The CW9163E offers flexible dual management options. It can be cloud-managed through the Meraki Dashboard for zero-touch provisioning and centralized visibility, or managed on-premises using Cisco Catalyst 9800 Series Wireless Controllers. Organizations can switch between management modes as requirements evolve.

Q: What power budget is required to support the CW9163E-ROW?
A: The access point is powered via 802.3at PoE+ (Class 4) and draws power through the single RJ-45 multigigabit uplink port. Ensure your switch or PoE injector provides at least 30W per port to support full functionality including all radios, scanning, and IoT services.

Q: What outdoor environments is the CW9163E-ROW suitable for?
A: With its IP67-rated weatherized enclosure, the CW9163E is designed for harsh outdoor conditions including campuses, stadiums, warehouses, loading docks, airport hangars, municipal outdoor networks, and industrial yards. The rugged design ensures reliable operation in extreme temperatures, moisture, and dust exposure.
