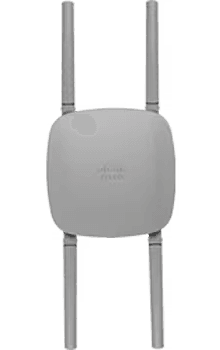

• Meraki CW9163E-MR Wi-Fi 6E outdoor access point with 4 antennas
1 1

Meraki

Meraki CW9163E-MR | Catalyst 9163E Wi-Fi 6E Tri-Band Outdoor Access Point

CW9163E-MR

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki CW9163E is a rugged Wi-Fi 6E outdoor access point designed for demanding outdoor environments including campuses, stadiums, and industrial sites. Featuring tri-band 2x2:2 MU-MIMO radios across 2.4 GHz, 5 GHz, and 6 GHz bands with up to 3.9 Gbps aggregate throughput, this IP67-rated AP delivers reliable connectivity in extreme conditions. Cloud-managed through the Meraki dashboard with built-in GPS for AFC compliance, integrated BLE and Zigbee IoT radios, and dedicated tri-band scanning for Air Marshal security monitoring.

Features

Wi-Fi 6E tri-band operation with simultaneous 2.4 GHz, 5 GHz, and 6 GHz radios for maximum throughput and reduced interference
- 2x2:2 MU-MIMO technology with OFDMA, transmit beamforming, and up to 1024-QAM modulation for high-density environments
- Dedicated tri-band scanning radio providing real-time Air Marshal wireless intrusion prevention, RF analytics, and automatic channel optimization without impacting client traffic
- IP67-rated weatherproof enclosure designed for extreme outdoor conditions from -40°C to +65°C with 165 mph wind gust tolerance
- Integrated GPS and AFC support for standard power 6 GHz outdoor operation with optional external active GPS/GNSS antenna
- Separate 2.4 GHz IoT radio supporting BLE beacon services and Zigbee protocol for location-based services and smart building applications
- 2.5 Gigabit Ethernet mGig uplink for full multi-gigabit wireless throughput support
- Cloud-managed via Meraki dashboard with zero-touch provisioning, automatic firmware updates, and centralized network-wide visibility
- Integrated Layer 7 deep packet inspection for application-based QoS, traffic shaping, and bandwidth limits
- Advanced security with WPA3-Enterprise, 192-bit encryption, 802.1X authentication, Active Directory integration, and guest isolation
- Support for mesh networking mode for wireless backhaul in areas where cabling is not feasible
- Comprehensive RF management with automatic channel selection, transmit power control, and client load balancing

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Wi-Fi Standard: 802.11ax (Wi-Fi 6E), tri-band concurrent operation
- Radio Configuration: Three 2x2:2 client-serving radios (2.4 GHz, 5 GHz, 6 GHz), one dedicated tri-band scanning radio, one 2.4 GHz IoT radio
- Aggregate Data Rate: Up to 3.9 Gbps tri-radio combined throughput
- Uplink Interface: 1x 2.5 Gigabit Ethernet (mGig) RJ-45 port
- Power: PoE+ (802.3at), up to 25W maximum consumption
- Antenna Connectors: 4x N-type tri-band antenna ports, 1x RP-SMA GPS/GNSS antenna connector (external antennas sold separately)
- Environmental Rating: IP67 weatherproof, operating temperature -40°C to +65°C, wind resistance up to 165 mph gusts
- Dimensions: 245 x 245 x 63.5 mm (9.6 x 9.6 x 2.5 inches)
- Weight: 1.5 kg (3.3 lbs)
- Management: Meraki cloud dashboard, requires Meraki license
- IoT Capabilities: Integrated BLE and Zigbee radio for IoT device connectivity
- GPS: Built-in GPS antenna with optional external active GPS/GNSS antenna support for AFC compliance
- Security Features: WPA3-Enterprise, 192-bit encryption, AES hardware-based encryption, integrated Layer 7 firewall

FAQs

Q: Does the CW9163E include antennas?
A: No, external antennas are sold separately. The CW9163E features 4x N-type tri-band antenna connectors and is compatible with Cisco tri-band outdoor antennas including omnidirectional and directional patch options such as CW-ANT-O1-NS-00 and CW-ANT-D1-NS-00.

Q: Can this access point operate in 6 GHz outdoors?
A: Yes, when regulatory approval is received in your region. The CW9163E includes built-in GPS for Automated Frequency Coordination (AFC) compliance, enabling standard power operation in the 6 GHz band outdoors where AFC is approved.

Q: What is the difference between CW9163E-MR and other Catalyst 9163E models?
A: The CW9163E-MR model comes with Meraki cloud management licensing. The Catalyst 9163E hardware platform supports both cloud management via Meraki dashboard and on-premises management via Catalyst 9800 controllers, with the ability to switch between modes.

Q: What power source is required for the CW9163E?
A: The CW9163E requires PoE+ (802.3at) delivering up to 25W. It can operate in degraded mode with 802.3af PoE, but full functionality including all radios requires PoE+ or higher. Power injectors and DC adapters are sold separately.

Q: What IoT protocols does the CW9163E support?
A: The CW9163E includes a dedicated 2.4 GHz IoT radio supporting Bluetooth Low Energy (BLE) for beacon and location services, and Zigbee for smart building and industrial IoT applications, enabling seamless integration of IoT devices without impacting client Wi-Fi performance.
