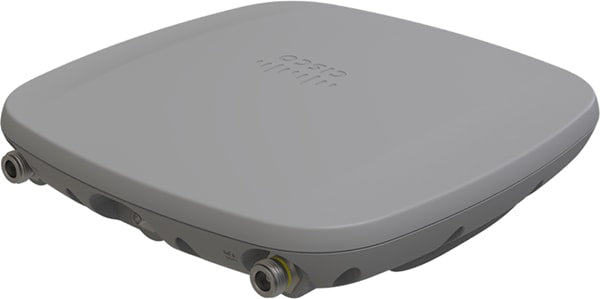

• Cisco CW9163E-Z Wi-Fi 6E outdoor tri-band access point with external antennas
1 1

Cisco

Cisco CW9163E-Z | Catalyst 9163E Wi-Fi 6E Tri-Band Outdoor Access Point

CW9163E-Z

Stock Status: Enquire

$2,374.76 inc. GST
$2,158.87 ex. GST
Sale Sold out
Shipping calculated at checkout.

Description

The Cisco CW9163E-Z is a rugged outdoor Wi-Fi 6E access point designed for demanding enterprise environments including campuses, stadiums, and municipal networks. Featuring tri-band 2x2:2 concurrent radios across 2.4 GHz, 5 GHz, and 6 GHz bands with a combined 3.9 Gbps aggregate throughput, this IP67-rated access point delivers high-density coverage in challenging outdoor conditions. With built-in GPS for 6 GHz AFC compliance, IoT radio support for BLE and Zigbee, and cloud-managed deployment flexibility, it extends next-generation wireless connectivity to outdoor spaces.

Features

Wi-Fi 6E tri-band operation with simultaneous 2.4 GHz, 5 GHz, and 6 GHz radios
- 2x2:2 MU-MIMO on all three client-serving radios for up to 3.9 Gbps aggregate throughput
- Dedicated 1x1 tri-band scanning radio for Air Marshal WIDS/WIPS, spectrum analysis, and location analytics
- Built-in 2.4 GHz IoT radio supporting BLE, Zigbee, and Thread for converged wireless and IoT services
- Integrated GNSS receiver for 6 GHz AFC compliance enabling standard power outdoor operation
- IP67-rated weatherized enclosure for operation in temperatures from -40°C to 65°C
- Multigigabit 2.5 Gbps Ethernet uplink with 802.3at PoE+ support
- External N-type antenna connectors supporting a variety of tri-band antenna options
- Transmit beamforming and enhanced receive sensitivity for extended coverage and higher client density
- WPA3 and 192-bit encryption with AES hardware acceleration
- 802.1X Enterprise authentication and Active Directory integration
- Cloud-based RF optimization with automatic channel and power assignment
- Layer 7 application visibility and traffic shaping with DSCP tagging
- Guest access with one-click isolation and captive portal support
- Wireless mesh support for flexible outdoor deployments
- Automatic cloud provisioning and firmware updates via Meraki Dashboard
- Compatible with MA-MNT-MR-16 and AIR-MNT-VERT1 mounting kits for wall and pole installations

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

Wi-Fi Standard: 802.11ax (Wi-Fi 6E)
- Radio Configuration: Tri-band concurrent 2x2:2 MU-MIMO (2.4 GHz + 5 GHz + 6 GHz)
- Aggregate Frame Rate: Up to 3.9 Gbps
- Additional Radios: 1x1 tri-band scanning radio, 2.4 GHz IoT radio (BLE/Zigbee/Thread)
- Uplink: 1x 100M/1G/2.5G multigigabit Ethernet port (RJ-45)
- Power: 802.3at PoE+ (up to 25W), supports 802.3af degraded mode
- Antenna Connectors: 4x N-type female external antenna ports (antennas sold separately)
- GNSS: Built-in GPS receiver with RP-SMA connector for 6 GHz AFC compliance
- Environmental Rating: IP67 outdoor-rated weatherized enclosure
- Operating Temperature: -40°C to 65°C (-40°F to 149°F) without solar derating
- Dimensions: 9.64 x 9.64 x 2.5 inches (245 x 245 x 63.5 mm)
- Management: Cloud-managed via Meraki Dashboard or on-premises
- Security: WPA3, 192-bit encryption, AES hardware-based encryption, 802.1X authentication
- Console Port: RJ-45 management console

FAQs

Q: Does the CW9163E-Z require external antennas?
A: Yes, the CW9163E-Z requires external tri-band antennas sold separately. Four N-type antenna connectors support various Cisco-certified omnidirectional, sector, and patch antennas for flexible coverage patterns. Select antennas based on deployment requirements such as pole-mount, building-mount, or mesh configurations.

Q: What is the purpose of the built-in GPS receiver?
A: The integrated GNSS receiver enables 6 GHz AFC (Automated Frequency Coordination) compliance by reporting location data to AFC services. This allows the access point to operate at standard power levels in the 6 GHz band for outdoor deployments, unlocking the full potential of Wi-Fi 6E spectrum with increased range.

Q: Can the CW9163E operate with 802.3af PoE?
A: Yes, the CW9163E will operate in degraded mode with 802.3af PoE (15.4W), but 802.3at PoE+ is recommended for full performance. With PoE+, the access point achieves maximum RF transmit power on all radios and supports 2.5 Gbps Ethernet uplink speeds versus 1 Gbps on lower power budgets.

Q: What IoT protocols does the CW9163E support?
A: The CW9163E includes a dedicated 2.4 GHz 802.15.4 IoT radio supporting Bluetooth Low Energy (BLE), Zigbee, and Thread protocols. This enables simultaneous operation of IoT services like asset tracking, BLE beacon broadcasting, and environmental sensor integration without impacting Wi-Fi client performance.

Q: Is the CW9163E suitable for mesh deployments?
A: Yes, the CW9163E supports wireless mesh networking for locations where wired backhaul is unavailable. For optimal mesh performance, ensure line-of-sight between access points and select appropriate directional antennas. The tri-band architecture allows dedicated wireless backhaul while maintaining client connectivity.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
