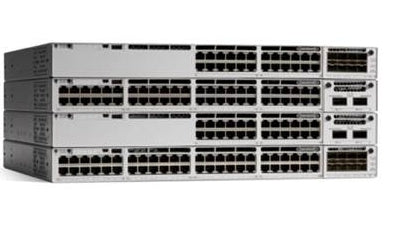

• Cisco Meraki C9300-48U-M 48-port UPOE switch with modular uplinks
1 1

Meraki

Meraki C9300-48U-M | Catalyst 9300-M 48-Port UPoE Switch, 1100W AC, Modular

C9300-48U-M

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki Catalyst 9300-M C9300-48U-M is a Layer 3, stackable 48-port Gigabit UPoE switch managed through the Meraki dashboard for cloud monitoring and configuration. It supplies up to 60W per port, includes a default 1100W AC power supply and accepts modular 10G or 40G uplinks sold separately. Hardware stacking, StackPower and hot-swappable fans and power supplies make it well suited to campus access deployments that need high-density PoE.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Managed from the Meraki dashboard with cloud monitoring and management
- Layer 3 switching with static routing, OSPFv2 and multicast routing (PIM-ASM)
- Virtual stacking supports thousands of switch ports in a single logical stack
- Adaptive Policy (requires Advanced licence)
- 802.1X RADIUS and MAB, DHCP snooping, Dynamic ARP Inspection, IPv4/IPv6 ACLs
- Support for up to 4,094 VLANs (1000 active with STP enabled)
- StackPower pools and distributes power across the stack
- Hot-swappable fans, power supplies and modular uplinks

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 48 x 1GbE RJ45 ports with UPoE (60W per port), IEEE 802.3bt
- Modular uplinks, 10G or 40G (sold separately)
- 2 x 120G hardware stack ports, up to 480 Gbps stacking bandwidth, up to 8 switches physically stacked
- 1 x dedicated management interface
- Switching capacity 256 Gbps, 480 Gbps with stacking
- Forwarding rate 190.48 Mpps
- Default power supply PWR-C1-1100WAC-P-M, dual hot-swap power supply bays
- PoE budget 822W with primary power supply, 1800W with secondary power supply
- Power load idle/max 145 / 844.9 W
- 1U rack mount, 4.4 x 44.5 x 48.8 cm, 7.72 kg
- 3 hot-swap fans
- Operating temperature -5°C to 45°C, humidity 5 to 90%
- StackPower in a ring topology, up to 4 switches

FAQs

Q: Does the C9300-48U-M include uplink modules?
A: No. The switch has a modular uplink bay and the 10G or 40G uplink modules are sold separately.

Q: How much PoE power does it provide?
A: All 48 ports support UPoE at up to 60W per port. The PoE budget is 822W with the primary power supply and 1800W when a secondary power supply is fitted.

Q: How is this switch managed?
A: It runs in Meraki-managed mode and is configured and monitored from the Meraki dashboard.

Q: Can multiple units be stacked?
A: Yes. Two 120G stack ports deliver up to 480 Gbps of stacking bandwidth, with up to 8 switches physically stacked. StackPower can pool power across up to 4 switches.

Q: Which power supply is fitted by default?
A: The default power supply is the PWR-C1-1100WAC-P-M 1100W AC unit, and the chassis has two hot-swap power supply bays.
