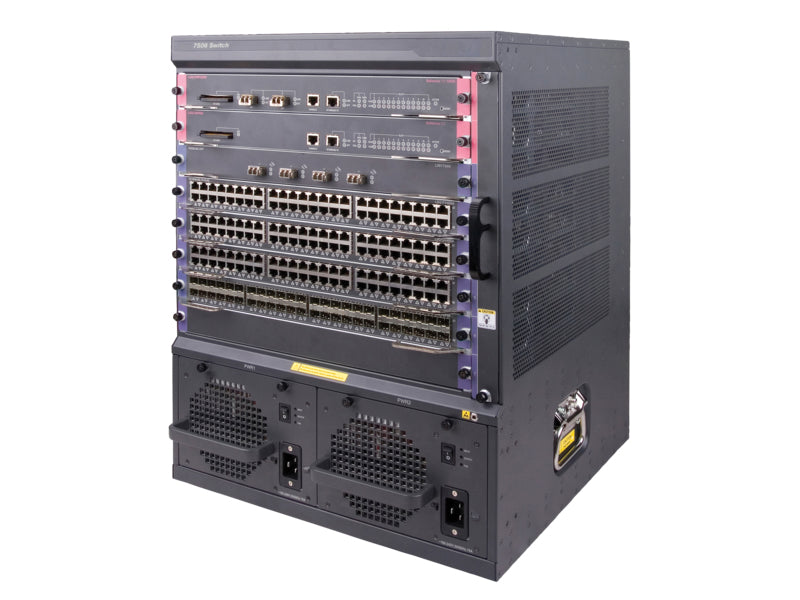

• HPE JD239C FlexNetwork 7506 chassis rack with 13U 6 slots and redundant PSUs
1 1

HPE

HPE JD239C | FlexNetwork 7506 13U Modular Switch Chassis, 6 I/O Slots

JD239C

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The HPE FlexNetwork 7506 is an 8-slot, 13U horizontal modular chassis switch from the FlexNetwork 7500 series. It is built for enterprise campus LAN core, aggregation and wiring-closet edge deployments, including high-density PoE/PoE+ for IP phones, cameras and IoT devices, and integrated-services networks.

The chassis provides 6 I/O module slots and 2 fabric slots. Depending on the modules fitted, it scales to 288 Gigabit Ethernet or autosensing 10/100/1000 ports, 96 1/10GbE ports, 48 10GbE ports or 24 40GbE ports, or a combination. Switching capacity reaches up to 4,160 Gbps (2.4 Tbps ASIC), with up to 160 Gbps per slot and up to 2,380 Mpps packet performance. PoE/PoE+ delivery runs up to 1440 W per slot, module dependent. It takes up to 2 redundant AC or DC power supplies, and Intelligent Resilient Fabric (IRF) lets up to four chassis operate as a single switch. The Layer 2 and Layer 3 feature set, including IPv6, MPLS and VXLAN, is licence-free.

The chassis needs at least one power supply and at least one fabric/main processing module (SRPU) to operate. It takes 7500-series I/O modules (Gigabit, 10GbE, 40GbE, PoE/PoE+ and service modules) and 7500-series fabric modules, and is managed with HPE Intelligent Management Center (IMC).

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Full Layer 3 networking with MPLS and Layer 2/Layer 3 VXLAN for campus networks
- 40GbE connectivity, wire-speed 10GbE and high-density PoE/PoE+ through I/O modules
- Intelligent Resilient Fabric (IRF) virtualises up to four chassis under a single management interface
- Security including 802.1X, MAC and Web authentication, MACsec, DHCP Snooping, IP Source Guard, ARP Protection and ACLs
- Licence-free Layer 2 and Layer 3 feature set with IPv6, MPLS and robust QoS
- Central management with HPE Intelligent Management Center, plus port and traffic mirroring, RMON and sFlow

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 8-slot horizontal chassis, 13U
- Module slots: 6 I/O module slots and 2 fabric slots
- Maximum port density: 288 Gigabit Ethernet or autosensing 10/100/1000 ports, 96 1/10GbE ports, 48 10GbE ports or 24 40GbE ports, or a combination
- Switching capacity: up to 4,160 Gbps (2.4 Tbps ASIC)
- Per-slot switching capacity: up to 160 Gbps (with two SRPUs)
- Packet performance: up to 2,380 Mpps
- PoE/PoE+ power: up to 1440 W per slot, module dependent
- Power supplies: up to 2, redundancy supported
- Input voltage: 100-120 / 200-240 VAC or -48 to -60 VDC, depending on power supply chosen
- Interfaces: 1 x management, 1 x modem, 1 x USB
- Management: IMC, command-line interface, web browser, SNMP, Telnet, serial RS-232C out-of-band
- Layer 3 routing: OSPF, BGP-4, IS-IS, RIP-1/2, IGMPv2/v3, VRRP, PIM-SM/DM, GRE, OSPFv3
- Authentication: SSH, SSH2, RADIUS, TACACS+, EAP
- Operating temperature: 0 to 45 C
- Operating humidity: 10 to 95% (noncondensing)
- Dimensions: 43.6 x 42 x 57.5 cm (W x D x H)
- Weight: 93.9 kg

FAQs

Q: Does the FlexNetwork 7506 need a software licence?
A: No. The Layer 2 and Layer 3 feature set, including IPv6, MPLS and QoS, is licence-free. Optional management software such as HPE IMC is separate.

Q: What is needed to make the chassis operational?
A: It needs at least one power supply and at least one fabric/main processing module (SRPU). I/O modules are then added to provide the switch ports.

Q: What power supplies does it use?
A: It takes up to 2 redundant power supplies in AC (100-120 / 200-240 VAC) or DC (-48 to -60 VDC) form, chosen according to your site power and PoE/PoE+ requirements.

Q: How does the 7506 differ from the 7510 and 7503 chassis?
A: The 7506 (JD239C) is a 13U chassis with 6 I/O slots and 2 fabric slots. The 7510 (JD238C) offers 10 slots and the 7503 (JD240C) offers 3 slots.

Q: Can multiple chassis be combined?
A: Yes. IRF virtualises up to four chassis so they operate as one switch under a single management interface.
