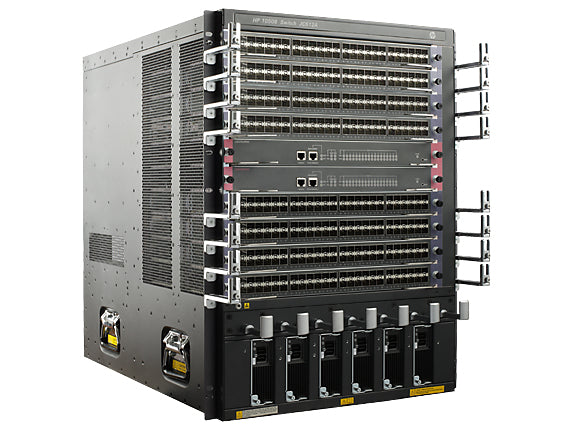

• HPE JC612A 14U modular switch chassis with black router ports
1 1

HPE

HPE JC612A | FlexNetwork 10508 Modular Core Switch Chassis, 8 Slots, 14U

JC612A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The FlexNetwork 10508 is a 14U horizontal modular chassis from the HPE FlexNetwork 10500 series, built for enterprise campus core and data-centre aggregation. It uses a distributed Clos architecture designed for very low latency, high 1/10/40GbE density and resilient core deployments.

The chassis provides 8 interface module (LPU) slots, 2 management processing unit (MPU) slots and 4 switch fabric module (SFM) slots. Port density reaches up to 384 x 10GbE ports, 192 x 1/10GBASE-T ports or 64 x 40GbE ports, or a combination of these. Series switching capacity is up to 11.52 Tbps with latency of around 3 microseconds. It is a Layer 3 managed platform and supports IRF virtualisation of up to four chassis into a single fabric. Power supplies are available in AC (100-120/200-240 VAC) or DC (-48 to -60 VDC) variants, with redundant power supported.

The chassis takes HPE 10500 series MPUs, switch fabric modules, interface modules, power supplies and fan trays. The 10504 (JC613A), 10508-V (JC611A) and 10512 chassis share the same module family.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Distributed Clos (multistage) architecture for high-speed, non-blocking switching
- High 1/10/40GbE port density with 100GbE support and around 3 microsecond latency
- IRF virtualises up to four 10500 chassis into one switching and routing fabric
- Hardware-based MACsec support
- Redundant MPUs, switch fabric modules, power supplies and fan trays for high availability
- Supports IPv4/IPv6, MPLS, VRRP, OSPF, BGP, IS-IS, PIM, QoS, ACLs, sFlow and port mirroring
- Managed via CLI, SNMP and HPE IMC

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Chassis: 14U horizontal, rack-mountable
- Slots: 8 I/O (LPU) slots, 2 MPU slots, 4 SFM slots
- Maximum port density: 384 x 10GbE, 192 x 1/10GBASE-T, or 64 x 40GbE (or a combination)
- Switching capacity: up to 11.52 Tbps (series)
- Switching fabric capacity: up to 13.72 Tbps
- Latency: 3 microseconds
- Device type: Layer 3 managed switch
- Processor: Dual Core MIPS @ 1.2 GHz
- Flash memory: 512 MB
- SDRAM: 8 GB DDR2
- Jumbo frame support: Yes
- Input voltage: 100-120 / 200-240 VAC or -48 to -60 VDC, depending on power supply chosen
- Power redundancy: Supported
- Operating humidity: 10 to 95% (non-condensing)
- Dimensions (W x D x H): approx. 440 x 660 x 620 mm
- Weight: approx. 56.7 kg
- Management: CLI, SNMP, Telnet, serial RS-232C console, HPE IMC

FAQs

Q: Does this chassis need a separate licence?
A: No separate licence is stated for the chassis itself. The software image comes with the management processing unit. Optional advanced features and IMC management software may be licensed separately.

Q: What power supplies does it use?
A: It takes HPE 10500 series power supplies in AC (100-120/200-240 VAC) or DC (-48 to -60 VDC) variants, with redundant power supported. Power draw depends on the installed modules and power supplies.

Q: Which modules does it work with?
A: It takes HPE 10500 series MPUs, switch fabric modules, interface (LPU) modules, power supplies and fan trays. The 10504 (JC613A), 10508-V (JC611A) and 10512 chassis share the same module family.

Q: Can multiple chassis be combined?
A: Yes. HPE Intelligent Resilient Fabric (IRF) can virtualise up to four 10500 chassis into a single switching and routing fabric.

Q: How does it differ from the 10508-V?
A: This is the horizontal 14U chassis with 8 LPU slots, 2 MPU slots and 4 SFM slots. The 10508-V (JC611A) is a sibling chassis in the same module family.
