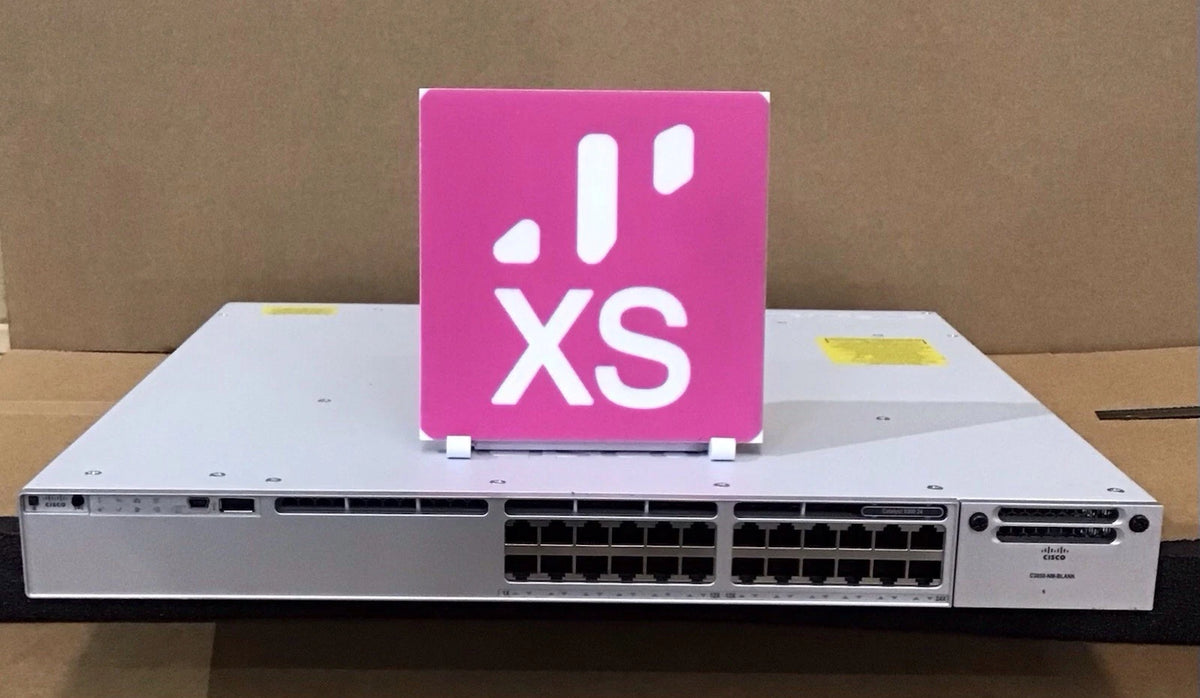

• Silver-colored cisco catalyst 9300 24-port gigabit poe+ switch with multiple ethernet ports and blue led indicator strip

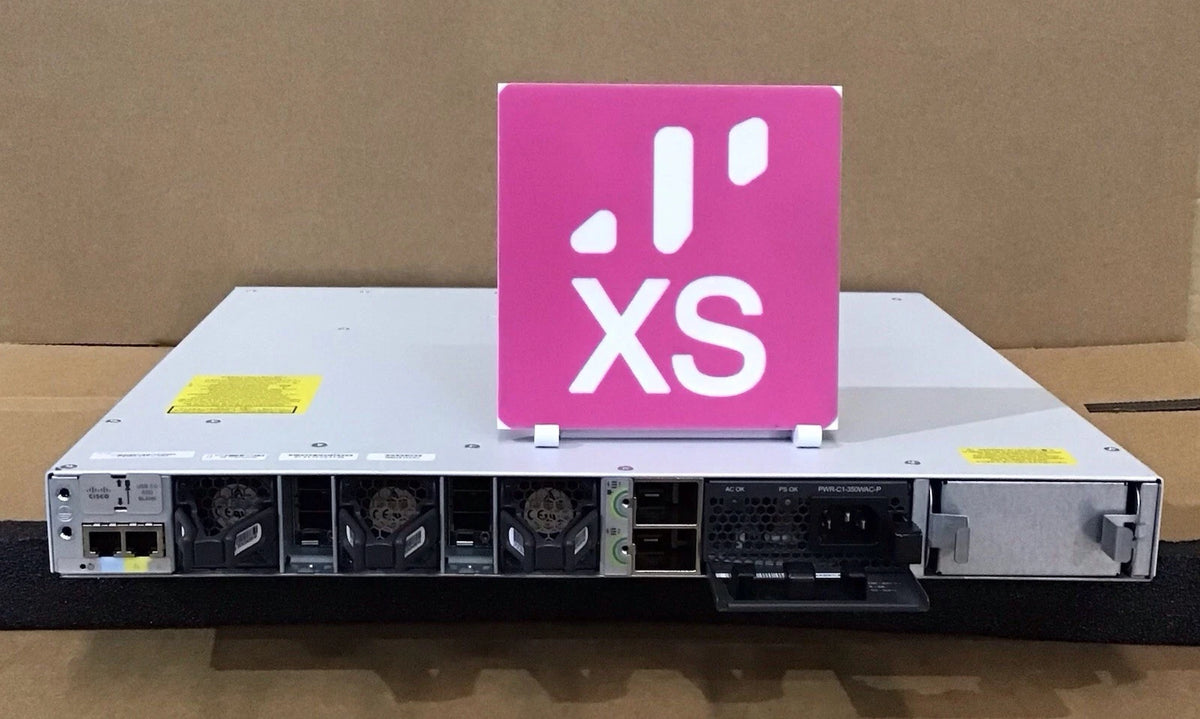

  • White cisco ucs x-series server with pink xs logo on top shown with cisco catalyst 9300 24-port gigabit switch modular uplink slot
1 3

Meraki

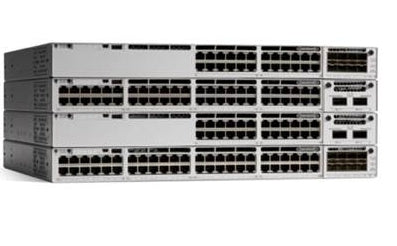

Meraki C9300-24T-M | Catalyst 9300-M 24-Port Gigabit Switch, 350W AC PSU

C9300-24T-M

Stock Status: Enquire

$5,075.00 inc. GST
$4,613.64 ex. GST
Sale Sold out
Shipping calculated at checkout.
Condition
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9300-M 24-port Gigabit switch is a data-only access switch managed through the Meraki cloud dashboard, with no PoE on its 24 RJ45 ports. It supports modular uplinks, dual 120G stacking ports and ships with a 350W AC power supply, with hot-swap dual PSU support. Suited to campus and branch access layers where cloud-managed switching and physical stacking of up to 8 units are required.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Managed via the Meraki Dashboard with zero-touch provisioning
- Adaptive Policy and Group Policy ACL segmentation
- Physical stacking of up to 8 switches, plus virtual stacking across many switches
- Layer 3 routing (static and dynamic), DHCP server and relay
- StackPower support
- Remote packet capture, cable testing and per-port and per-client usage statistics
- Requires a Meraki Enterprise/Advanced licence (LIC-C9300-24E-xY)
- Package includes power supply, 3 fans, rack mount brackets and screw kit

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 24 x 1GbE RJ45 ports, no PoE/UPoE
- Modular uplinks via network modules (SFP+/SFP28/QSFP+, e.g. 4x10G or 2x40G)
- 2 x 120G hardware stacking ports, 480 Gbps stacking bandwidth
- 1 dedicated management interface
- Switching capacity 208 Gbps
- Forwarding rate 154.76 Mpps
- Default power supply: 350W AC (PWR-C1-350WAC-P-M), hot-swap dual PSU supported
- 715W and 1100W PSU upgrades available
- Power load 79.2 W idle, 99 W maximum
- Dimensions 4.4 x 44.5 x 44.9 cm (1U rack mount)
- Weight 7.27 kg
- 3 hot-swap fans
- Operating temperature -5°C to 45°C, humidity 5 to 90%
- MTBF 314,790 hours at 25°C

FAQs

Q: Does this switch provide PoE?
A: No. The C9300-24T-M is a data-only model with 24 x 1GbE RJ45 ports and no PoE or UPoE. PoE-capable variants of the Catalyst 9300-M family are available as separate SKUs.

Q: Are the uplinks fixed or modular?
A: The uplinks are modular. They use network modules that accept SFP+, SFP28 or QSFP+ optics, for example 4x10G or 2x40G configurations. The uplink module is selected separately.

Q: How is this switch managed?
A: It is cloud-managed through the Meraki Dashboard with zero-touch provisioning, and requires a Meraki Enterprise/Advanced licence (LIC-C9300-24E-xY) to operate.

Q: Can multiple units be stacked?
A: Yes. It has two 120G hardware stacking ports with 480 Gbps stacking bandwidth, supporting physical stacks of up to 8 switches. StackPower is also supported.

Q: What power supply is included and can it be upgraded?
A: The default power supply is the 350W AC unit (PWR-C1-350WAC-P-M). The chassis supports hot-swap dual PSUs, and 715W and 1100W PSU upgrades are available.
