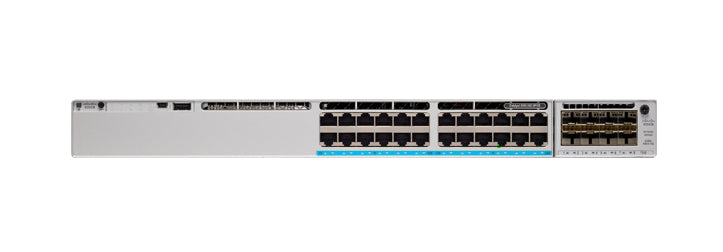

• Cisco Meraki C9300-24P-M 24-port PoE+ switch with modular uplinks

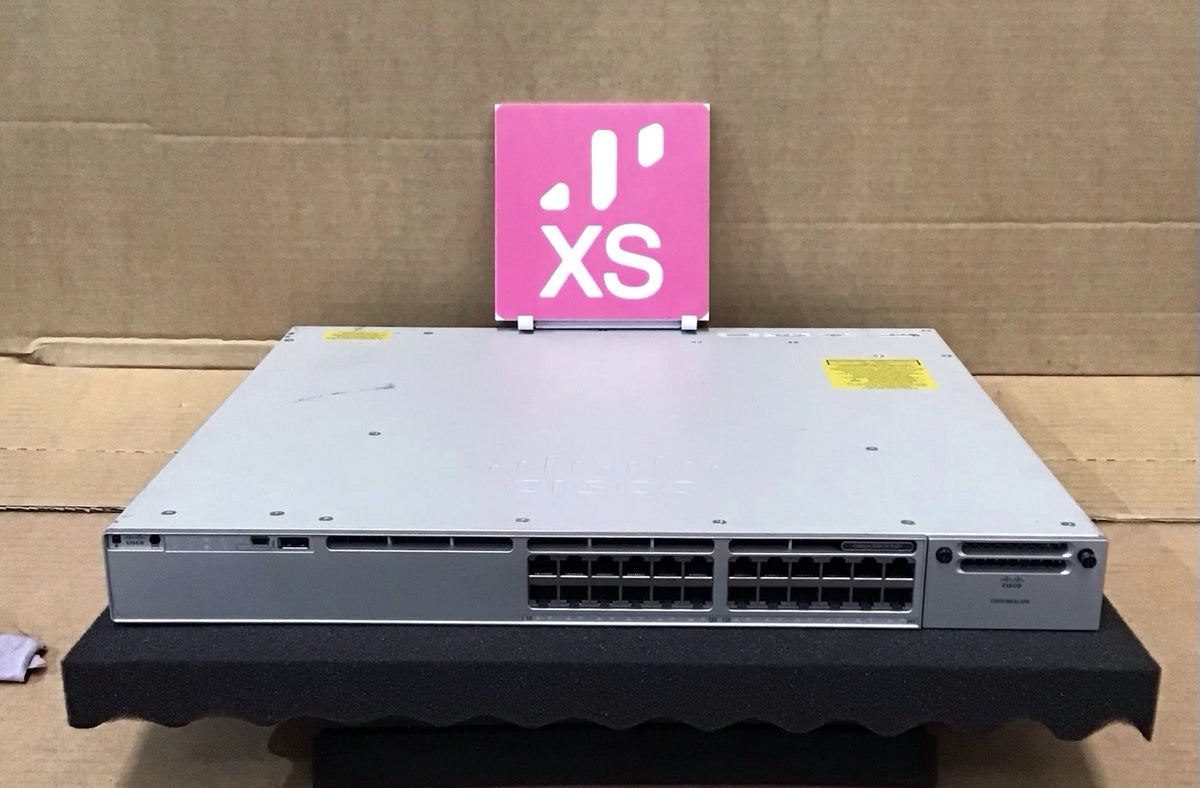

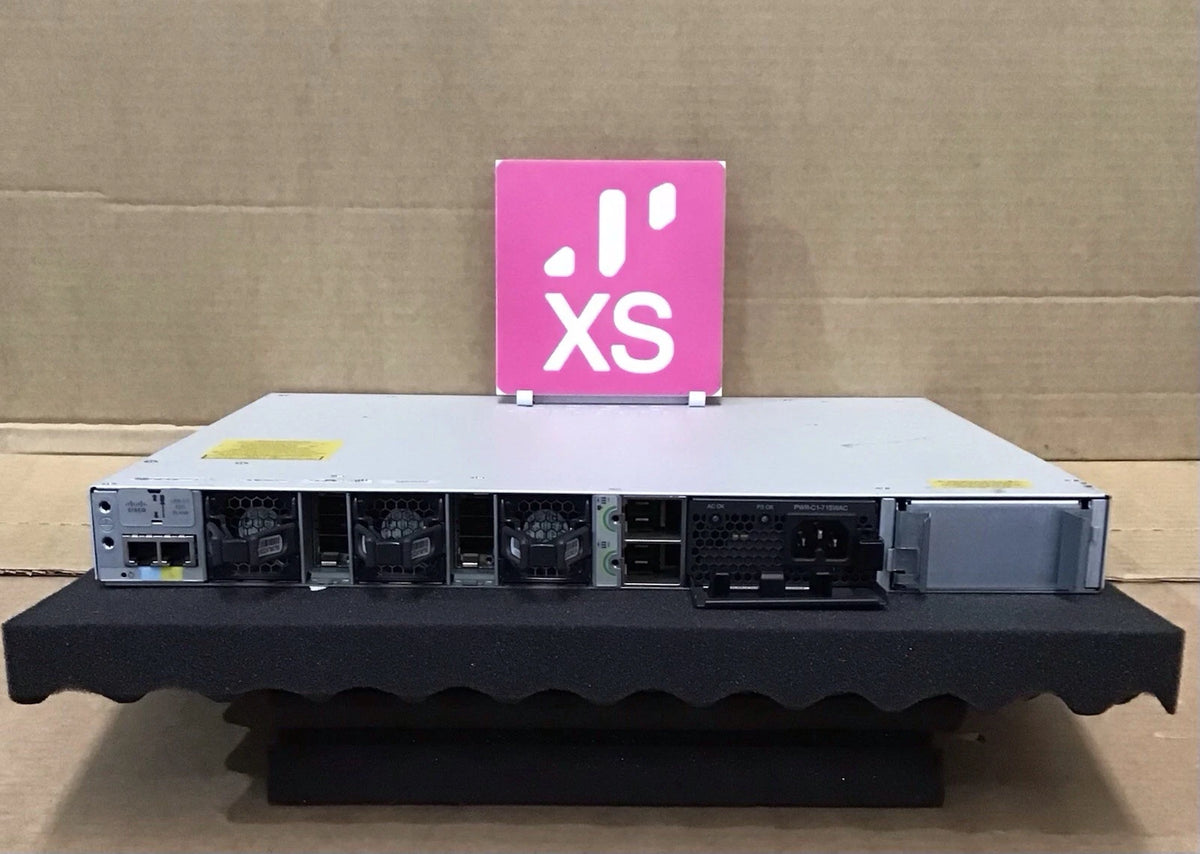

  • Silver cisco c9300-24p-e catalyst 9300 switch with 24 gigabit poe+ ports and pink xs logo on top

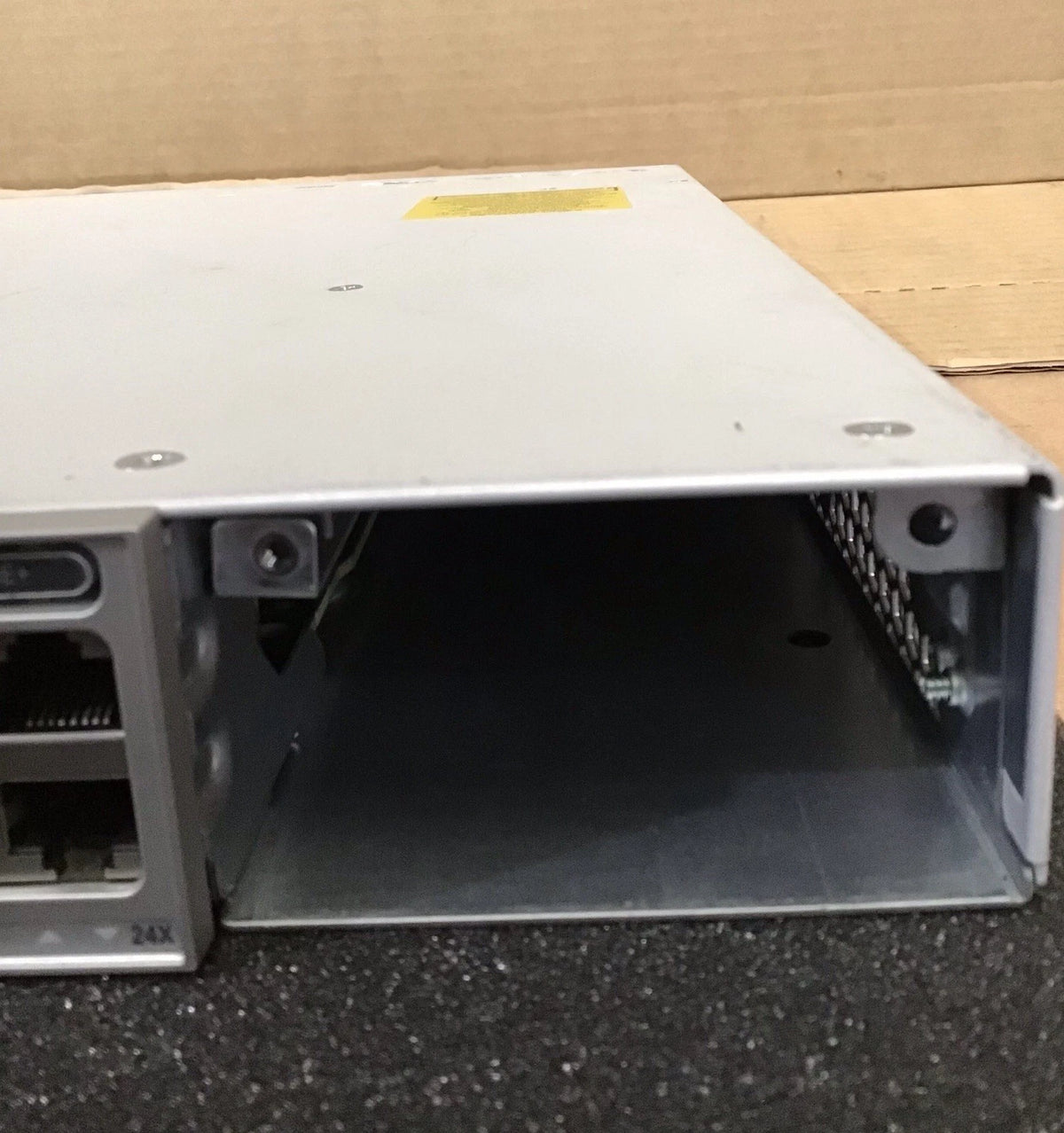

  • Silver metallic cisco c9300-24p-e 24-port gigabit poe+ switch rear view with modular 24-port ethernet switch module
1 4

Meraki

Meraki C9300-24P-M | Catalyst 9300-M 24-Port PoE+ Switch, 445W, 715W PSU

C9300-24P-M

Stock Status: Enquire

$5,830.00 inc. GST
$5,300.00 ex. GST
Sale Sold out
Shipping calculated at checkout.
Condition
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The 24-port Gigabit PoE+ Layer 3 stackable access switch from the Catalyst 9300-M range, managed through the Meraki dashboard with zero-touch provisioning. It provides a 445W PoE budget with the default 715W AC power supply and modular uplinks for 10G or 40G connectivity, with uplink modules sold separately. Suited to enterprise and campus access layers that need centralised cloud management, physical stacking of up to 8 switches and dependable PoE+ for access points, phones and cameras.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Managed through the Cisco Meraki Dashboard with zero-touch provisioning
- Layer 3 routing, both static and dynamic
- Virtual stacking, plus physical stacking of up to 8 switches
- StackPower in a ring topology
- Adaptive Policy (Advanced licence required)
- Detailed per-port and per-client usage statistics
- Remote diagnostics including packet capture, cable testing and topology discovery
- Automatic firmware upgrades with scheduling control
- SNMP and Syslog support
- DHCP server and relay, DHCP snooping, DAI and ACLs

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 24 x 1GbE RJ45 ports with 30W PoE+
- PoE budget of 445W with the default 715W AC power supply (PWR-C1-715WAC-P-M), up to 720W with an optional secondary PSU
- Modular uplinks, 40G or 10G options, uplink modules sold separately
- Switching capacity of 208 Gbps
- Stacking bandwidth of 480 Gbps
- Forwarding rate of 154.76 Mpps
- 2 x 120G hardware stack ports and 1 dedicated management interface
- StackPower support
- Dual hot-swap power supplies and 3 hot-swap fans
- 1U rack mount, 4.4 x 44.5 x 44.9 cm, 7.4 kg
- Operating temperature of -5°C to 45°C, humidity of 5 to 90%
- MTBF of 299,000 hours at 25°C
- MAC address table of 32,000 entries and 4,094 VLANs with trunking (1,000 active VLANs)

FAQs

Q: How is the C9300-24P-M managed?
A: It runs in Meraki-managed mode through the Cisco Meraki Dashboard, with zero-touch provisioning, remote diagnostics and scheduled automatic firmware upgrades.

Q: Does it include uplink modules?
A: No. The switch has modular uplinks with 10G and 40G options, and the uplink modules are sold separately.

Q: What is the PoE budget?
A: The default 715W AC power supply provides a 445W PoE+ budget across the 24 ports at up to 30W each, rising to 720W with an optional secondary power supply.

Q: Can multiple switches be stacked?
A: Yes. The switch supports physical stacking of up to 8 units over its 2 x 120G stack ports, with 480 Gbps of stacking bandwidth, as well as virtual stacking and StackPower.

Q: Does it support Layer 3 routing?
A: Yes. It supports both static and dynamic Layer 3 routing, which makes it suitable for campus access and distribution roles.
