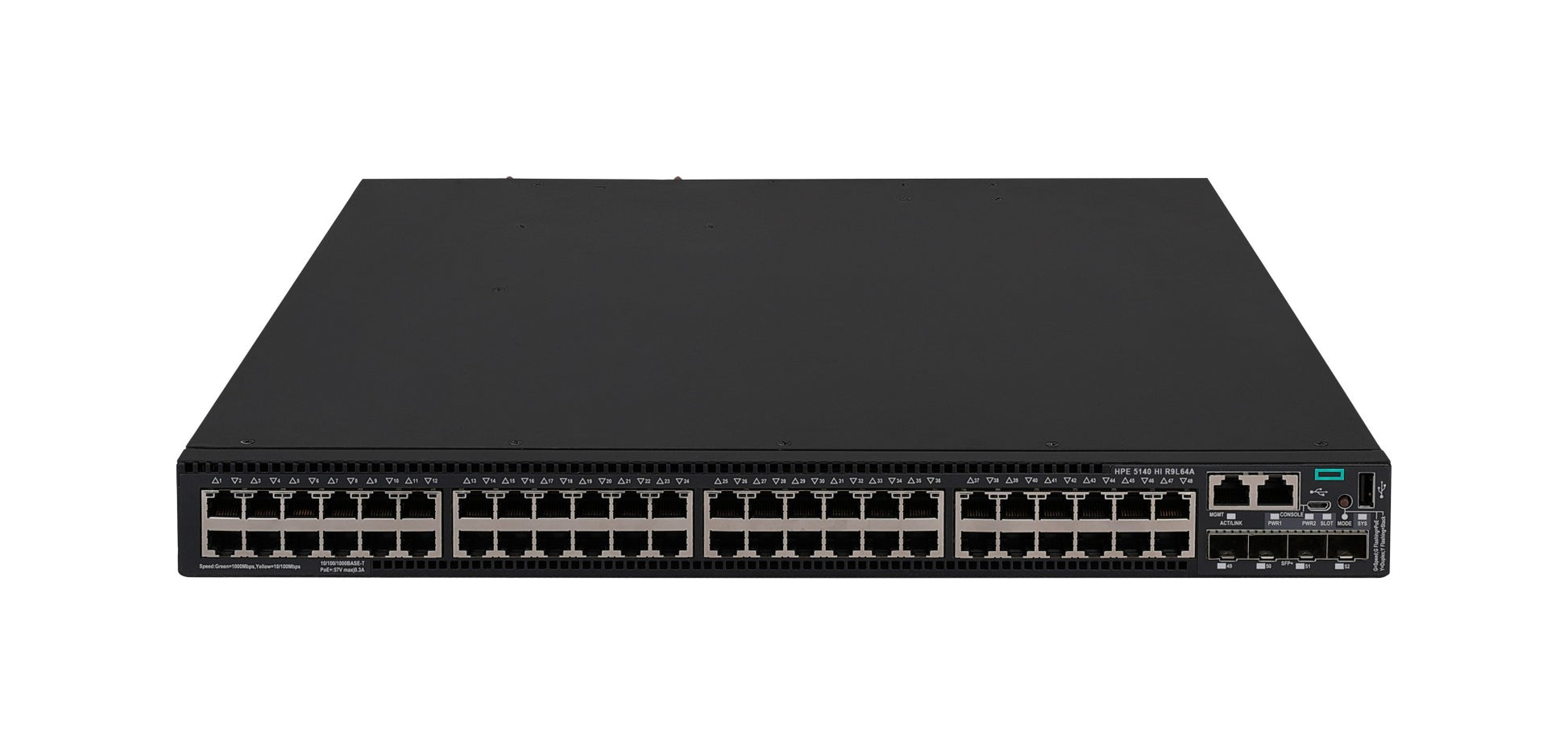

• HPE R9L64A black Cisco-style switch with 48x1G PoE+ ports and 4x10G uplinks
1 1

HPE

HPE R9L64A | 5140 HI 48-Port PoE+ Switch, 4x 10G SFP+, 1-Slot

R9L64A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The HPE 5140 HI is a Layer 3-capable Gigabit access switch running Comware, built for the access layer of medium and large enterprise campus networks. Its 48 PoE+ ports suit voice, video, wireless access points and IoT devices, while IRF and DRNI support resilient, virtualised designs.

This SKU provides 48 autosensing 10/100/1000 RJ-45 PoE+ (IEEE 802.3at) ports, four SFP+ 10GbE uplinks and one port expansion module slot. It delivers 336 Gbps of routing and switching capacity and 180 Mpps of throughput in a 1U, 19-inch rack-mount chassis. Routing table size is 8K and the MAC table holds 32K entries. It runs the Comware L3 feature set, and SmartMC management of edge devices is included at no additional cost. The 48-port PoE+ configuration with four SFP+ uplinks and an expansion slot separates it from the 24-port and non-PoE models in the range.

The chassis has two power supply slots, with at least one required. Main system supplies include the X361 150W AC (JD362B) and 48-60VDC (JD366B), and PoE supplies include the X362 720W AC (JG544A) and X362 1110W AC (JG545A). The expansion slot accepts modules including R9L65A, JH157A, S0T02A, S0T04A, S0T05A, S0T06A and S6C30A1. The SFP+ ports support HPE X130 10G SFP+ optics, X240 10G DAC cables and X2A0 10G AOCs.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Layer 3 routing with OSPF v2/v3, VRRP/VRRPE, RIP and routed ports
- IRF (Intelligent Resilient Fabric) for resilient switch virtualisation
- DRNI combines multiple switches into one distributed-relay system for higher bandwidth and resiliency
- Hardware-based MACsec link encryption, with an optional MACsec module available
- In Service Software Upgrade (ISSU) to reduce downtime during maintenance
- iNQA for packet loss and application performance visibility
- SmartMC centralised management of edge devices at no additional cost
- OpenFlow 1.3 support for SDN
- Energy Efficient Ethernet (IEEE 802.3az)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Access ports: 48 x 10/100/1000 RJ-45 PoE+ (IEEE 802.3at)
- Uplink ports: 4 x SFP+ 10GbE
- Expansion: 1 x port expansion module slot
- Management ports: 1 x serial console (RJ-45 or mini-USB), 1 x RJ-45 out-of-band management, 1 x USB 2.0
- Routing/switching capacity: 336 Gbps
- Throughput: 180 Mpps
- Latency: less than 5 µs (1000 Mb), less than 3 µs (10 Gbps)
- Routing table size: 8K
- MAC address table size: 32K
- Memory: 2 GB SDRAM, 4 MB packet buffer, 512 MB flash
- Power supply slots: 2 (minimum 1 required)
- Input voltage: 100-240 VAC or -48 to -60 VDC, depending on PSU
- Maximum power rating: 1742 W (dual AC)
- Maximum heat dissipation: 112 to 5943 BTU/hr depending on PSU configuration
- Fan trays: 2, airflow side to back
- Dimensions (W x D x H): 44.00 x 46.00 x 4.36 cm, 1U
- Weight: up to 9.6 kg
- Operating temperature: -5 to 45 C
- Operating humidity: 5% to 95%, noncondensing
- Storage temperature: -40 to 70 C
- Acoustic: 57.2 dB (low-speed fan), 68.9 dB (high-speed fan)
- Mounting: 19-inch EIA rack or equipment cabinet

FAQs

Q: Does this switch need a separate licence?
A: The base Comware L3 feature set does not require a separate licence. SmartMC management of edge devices is included at no additional cost.

Q: What power supplies does it need?
A: It needs one or two hot-swap power supplies. Main system options include the X361 150W AC (JD362B) and 48-60VDC (JD366B). For PoE+, the X362 720W AC (JG544A) and X362 1110W AC (JG545A) are listed. Maximum power rating is 1742 W with dual AC supplies.

Q: Which expansion modules fit the 1-slot bay?
A: The slot accepts R9L65A (2p 10GBASE-T MACsec), JH157A (2p SFP+ MACsec128), S0T02A, S0T04A (4p 1/10G SFP+), S0T05A (8p 1/2.5/5/10GBASE-T), S0T06A (2p SFP28) and S6C30A1 (8p SFP+ MACsec).

Q: Which optics and cables work in the SFP+ ports?
A: The SFP+ ports support HPE X130 10G SFP+ SR, LR, ER, LH and BiDi optics, X240 10G DAC cables and X2A0 10G AOCs. X120 1G SFP and X115 100M SFP transceivers are also supported.

Q: How does it differ from the other 5140 HI models?
A: This SKU is the 48-port PoE+ model with four SFP+ uplinks and one expansion slot. R9L61A is 24-port, R9L62A is 48-port non-PoE and R9L63A is 24-port PoE+.
