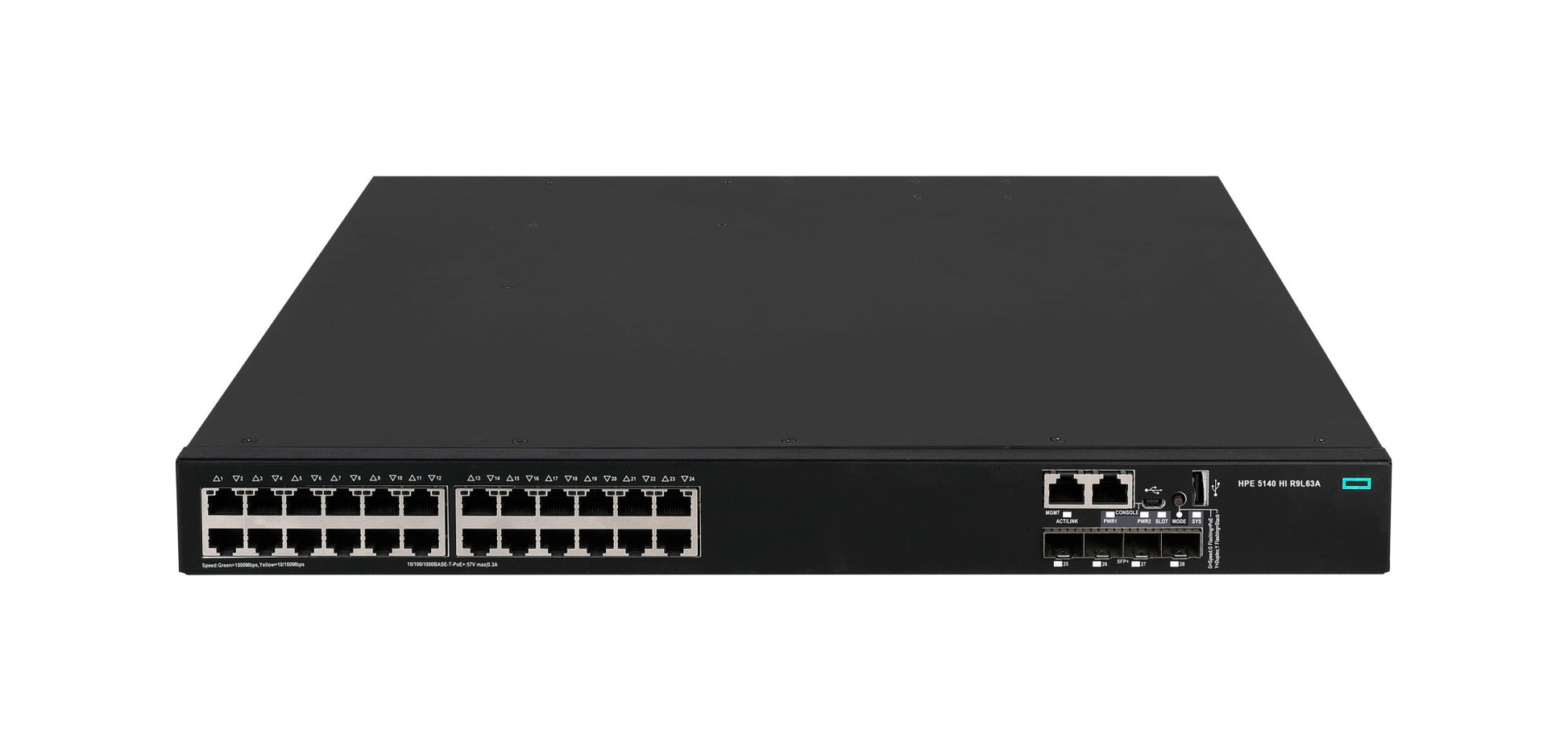

• HPE R9L63A 2530-48G PoE+ switch with 24x 1GbE ports and 4x 10Gb SFP+
1 1

HPE

HPE R9L63A | FlexNetwork 5140 24-Port PoE+ Switch, 720W, 4x 10G SFP+

R9L63A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The HPE FlexNetwork 5140 HI is a 1U managed Layer 3 access-layer switch running Comware, built for medium and large enterprise campus networks. It supplies PoE+ to IP phones, wireless access points and security cameras from 24 Gigabit ports, and supports IRF virtualisation of up to nine switches into one logical device.

The switch provides 24 autosensing 10/100/1000 RJ-45 PoE+ ports (IEEE 802.3at, up to 30 W per port) with a 720 W PoE budget, plus 4 x 10GbE SFP+ uplinks and one expansion module slot. Switching capacity is 288 Gbps with throughput of 180 Mpps. This is the 24-port PoE+ model with four SFP+ ports and a single expansion slot.

The chassis has two power supply slots for redundancy, and at least one power supply is required to run the unit. Maximum power consumption with PoE is 928 W. The SFP+ ports accept 10GbE optics and direct attach cables, and Smart MC and Intelligent Management Center (IMC) can be used for management.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Intelligent Resilient Framework (IRF) virtualises up to nine physical switches into one logical device
- IEEE 802.3at PoE+ delivers up to 30 W per port
- Flexible PoE allocation: automatic, 802.3af class, LLDP-MED or user-defined
- Layer 3 routing with static and RIP routing, ACLs and IPv6 support
- 10GbE SFP+ uplinks for high-speed aggregation
- DRNI link aggregation across multiple switches
- Dual power supply slots for redundancy and Energy Efficient Ethernet support
- Manageable with Smart MC and Intelligent Management Center (IMC)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Fixed ports: 24 x autosensing 10/100/1000 RJ-45 PoE+ (IEEE 802.3at)
- SFP+ ports: 4 x 10GbE
- Expansion: 1 x module slot
- Other ports: 1 x USB 2.0, 1 x RJ-45 management, 1 x RJ-45 RS-232 console
- Switching capacity: 288 Gbps
- Throughput: 180 Mpps
- PoE budget: 720 W
- Maximum power consumption (with PoE): 928 W
- Power supply slots: 2
- Dimensions (H x W x D): 43.4 x 439.9 x 460 mm
- Form factor: 1U rack-mountable
- Management: fully managed
- Operating system: Comware

FAQs

Q: What PoE budget does this switch provide?
A: It provides a 720 W PoE+ budget across its 24 ports, with up to 30 W available per port under IEEE 802.3at. Maximum power consumption with PoE is 928 W.

Q: Does the switch need a power supply installed?
A: Yes, at least one power supply is required to run the switch. The chassis has two power supply slots, so a second unit can be fitted for redundancy.

Q: How many switches can be combined with IRF?
A: Intelligent Resilient Framework (IRF) can virtualise up to nine physical switches into a single logical device, simplifying management and providing resilience.

Q: What can I connect to the SFP+ ports and expansion slot?
A: The four SFP+ ports accept 10GbE optics and direct attach cables. The single expansion slot takes a compatible expansion module for additional connectivity.

Q: Which operating system does this switch run?
A: It runs Comware, the operating system used across the HPE FlexNetwork 5140 HI series, with full Layer 3 managed functionality.
