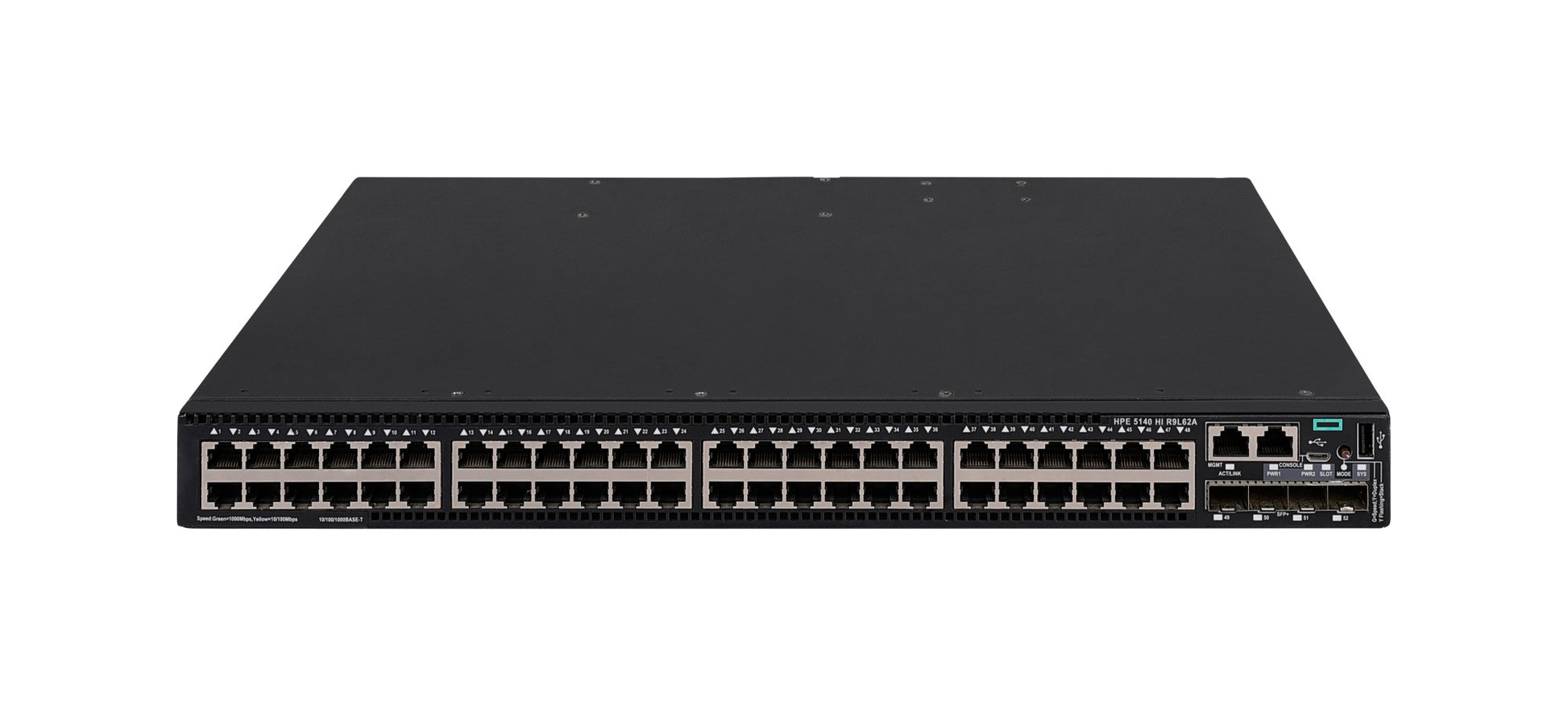

• HPE R9L62A 48-port 1GbE switch with 4x 10Gb SFP+ uplinks
1 1

HPE

HPE R9L62A | 5140 HI 48-Port Gigabit Switch, 4x 10G SFP+, 1 Slot

R9L62A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The HPE 5140 HI is a 1U Gigabit Ethernet access-layer switch from the Comware 5140 HI series. It is built for the access layer of medium and large enterprise campus networks, where 10G uplinks and a flexible expansion slot are needed.

This non-PoE model provides 48 fixed 10/100/1000BASE-T RJ-45 ports and 4 x 1/10G SFP+ uplink ports, which also accept 1G SFP and SFP-GE-T modules. One module expansion slot allows additional port options. Switching capacity is 336 Gbps with throughput of 180 Mpps, supported by 2 GB SDRAM, a 4 MB packet buffer and 512 MB flash. It runs Comware with Layer 2 and lite Layer 3 routing, including OSPF v2/v3, RIP and VRRP, and carries an 8K routing table with a 32K MAC address table.

The chassis has two power supply slots, with at least one supply required. The X361 150W AC (JD362B) and X361 150W DC (JD366B) supplies are listed for this model. Expansion modules include R9L65A, JH157A, S0T02A, S0T04A, S0T05A, S0T06A and S6C30A1. It is managed with HPE IMC and SmartMC.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Layer 3 routing with OSPF v2/v3, VRRP, RIP and routed ports
- IRF (Intelligent Resilient Fabric) for improved resiliency
- DRNI to combine multiple physical switches into one virtual distributed-relay system
- iNQA for packet loss and application performance visibility
- In Service Software Upgrades (ISSU) to reduce downtime
- SmartMC centralised management of edge devices at no additional cost
- OpenFlow 1.3 SDN support
- Energy Efficient Ethernet (IEEE 802.3az) and hardware MACsec via add-on modules

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Fixed ports: 48 x RJ-45 10/100/1000BASE-T
- Uplink ports: 4 x 1/10G SFP+ (1G SFP and SFP-GE-T supported)
- Expansion: 1 x module slot
- PoE: Not supported (non-PoE model)
- Switching capacity: 336 Gbps
- Throughput: 180 Mpps
- Latency (1000 Mb): under 5 us
- Latency (10 Gbps): under 3 us
- Routing table size: 8K
- MAC address table size: 32K
- Memory: 2 GB SDRAM, 4 MB packet buffer, 512 MB flash
- Management ports: 1 console (RJ-45 or mini-USB), 1 RJ-45 out-of-band, 1 USB 2.0
- Power supply slots: 2 (minimum 1 required, AC or DC)
- Fan trays: 2 included, side to back airflow
- Input voltage: 100-240 VAC or -48 to -60 VDC depending on supply
- Maximum power rating: 96 W (dual DC)
- Idle power: 31 W (dual AC)
- Dimensions (W x D x H): 44.00 x 36.00 x 4.36 cm, 1U
- Weight: up to 7.0 kg
- Operating temperature: -5 to 45 C
- Operating humidity: 5% to 95%, noncondensing
- Storage temperature: -40 to 70 C
- Mounting: EIA standard 19-inch rack
- Safety and emissions: UL 60950-1, IEC 60950-1, AS/NZS 60950-1, RoHS, FCC Part 15 Class A, AS/NZS CISPR 32 Class A

FAQs

Q: Does this switch need a separate software licence?
A: No separate licence is stated for this model. SmartMC centralised management is included at no additional cost, and HPE IMC is available as a management option.

Q: What power supplies does it use?
A: It has two power supply slots with at least one supply required, either AC or DC. The X361 150W AC (JD362B) and X361 150W DC (JD366B) are the supplies listed for this non-PoE model.

Q: Which expansion modules fit the 1-slot expansion bay?
A: Listed modules are R9L65A (2-port 10GBASE-T MACsec), JH157A (2-port 10GbE SFP+ MACsec128), S0T02A (4-port 10/100/1000BASE-T plus 6 SFP), S0T04A (4-port 1/10G SFP+), S0T05A (8-port 1/2.5/5/10GBASE-T), S0T06A (2-port SFP28) and S6C30A1 (8-port SFP+ MACsec).

Q: Which optics work in the SFP+ uplink ports?
A: The SFP+ ports support X130 10G SFP+ modules such as JD092B (SR), JD094B (LR), JG234A (ER) and JG915A (LH80), plus X240 10G DAC cables and X2A0 10G AOCs. They also accept 1G SFP modules such as JD089B, JD118B and JD119B.

Q: How does this model differ from the PoE variants of the 5140 HI?
A: This SKU is the non-PoE version with 48 x 10/100/1000 ports and 4 x SFP+ uplinks. It has a maximum power rating of 96 W and does not supply power to connected devices.
