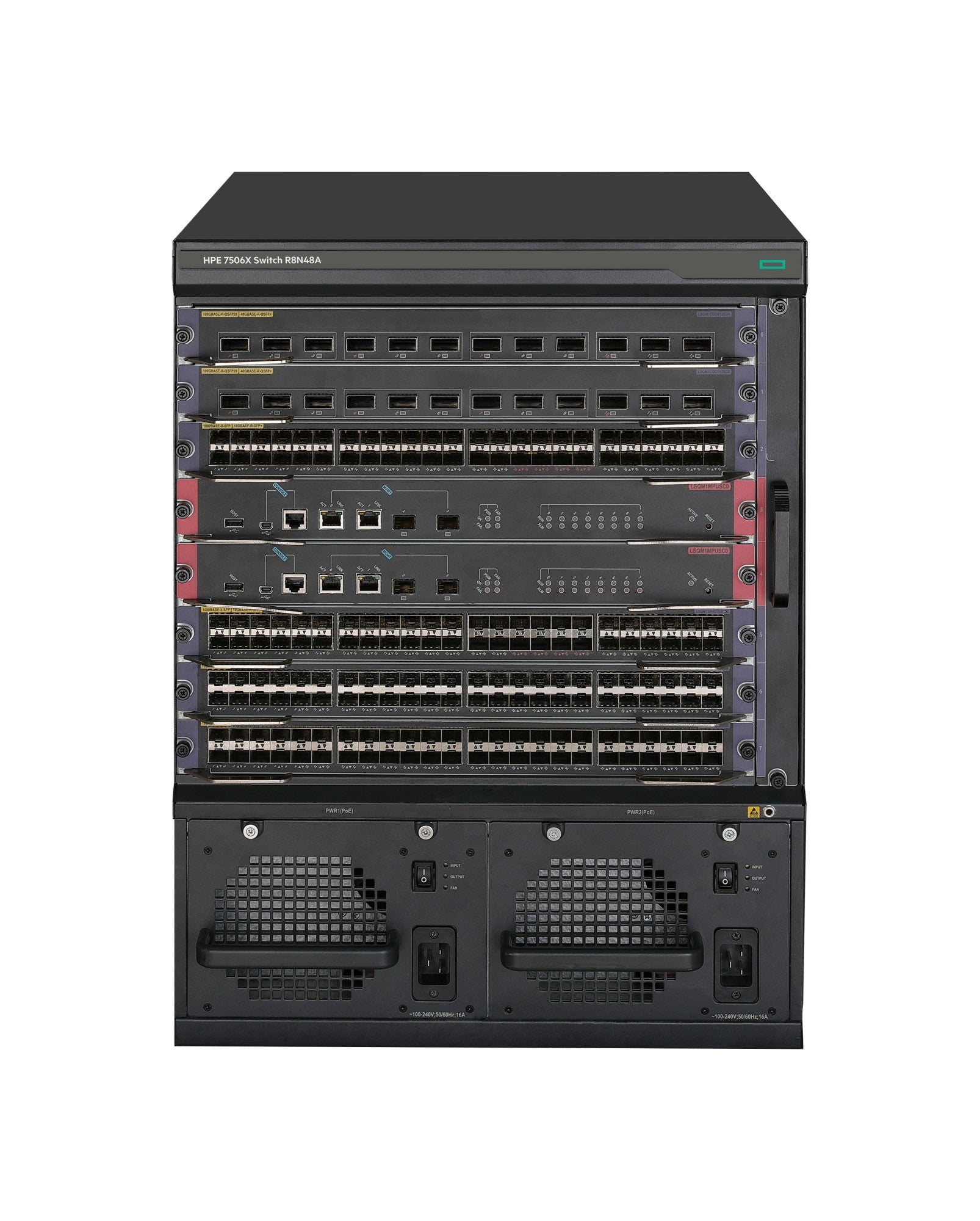

HPE R8N48A | Comware 7506X 6-Slot PoE Modular Chassis Switch

R8N48A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The 7506X is a 6-slot modular chassis switch from the HPE Networking Comware 7500X series, formerly FlexNetwork 7500X. It suits enterprise LAN core, aggregation and edge layers, as well as campus and data-centre deployments that need high-density 1/10/40/100GbE with PoE delivered through line cards.

Ports come from the MPU and LPU line cards you install. The chassis has 6 I/O module slots and can scale to 24 x 100GbE, 144 x 40GbE, 288 x 10GbE or 288 x 1GbE ports, or a combination, depending on the line cards chosen. Series switching capacity reaches 9.6 Tbps, and the chassis is PoE-capable with PoE and PoE+ provided through the line cards and power supplies. It differs from the 10-slot 7510X and the 3-slot non-PoE 7503X.

The 13 RU chassis runs Comware with Layer 2 and Layer 3 support and IRF virtualisation, so a whole fabric is managed from a single IP address. It requires at least one MPU and at least one LPU line card, up to 6 LPUs, and includes the 7506X fan tray (R8N60A). Power supplies must be a single type per chassis, with JD219A as the default PoE-capable PSU.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Up to 9.6 Tbps switching capacity for mission-critical environments
- Modular MPU and LPU line cards scale from 1/10GbE up to 40/100GbE
- IRF virtualisation manages the whole fabric from a single IP address
- Large MAC, ARP and FIB tables for scalability
- Redundant power modules for high availability
- Multiple management interfaces including console, out-of-band Ethernet, USB, CLI and web UI
- PoE and PoE+ delivery through supported line cards and power supplies

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product model: 7506X
- Product type: Modular switch chassis
- I/O module slots: 6
- Total expansion slots (I/O plus MPU): 8
- Maximum port density: 24 x 100GbE, 144 x 40GbE, 288 x 10GbE or 288 x 1GbE, or a combination
- Switching capacity: up to 9.6 Tbps (series-level, depends on LPU and mode)
- MAC table: up to 288K entries (depends on LPU and operating mode)
- ARP table: up to 104K entries (depends on LPU and operating mode)
- FIB table: up to 256K entries (depends on LPU and operating mode)
- PoE: supported via line cards and power supplies
- Layer support: Layer 2 and Layer 3 (Comware)
- Management interfaces: console port, out-of-band management Ethernet port, USB port, CLI and web-based manager
- Dimensions (W x D x H): 436 x 420 x 575 mm, 13 RU
- Power consumption: 1400 W
- Input voltage: 120 V AC / 230 V AC
- Default power supply: JD219A (PoE-capable)
- Fan tray: HPE 7506X Fan Tray Assembly (R8N60A)
- Mounting: rack-mountable, cabinet mount
- Media types: optical fibre and twisted pair, depending on line cards

FAQs

Q: Does the 7506X need a separate software licence?
A: Comware software is included on the MPU. No separate licence for the chassis itself is required, though optional feature licences may apply, so check the 7500X QuickSpecs.

Q: What power supplies does this chassis use?
A: The default PSU for the 7506X is the PoE-capable JD219A, and supplies within one chassis cannot be mixed. Input is 120 V AC or 230 V AC, and the available PoE and PoE+ budget depends on the PSUs and line cards installed.

Q: What do I need to install to get ports working?
A: You need at least one MPU and at least one LPU line card, with up to 6 LPUs supported in the 7506X. The port types and speeds come from the line cards you choose.

Q: How does the 7506X differ from the 7510X and 7503X?
A: The 7506X has 6 slots and is PoE-capable. The 7510X (R8N47A) has 10 slots and PoE, while the 7503X (R8N49A) has 3 slots and is non-PoE.

Q: Can I manage multiple chassis as one system?
A: Yes. IRF virtualisation lets a single IP address manage the whole fabric, which simplifies operations.
