HPE

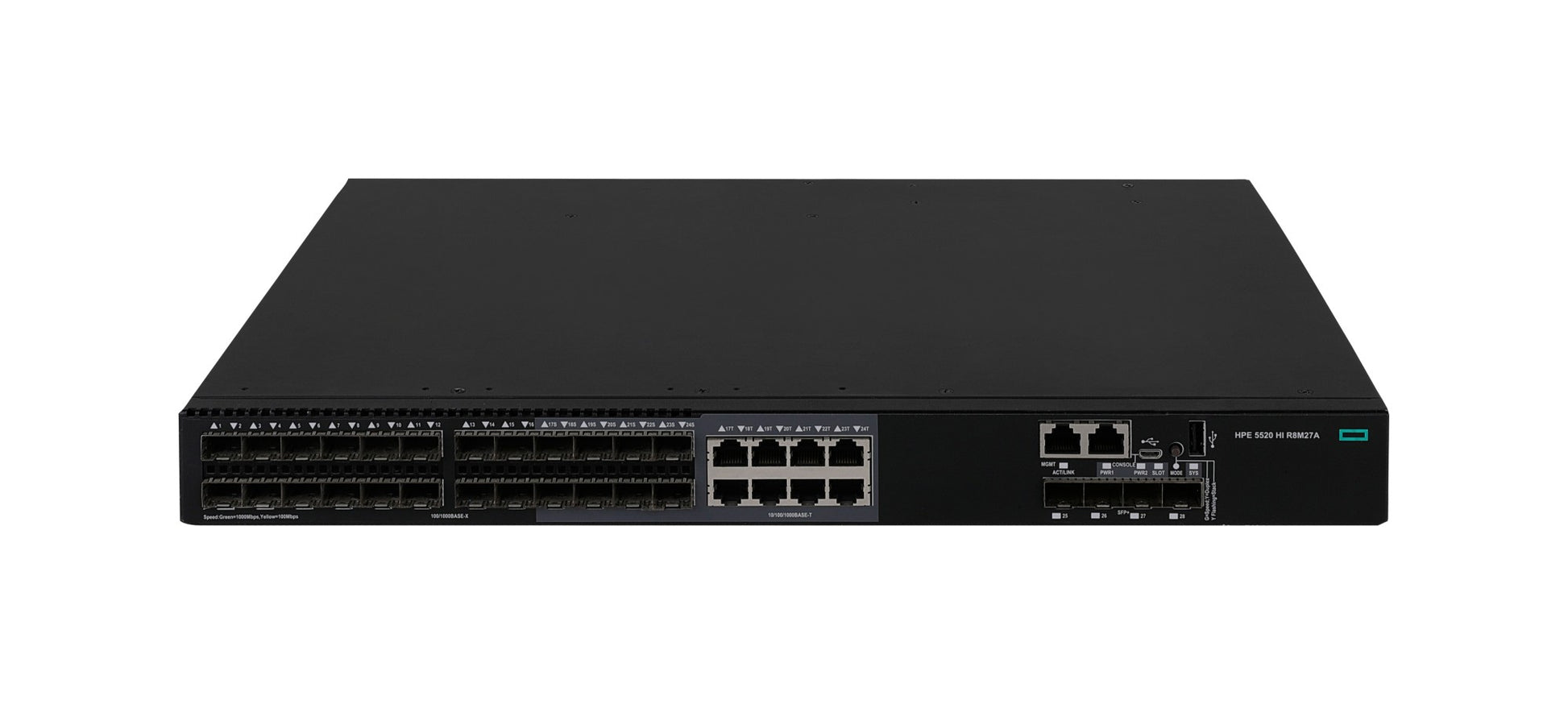

HPE R8M27A | FlexNetwork 5520 24-Port 1G SFP Switch, 4x 10G SFP+, CTO

R8M27A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The FlexNetwork 5520 HI is a fixed-port Layer 3 managed Ethernet switch built for enterprise access and aggregation deployments that need fibre-based 1G connectivity with 10G uplinks. It suits designs that call for Layer 3 routing and resilient, IRF-stacked topologies.

This model provides 24 Gigabit SFP ports, 8 of which are shared as combo ports with 10/100/1000BASE-T, plus 4 x 1G/10G SFP+ uplinks and one expansion slot. Switching is non-blocking at wire speed, with 180 Mpps throughput and a MAC address table of up to 64K entries. The 1U chassis has two power supply slots and two fan tray slots, and this is the CTO configuration. It is a non-PoE switch.

It accepts 1G SFP and 10G SFP+ optics and DAC cables, and Intelligent Resilient Framework (IRF) lets up to nine units operate as one logical switch. Management is available through HPE Intelligent Management Center (IMC) and the embedded SmartMC web-based tool.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Non-blocking architecture with wire-speed switching
- Larger MAC tables (up to 64K) and Longest Prefix Match (LPM) routing
- Intelligent Resilient Framework (IRF) virtualises up to nine switches into one
- VRRP, ECMP and BFD for resiliency
- Advanced classifier-based QoS using Layer 2/3 match criteria
- 802.1X and MAC authentication, per-user ACLs and dynamic ARP protection
- Centralised management with HPE Intelligent Management Center (IMC)
- SmartMC embedded management tool with web-based interface

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Manufacturer part number: R8M27A
- Product line: FlexNetwork
- Product model: 5520 24G SFP 4SFP+ HI
- Switch type: Managed, Layer 3
- SFP ports: 24 x 1G SFP, 8 shared as combo with 10/100/1000BASE-T
- SFP+ ports: 4 x 1G/10G SFP+
- Expansion slots: 1 x expansion slot
- Media types: Optical fibre, twisted pair
- Network technology: 10/100/1000Base-T, 100/1000Base-X, 10GBase-X
- Switching capacity: up to 336 Gbps
- Throughput: 180 Mpps
- MAC address table: up to 64K entries
- IRF stacking: up to 9 units
- Internal memory: 2048 MB
- Power supply slots: 2 (AC/DC)
- Fan tray slots: 2
- Power consumption: 24 W
- Frequency: 50/60 Hz
- Rack units: 1U
- Dimensions (H x W x D): approx. 43 x 439 x 361 mm
- Airflow: side to back
- PoE: not supported

FAQs

Q: Does this switch provide PoE?
A: No. The 5520 24G SFP 4SFP+ HI is a non-PoE switch, so powered devices need a separate PoE source.

Q: How many switches can be stacked with IRF?
A: Intelligent Resilient Framework (IRF) can virtualise up to nine units into a single logical switch.

Q: What optics and cables does it use?
A: The 24 SFP ports accept 1G SFP optics and the 4 SFP+ ports accept 1G or 10G SFP+ optics and DAC cables. 8 of the SFP ports are shared combo ports with 10/100/1000BASE-T.

Q: How does this SKU differ from other 5520 HI models?
A: R8M27A is the 24 x SFP, 4 x 10G SFP+ configuration with one expansion slot and two power supply and two fan tray slots, supplied as a CTO chassis.

Q: How is the switch managed?
A: It can be managed centrally with HPE Intelligent Management Center (IMC) or locally through the embedded SmartMC web-based tool.
