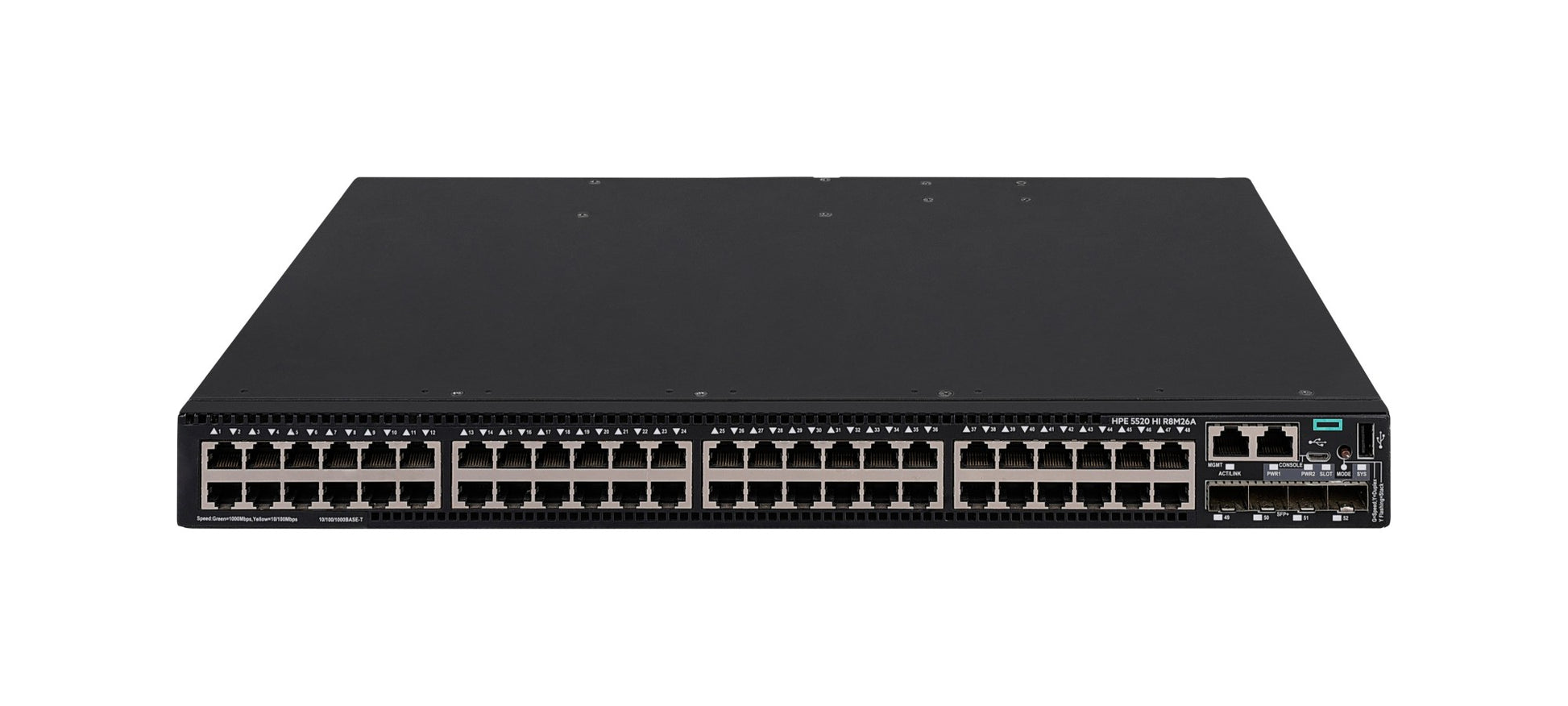

• HPE R8M26A 48-port black Gigabit Ethernet switch with RJ-45 ports
1 1

HPE

HPE R8M26A | FlexNetwork 5520 48-Port Gigabit L3 Switch, 4x 10G SFP+

R8M26A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The FlexNetwork 5520 HI is a 1U Layer 3 switch for the access and aggregation layer of medium and large enterprise networks, including data centre spine-leaf designs built on VXLAN and EVPN.

It provides 48 autosensing 10/100/1000 RJ-45 ports with no PoE, plus 4 x 1/10GbE SFP+ ports and one expansion module slot. Switching capacity is 336 Gbps with throughput up to 180 Mpps. Layer 3 routing with RIP, OSPF, ISIS, BGP and PIM is available without an additional software licence. Ports 41 to 48 support MACsec encryption. The chassis has two power supply slots and needs at least one power supply, which is ordered separately. Options include the X361 150W AC (JD362B) and 48-60VDC (JD366B) units, and the X362 PoE supplies (JG544A, JG545A) are also listed as supported.

The SFP+ slots accept HPE X130 10G SFP+ transceivers, including SR (JD092B), LR (JD094B), ER (JG234A) and 80km LH (JG915A), as well as X240 10G SFP+ DAC cables. Up to 9 units can be stacked with Intelligent Resilient Framework (IRF).

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Layer 3 routing with RIP, OSPF, ISIS, BGP and PIM without additional software licensing
- VXLAN L2/L3 gateway and EVPN for multitenant isolation and spine-leaf designs
- Intelligent Resilient Framework (IRF) stacks up to 9 switches as one with up to 160 Gbps stacking bandwidth
- DRNI combines two physical switches into one virtual distributed-relay system
- MACsec encryption on ports 41 to 48
- VRRP, ECMP and BFD for redundancy
- IPv4/IPv6, OpenFlow 1.3 and MPLS/VPLS support
- iNQA for real-time packet loss and application performance measurement
- Energy Efficient Ethernet (IEEE 802.3az)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Downlink ports: 48 x 10/100/1000BASE-T RJ-45, autosensing
- PoE: None
- Uplink ports: 4 x 1/10GbE SFP+
- Expansion: 1 module slot
- Switching capacity: 336 Gbps
- Throughput: up to 180 Mpps
- MACsec: ports 41 to 48
- Console and management: 1 RJ-45 or mini USB serial console, 1 RJ-45 out-of-band management, 1 USB 2.0
- Memory: 2 GB SDRAM
- Flash: 512 MB
- Packet buffer: 4 MB
- 1000 Mb latency: less than 5 us
- 10 Gbps latency: less than 3 us
- Routing table size: 32768 IPv4 entries, 16384 IPv6 entries
- MAC address table size: up to 64K
- Power supply slots: 2, minimum 1 required
- Input voltage: 90 to 264 VAC or -36 to -72 VDC
- Maximum power rating: 150 W
- Idle power: 27 W
- Airflow: side to back and back to side
- Dimensions (W x D x H): 44.0 x 36.0 x 4.36 cm, 1U
- Weight: 7 kg or less
- Operating temperature: -5 to 45 C
- Operating humidity: 5% to 95%, non-condensing
- Mounting: 19-inch rack
- Management: IMC, command-line interface, SNMP

FAQs

Q: Does this switch need a software licence for Layer 3 routing?
A: No. RIP, OSPF, ISIS, BGP and PIM are available without an additional software licence. HI in the model name is the 5520 HI designation, not a licence tier.

Q: Does the R8M26A provide PoE?
A: No. This SKU has no PoE ports. The chassis has two power supply slots, and the X362 PoE power supplies are also listed as supported.

Q: Which power supplies does it use?
A: It needs at least one of its two power supply slots filled. Options include the X361 150W AC (JD362B) and 48-60VDC (JD366B) supplies, and the X362 PoE supplies (JG544A 720W, JG545A 1110W) are also listed as supported.

Q: Which optics and cables work in the SFP+ ports?
A: The 4 SFP+ ports accept HPE X130 10G SFP+ transceivers, including SR (JD092B), LR (JD094B), ER (JG234A) and 80km LH (JG915A), plus X240 10G SFP+ DAC cables.

Q: How many switches can be stacked?
A: Up to 9 switches can be combined into one logical unit with Intelligent Resilient Framework (IRF), with up to 160 Gbps of stacking bandwidth.
