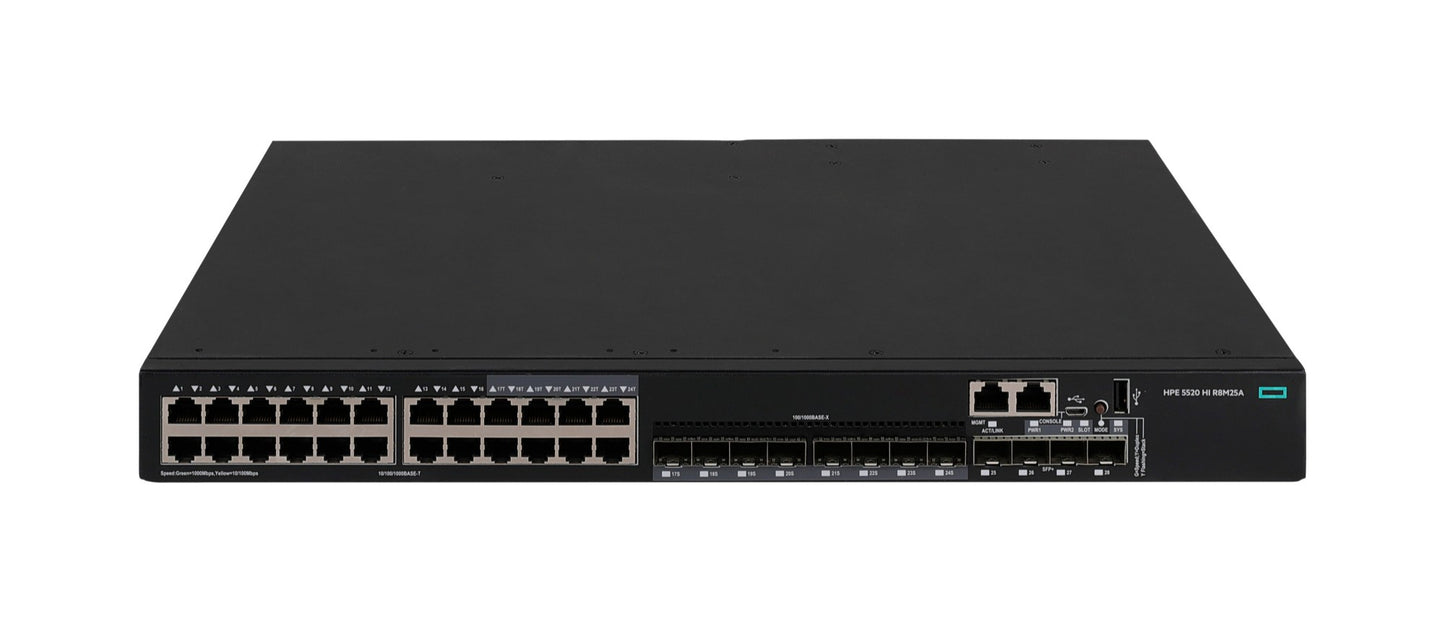

• HPE R8M25A black Cisco switch with 24x 1G RJ-45 and 4x 10G SFP+ ports
1 1

HPE

HPE R8M25A | FlexNetwork 5520 HI 24-Port Gigabit Switch, 4x 10G SFP+

R8M25A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The FlexNetwork 5520 HI is a fixed-port managed Layer 3 switch for the access and aggregation layer of medium and large enterprise networks, including campus and data-centre-edge deployments that need 10GbE uplinks and Layer 3 routing.

It provides 24 x 10/100/1000BASE-T RJ-45 ports and 4 x 1G/10G SFP+ ports, plus one port expansion module slot and two hot-plug power supply slots. Switching capacity is 288 Gbps with throughput up to 180 Mpps, latency is under 5 microseconds at 1 Gbps and under 3 microseconds at 10 Gbps, and the MAC table holds 64K entries. This model is non-PoE. Power input is 90 to 264 VAC or -36 to -72 VDC depending on the power supply fitted, with a maximum consumption of 150 W.

The 4 SFP+ ports accept 1G and 10G SFP and SFP+ transceivers. Up to 9 switches can be combined with IRF stacking, giving up to 160 Gbps of stacking bandwidth. The 1U chassis measures 440 x 360 x 43.6 mm.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Non-blocking architecture with wire-speed switching
- IRF stacking of up to 9 switches with up to 160 Gbps stacking bandwidth
- VXLAN and EVPN for multitenant isolation and scalability
- High availability through DRNI, IRF, VRRP, ECMP and BFD
- MACsec support
- OpenFlow 1.3 support for SDN
- IPv6 management, IPv6 source guard and ND snooping
- Managed with Intelligent Management Center (IMC) and iNQA network health visibility

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 24 x 10/100/1000BASE-T RJ-45
- Uplinks: 4 x 1G/10G SFP+
- Expansion slots: 1 port expansion module slot
- Switch type: Managed, Layer 3
- PoE: No
- Switching capacity: 288 Gbps
- Throughput: up to 180 Mpps
- Latency (1000 Mb): under 5 microseconds
- Latency (10 Gbps): under 3 microseconds
- Memory: 2 GB SDRAM
- Flash memory: 512 MB
- Packet buffer: 4 MB
- MAC address table: 64K entries
- IPv4 routing table: 32768 entries
- IPv6 routing table: 16384 entries
- Stacking: IRF, up to 9 switches, up to 160 Gbps stacking bandwidth
- Power supply slots: 2 hot-plug
- Input voltage: 90 to 264 VAC and -36 to -72 VDC
- Power consumption: 150 W maximum
- Form factor: 1U rack-mountable, side-to-back airflow
- Dimensions (W x D x H): 440 x 360 x 43.6 mm
- Weight: approx. 6.7 kg

FAQs

Q: Does this switch support PoE?
A: No. This model is non-PoE. It provides 24 standard Gigabit RJ-45 ports with no Power over Ethernet.

Q: What power input does it accept?
A: It has two hot-plug power supply slots. Input is 90 to 264 VAC or -36 to -72 VDC depending on the power supply fitted, with a maximum consumption of 150 W.

Q: What can be fitted in the SFP+ ports?
A: The 4 SFP+ ports accept 1G and 10G SFP and SFP+ transceivers, giving flexible fibre or 10G uplinks.

Q: Can it be stacked?
A: Yes. It supports IRF stacking with other 5520 HI switches, up to 9 units with up to 160 Gbps of stacking bandwidth.

Q: Does it have an expansion slot?
A: Yes. It has one port expansion module slot for adding extra connectivity.
