• HPE R8J41A 24-port 1G switch with 2x 10G SFP+ and 2x 10GBase-T uplinks
1 1

HPE

HPE R8J41A#ABG | 5140 EI 24-Port Gigabit Switch, 2x 10G SFP+, 2x 10G-T

R8J41A#ABG

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The HPE 5140 EI is a Layer 3 managed Gigabit Ethernet access switch for medium and large enterprise campus and branch networks. It sits in the HPE Networking Comware Switch 5140 EI range, formerly sold as FlexNetwork 5140 EI, and suits access-layer deployments that need 10GbE uplinks back to an aggregation or core layer.

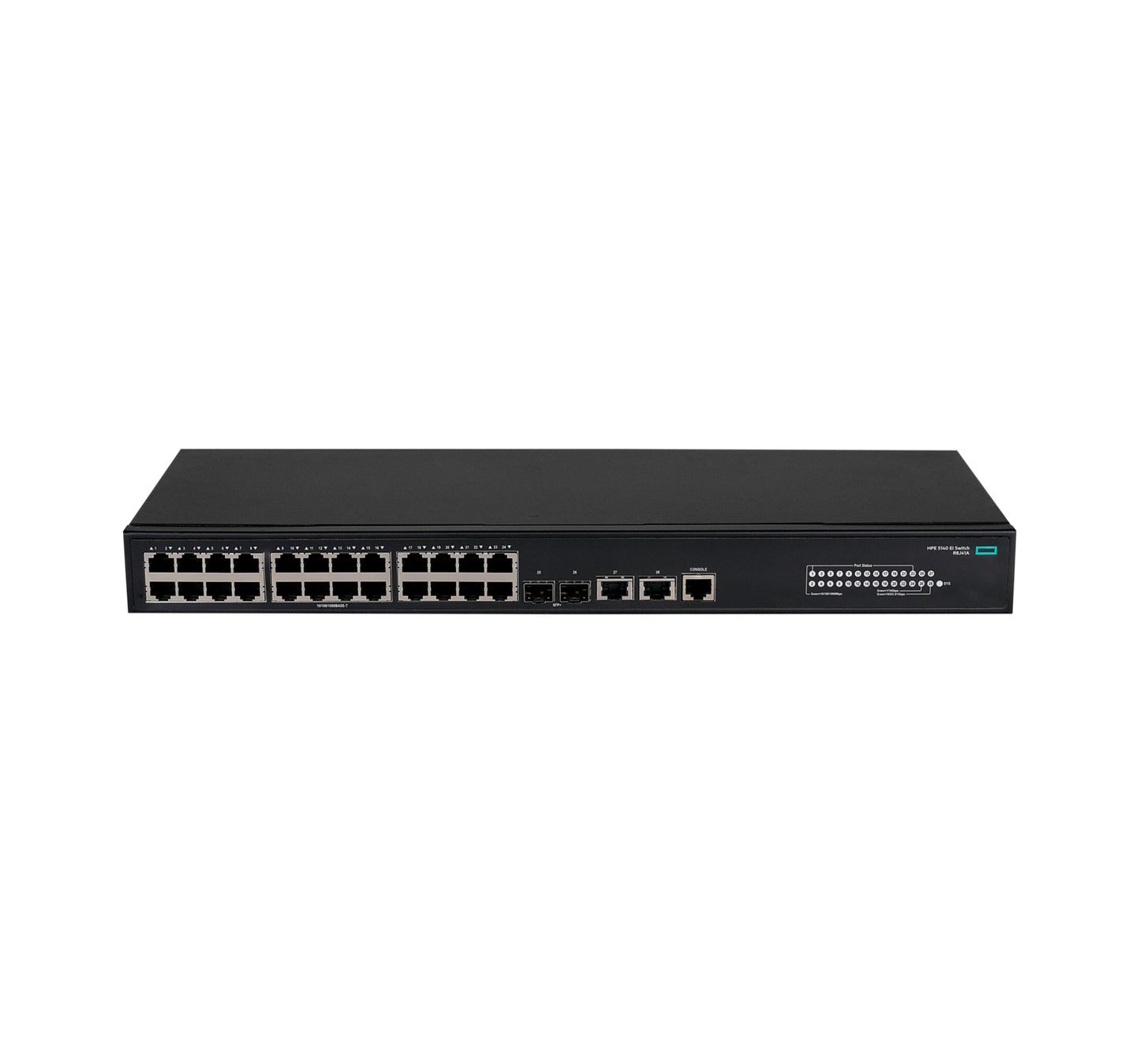

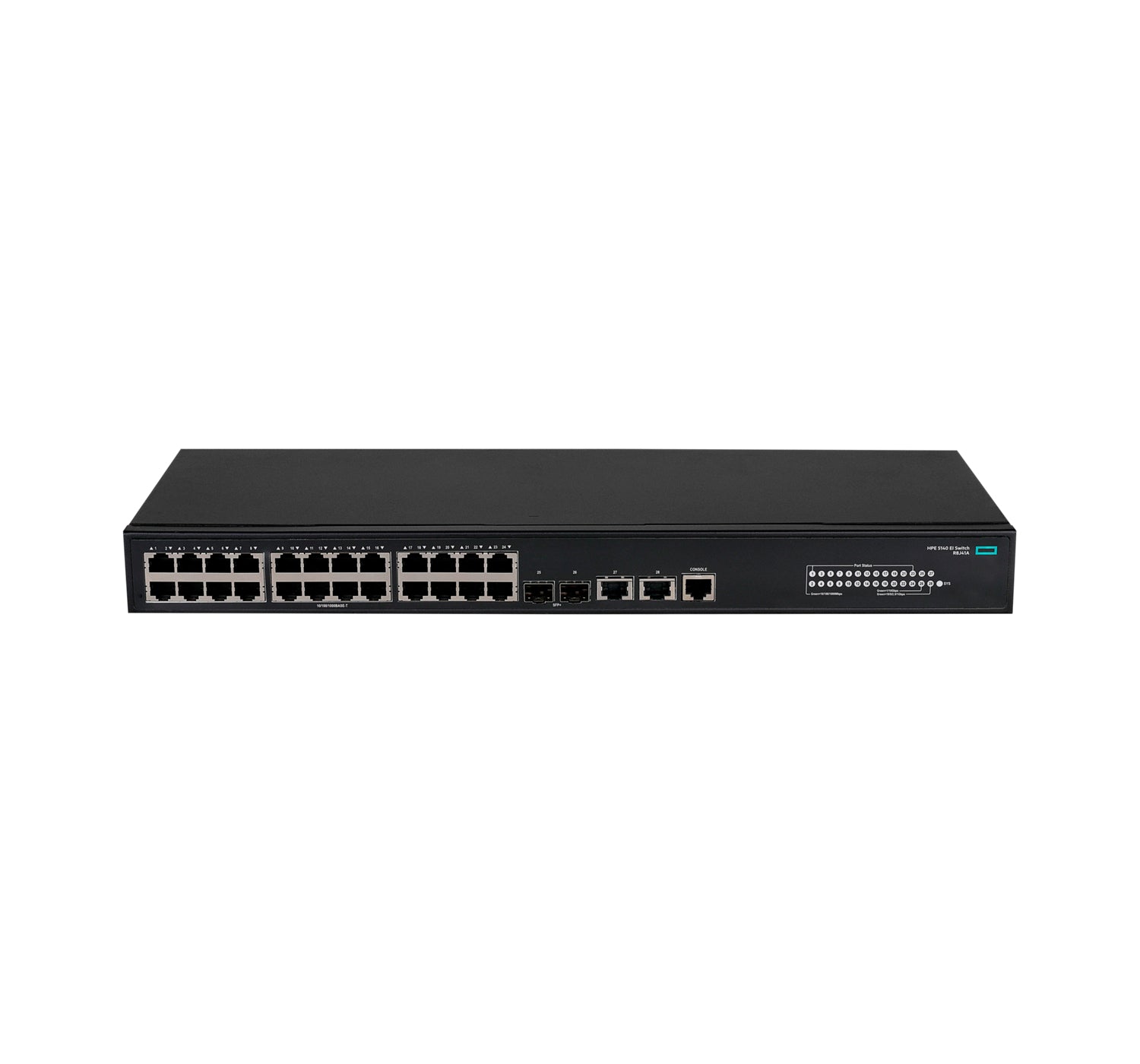

This model provides 24 autosensing 10/100/1000 RJ-45 ports, 2 SFP+ ports and 2 10GBASE-T ports for uplinks. It is a non-PoE model in a 1U chassis with a built-in 100-240 VAC power supply. Switching capacity is 128 Gbps with a throughput of 96 Mpps, and the MAC address table holds 16,384 entries. Layer 3 support covers static routing and RIP for IPv4 and IPv6.

The SFP+ uplink slots take up to 2 SFP+ transceivers. Multiple 5140 EI switches can be joined into a single logical unit using IRF stacking, which simplifies management and adds link aggregation across devices.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- IRF stacking for device aggregation, cross-device link aggregation and redundancy
- Four fixed uplinks (SFP+ and 10GBASE-T) for bandwidth-intensive applications
- Static Layer 3 routing and RIP
- IPv4 and IPv6 support, including IPv6 management protocols
- 802.1X and MAC authentication
- Embedded network management with Smart Management Center (SmartMC)
- Energy-efficient Ethernet

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 24x RJ-45 autosensing 10/100/1000
- Uplinks: 2x SFP+ and 2x 10GBASE-T
- SFP+ transceivers: 0 to 2
- PoE: Not supported
- Switching capacity: 128 Gbps
- Throughput: 96 Mpps
- Latency (1000 Mbps): 5 us
- Latency (10 Gbps): 3 us
- MAC address table: 16,384 entries
- IPv4 routing table: 512 entries
- IPv6 routing table: 256 entries
- Power supply: Built-in AC, 100-240 VAC
- Height: 1U rack-mountable
- Operating temperature: -5 to 50 C
- Management: CLI, SNMP v1/v2c/v3, SSH-2, HTTPS, TFTP, NTP, RADIUS, RMON

FAQs

Q: Does this switch provide PoE?
A: No. This is a non-PoE model, so PoE devices such as access points and IP phones need a separate PoE source or injector.

Q: Does it need a separate software licence?
A: No separate licence is required. The EI model runs the standard Comware software image.

Q: How is this switch powered?
A: It has a built-in AC power supply rated for 100-240 VAC, 50/60 Hz.

Q: Can I stack it with other switches?
A: Yes. It supports IRF stacking with other 5140 EI switches, allowing them to be managed as a single logical device.

Q: How many SFP+ transceivers can it take?
A: The two SFP+ uplink slots accept up to 2 SFP+ transceivers. The 2 10GBASE-T ports use standard copper cabling.
