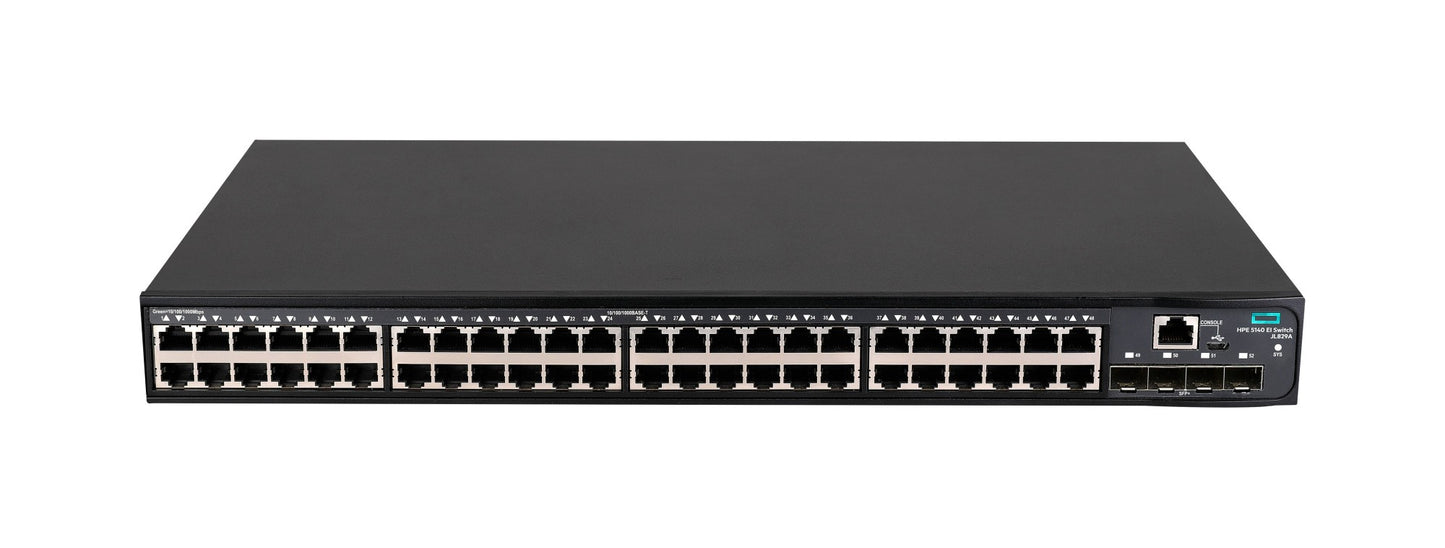

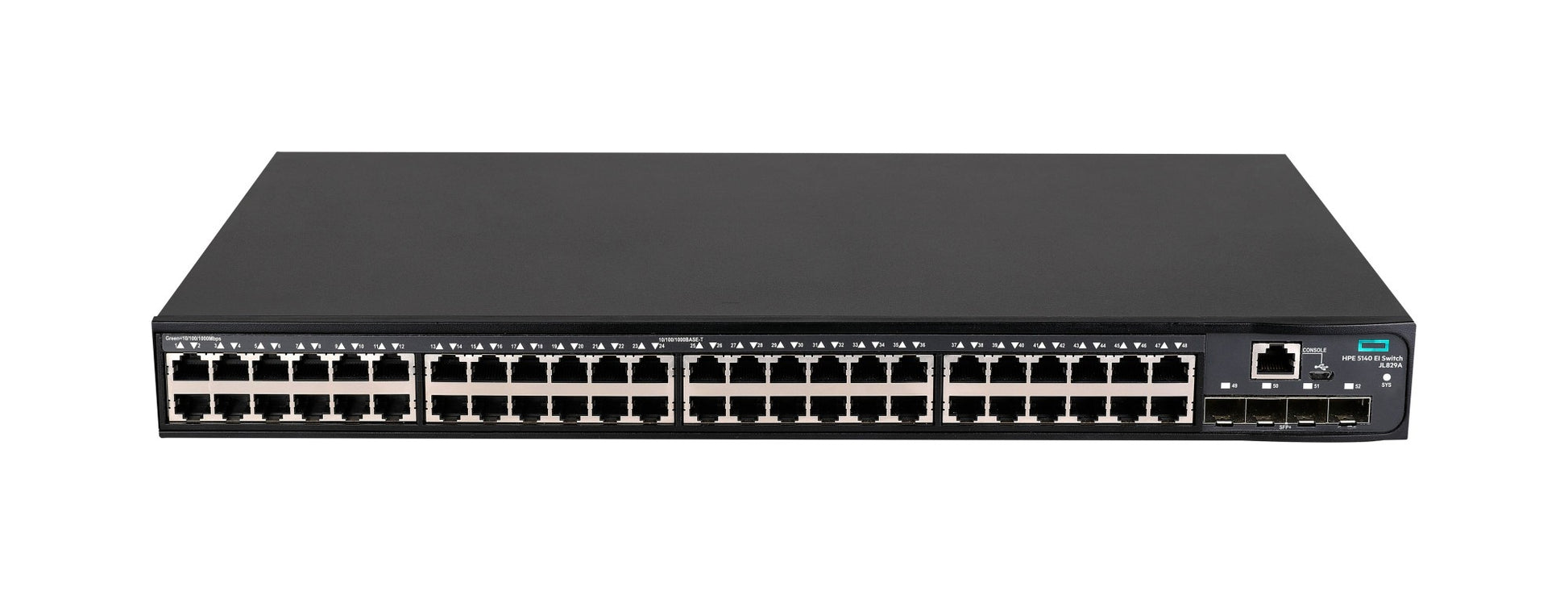

• HPE JL829A 48-port 1G Ethernet switch with 4x 10G SFP+ uplinks
1 1

Aruba

Aruba JL829A | 5140 EI 48-Port Gigabit Switch, 4x 10G SFP+, Non-PoE

JL829A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The 5140 EI is a fixed-port Gigabit Ethernet Layer 3 access switch from the HPE FlexNetwork 5140 EI Series, running Comware software. It suits network edge access in campus and enterprise environments, and server-cluster connectivity in small data centres where 10GbE uplinks and virtual stacking are needed.

The JL829A provides 48 autosensing 10/100/1000 RJ-45 ports, all non-PoE, plus 4 fixed 1/10GbE SFP+ uplink ports and a serial console port. Switching and routing capacity is 176 Gbps with 131 Mpps throughput, and latency is under 5 microseconds at 1 Gbps and under 3 microseconds at 10 Gbps. Layer 3 support covers static routing, RIP and OSPF for both IPv4 and IPv6. The EI (Enhanced Image) software is included, so no separate licence is needed for these routing features, and SmartMC management is included at no extra cost.

The four SFP+ slots accept 1G SFP and 10G SFP+ transceivers as well as 10G SFP+ DAC and AOC cables. Several 5140 EI units can be joined into one logical device using IRF virtual stacking. The switch is a 1U, 19-inch rack-mount unit with an internal AC power supply, and optional external redundant power is available through the HPE RPS 800 (JD183A) or RPS1600 (JG136A).

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Layer 3 routing with static routes, RIP and OSPF for IPv4 and IPv6
- IRF (Intelligent Resilient Fabric) combines several switches into one logical device
- OpenFlow 1.3 support for SDN deployments
- Embedded SmartMC management at no additional cost
- Classifier-based QoS with SP, WRR and SP+WRR queuing, plus traffic policing (CAR)
- Smart link with 100 ms failover, plus STP, RSTP and MSTP with up to 64 MSTP instances
- Auto-MDIX and IEEE 802.3x flow control on all 10/100/1000 ports
- Energy Efficient Ethernet with automatic idle-port power saving

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Downlink ports: 48 x 10/100/1000BASE-T RJ-45 autosensing
- PoE: None (non-PoE model)
- Uplink ports: 4 x fixed 1000/10000 SFP+
- Console: 1 x RJ-45 serial console port
- Switching/routing capacity: 176 Gbps
- Throughput: 131 Mpps
- Latency (1 Gbps): less than 5 µs
- Latency (10 Gbps): less than 3 µs
- Memory and flash: 512 MB SDRAM, 256 MB flash
- Routing table size: 512 entries (IPv4), 256 entries (IPv6)
- MAC address table size: 16384 entries
- Form factor: 1U, 19-inch rack mount
- Dimensions (W x D x H): 44 x 23 x 4.36 cm
- Weight: 3.5 kg
- Power input: 100-240 VAC, 50/60 Hz
- Power consumption: 44 W maximum, 38 W idle
- Operating temperature: -5 to 45 C
- Operating humidity: 10% to 90%, noncondensing
- Acoustic noise: 42.2 dB (low-speed fan), 49.3 dB (high-speed fan)
- Management: IMC, SmartMC, CLI, web browser, SNMP
- IPv6: IPv6 Ready certified

FAQs

Q: Does the JL829A need a separate software licence for Layer 3 routing?
A: No. The EI (Enhanced Image) Comware software is included, so static, RIP and OSPF routing are available without a separate licence. SmartMC management is also included at no additional cost.

Q: Does this switch provide PoE?
A: No. The JL829A is a non-PoE model. Powered devices need a separate PoE source such as a midspan injector or a PoE switch.

Q: What can be fitted in the four SFP+ uplink ports?
A: The ports accept 1G SFP and 10G SFP+ transceivers, as well as 10G SFP+ DAC cables (for example JD096C, JD097C and JG081C) and AOC cables (JL290A to JL292A).

Q: Can the switch be stacked?
A: Yes. IRF virtual stacking is supported across 5140 EI units, combining several switches into one logical device for simpler management and resilience.

Q: Is a rack mount kit needed and can power be made redundant?
A: The switch is 1U for a 19-inch rack, and the matching rack mount kit is part number R8M91A. Optional external redundant power is available with the HPE RPS 800 (JD183A) or RPS1600 (JG136A).
