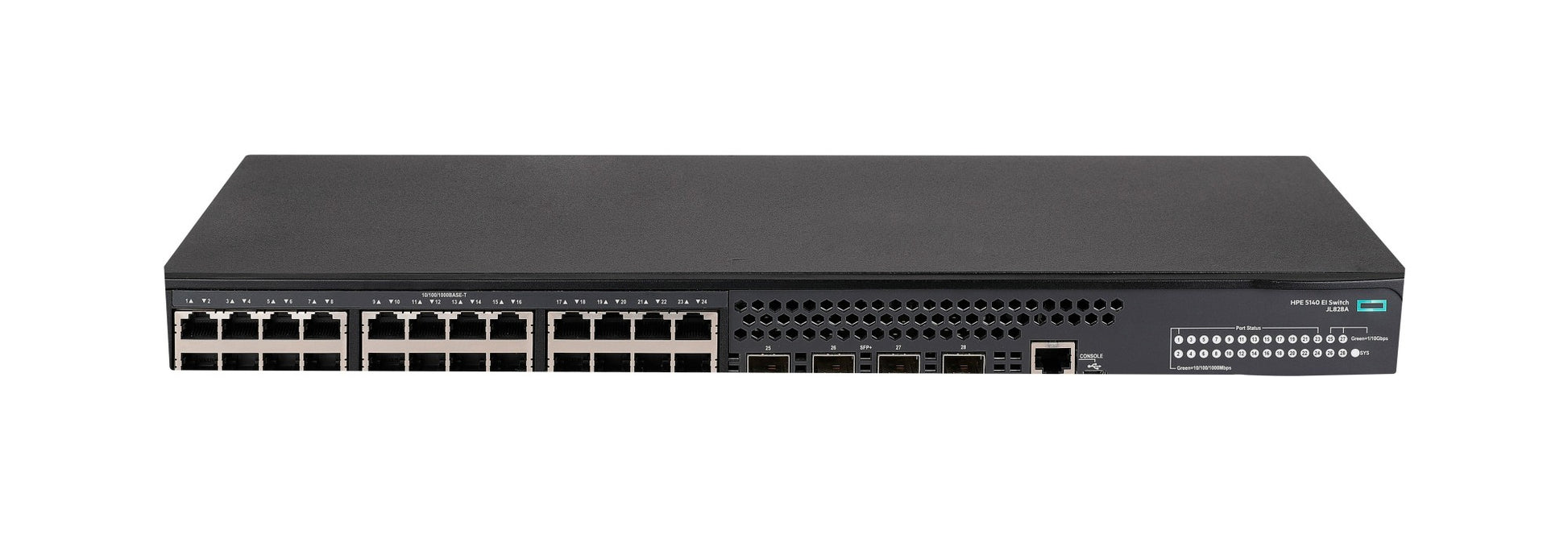

• HPE JL828A black switch with 24x 1G RJ45 ports and 4x 10G SFP+ uplinks
1 1

Aruba

Aruba JL828A | 5140 EI 24-Port Gigabit Switch, 4x 10G SFP+, Non-PoE

JL828A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The 5140 EI is a fixed-port Gigabit Ethernet Layer 3 access switch running Comware. It suits the access layer of medium and large enterprise campus networks, giving desktops Gigabit connectivity with 10G uplinks, QoS and security.

This model provides 24 autosensing 10/100/1000 RJ-45 ports and 4 SFP+ 10GbE uplink ports. It is a non-PoE switch with a switching capacity of 128 Gbps and throughput of 95 Mpps. Latency is under 5 microseconds at 1 Gbps and under 3 microseconds at 10 Gbps. The EI (Enhanced Image) Comware software is the image for this SKU and enables static routing and RIP. The MAC address table holds 16,384 entries and the routing table 1024 entries.

The 4 SFP+ uplinks take SFP+ transceivers. IRF stacking works with other 5140 EI units to aggregate devices and provide cross-device link aggregation. Management is available through the CLI, web browser, SNMP, SmartMC and HPE Aruba Networking IMC.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Gigabit Ethernet access switch with static Layer 3 routing and RIP
- High-density 10GbE SFP+ uplinks for aggregation
- IRF technology for plug-and-play device aggregation and cross-device link aggregation
- Managed end to end with HPE Aruba Networking IMC for network visibility
- SmartMC support for simplified management
- Enterprise-class QoS and security features

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 24 x RJ-45 autosensing 10/100/1000
- Uplink ports: 4 x SFP+ 10GbE
- PoE: None (non-PoE)
- Console: 1 x RJ-45 serial console port
- Software image: EI (Enhanced Image) Comware
- Switching capacity: 128 Gbps
- Throughput: 95 Mpps
- Latency at 1000 Mb: under 5 microseconds
- Latency at 10 Gbps: under 3 microseconds
- Memory and processor: 512 MB SDRAM, 256 MB flash
- Routing table size: 1024 entries
- MAC address table size: 16,384 entries
- Power supply: Fixed internal AC, 100-240 VAC, 50/60 Hz
- Current: 2 A
- Maximum power rating: 24 W
- Idle power: 19 W
- Maximum heat dissipation: 64/88 BTU/hr
- Form factor: 1U fixed-port
- Mounting: 19-inch EIA rack
- Management: IMC, SmartMC, CLI, web browser, SNMP
- Certification: IPv6 Ready

FAQs

Q: Does this switch provide PoE?
A: No. The JL828A is a non-PoE model with no Power over Ethernet on any port. It is powered by its internal AC supply at 100-240 VAC.

Q: Which software image does this model run?
A: It runs the EI (Enhanced Image) Comware software. The EI image is the one for this SKU, and no separate subscription is needed for base operation.

Q: What can I connect to the 4 uplink ports?
A: The 4 uplink ports are 10GbE SFP+ slots and take SFP+ transceivers, so they can be used for 10G fibre or direct-attach uplinks to an aggregation or core layer.

Q: Can multiple units be stacked?
A: Yes. IRF stacking is supported with other 5140 EI units, allowing devices to be aggregated and managed as one with cross-device link aggregation.

Q: How is the switch mounted?
A: It is a 1U unit designed for a 19-inch EIA rack and mounts with the HPE 5140 E Rack Mount Kit, part number R8M91A.
