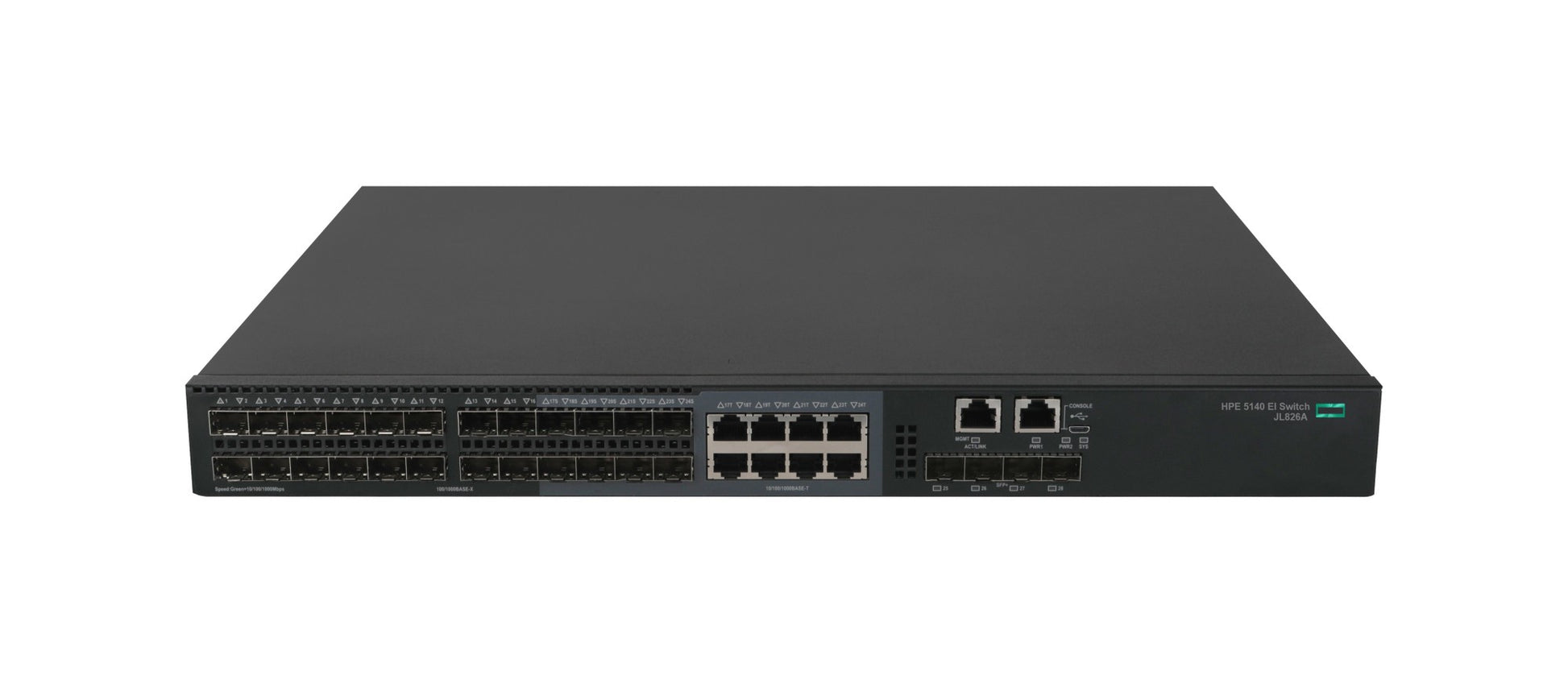

• HPE JL826A black Cisco-style switch with 24x 1G SFP ports
1 1

Aruba

Aruba JL826A | 5140 EI 24-Port 1G SFP Switch, 4x 10G SFP+, L3

JL826A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba JL826A is a Layer 3 Gigabit Ethernet access switch from the FlexNetwork 5140 EI series. It is built for the access layer of medium and large enterprise campus networks, particularly where fibre SFP downlinks are needed alongside 10GbE uplinks to the distribution or core.

It provides 24 x 1GbE SFP ports, 8 of which are dual-personality combo ports that accept either 10/100/1000BASE-T copper or SFP optics. Four fixed SFP+ ports provide 10GbE or 1GbE uplinks. The 1U unit delivers 128 Gbps of switching capacity and up to 96 Mpps of throughput, with a 16,384-entry MAC table, 4094 VLAN IDs and 9216-byte jumbo frame support. This is a non-PoE model with two power supply slots for redundancy, and it runs the Enhanced Image (EI) software with static IPv4 and IPv6 routing, RIP and OSPF.

The SFP and SFP+ ports take standard 1G SFP and 10G SFP+ optics. The switch supports IRF stacking with other 5140 EI switches and is managed through the embedded SmartMC or Aruba Networking IMC.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Static IPv4 and IPv6 routing with RIP and OSPF on the EI software image
- IRF stacking for device aggregation and link aggregation across switches
- Embedded SmartMC management at no additional cost, plus Aruba Networking IMC support
- STP, RSTP, MSTP and VRRP for Layer 2 resilience
- Enterprise-class QoS, ACLs and IPv6 support
- IGMP snooping and IGMPv3 for multicast traffic
- Energy Efficient Ethernet with idle ports switched to energy-saving mode

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Device type: Layer 3 smart-managed switch, 28 ports
- Ports: 24 x 1GbE SFP, including 8 dual-personality combo 10/100/1000BASE-T / SFP ports
- Uplinks: 4 x 10GbE / 1GbE SFP+
- Console port: 1 x RJ-45 serial
- Enclosure: 1U rack-mountable
- Power supply slots: 2 (1 minimum required)
- PoE: not supported
- Switching capacity: 128 Gbps
- Throughput: up to 96 Mpps
- Latency (1000 Mbps): 5 us
- Latency (10 Gbps): 3 us
- Memory: 512 MB SDRAM
- Flash: 256 MB
- MAC address table: 16,384 entries
- VLAN IDs: 4094
- Jumbo frames: up to 9216 bytes
- IPv4 routing table: 512 entries
- IPv6 routing table: 256 entries
- Management: SNMP, RMON, sFlow, SmartMC, Aruba Networking IMC

FAQs

Q: Does the JL826A need a separate licence?
A: No separate licence is required for the base feature set. The EI in the model name refers to the Enhanced Image software, and SmartMC management is included at no additional cost.

Q: Does this switch provide PoE?
A: No. The JL826A is a non-PoE model, so powered devices need a separate PoE source.

Q: How is the switch powered?
A: It has two power supply slots and needs at least one power supply installed. The second slot allows for power redundancy.

Q: What can I connect to the SFP and SFP+ ports?
A: The 24 SFP ports take 1G SFP optics, and 8 of them also accept 10/100/1000BASE-T copper. The 4 SFP+ ports take 10G SFP+ or 1G SFP optics.

Q: Can I stack it with other switches?
A: Yes. It supports IRF stacking with other 5140 EI switches, presenting them as a single logical device.
