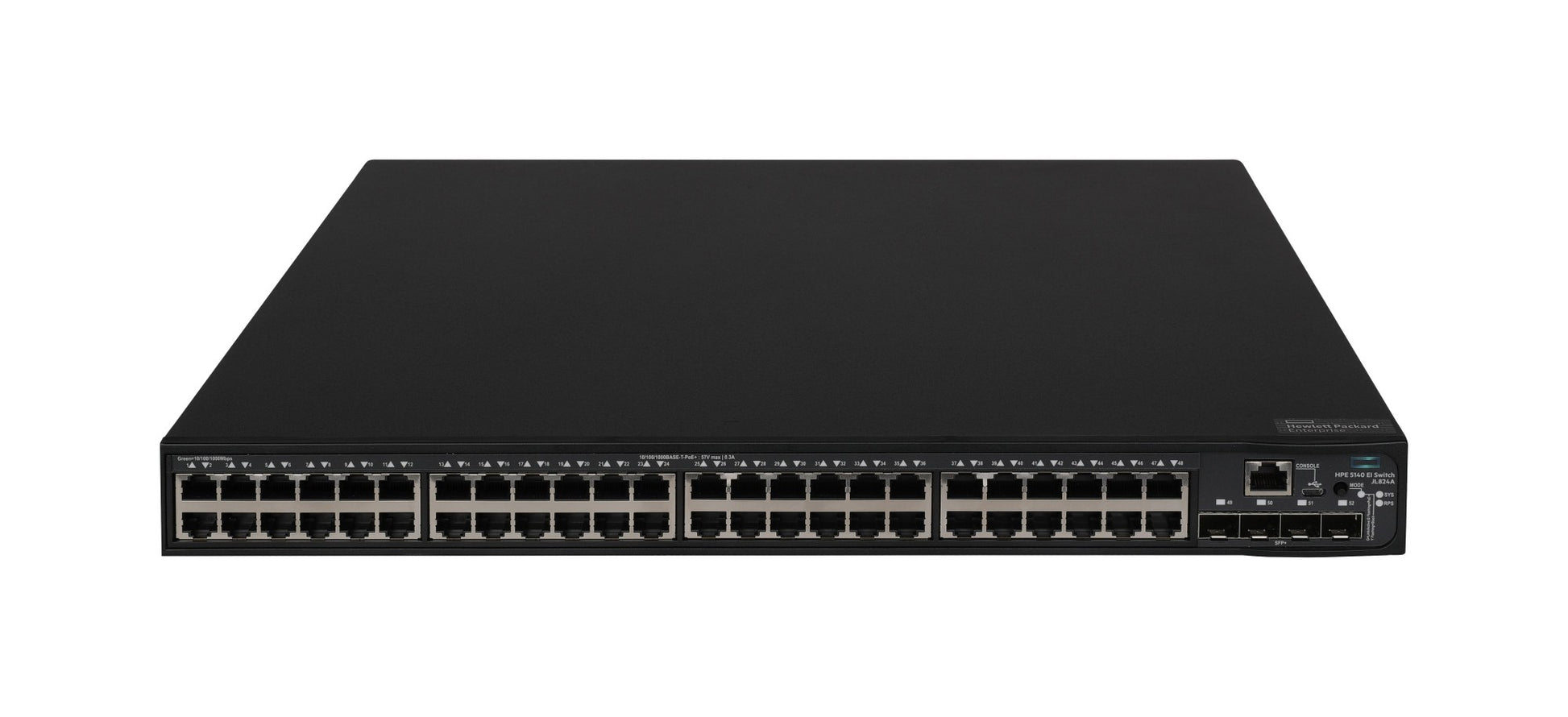

• HPE JL824A black cisco switch with 48x 1G PoE+ ports and 4x 10G SFP+ uplinks
1 1

Aruba

Aruba JL824A | Comware 5140 EI 48-Port PoE+ Switch, 370W, 4x 10G SFP+

JL824A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The 5140 EI is a fixed-port Layer 3 Gigabit Ethernet PoE+ access switch running Comware, part of the HPE Networking Comware Switch Series 5140 EI (formerly HPE FlexNetwork 5140 EI). It is built for the access layer of medium and large enterprise campus networks, and also suits PoE+ deployments for VoIP phones, video and wireless access points. It can connect server clusters in small data centres as well.

This model provides 48 10/100/1000BASE-T RJ-45 PoE+ ports and 4 fixed 1G/10G SFP+ uplinks. The internal power supply delivers a 370 W PoE+ budget, which rises to 740 W when supplemented by an HPE RPS1600. Switching and routing capacity is 176 Gbps at 131 Mpps, with static, RIP and OSPF routing for IPv4 and IPv6. IRF virtual stacking lets several switches operate as one logical device. The EI (Enhanced Image) Comware software is included with no separate licence required.

The SFP+ ports accept 1G SFPs such as JD118B, JD119B and JD089B, 10G optics JD092B and JD094B, X240 10G DAC cables and X2A0 10G AOC cables. Redundant power uses the RPS1600 (JG136A with JG137A), and the 1U chassis mounts in a 19-inch rack with the R8M91A kit.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Intelligent Resilient Fabric (IRF) virtualises several switches into one logical device for resilience and simpler operation
- Static, OSPF (v1/v2/v3) and RIP Layer 3 routing for IPv4 and IPv6
- Fixed 10GbE SFP+ uplinks for aggregation or server connections
- PoE+ for voice, video and wireless access points
- Embedded SmartMC web GUI at no additional cost
- Hardware wirespeed ACLs and classifier-based QoS (SP, WRR, SP+WRR)
- OpenFlow 1.3 SDN support
- Energy Efficient Ethernet with automatic power-down of unused ports
- MSTP/RSTP spanning tree, up to 4,094 VLANs, 802.1Q and QinQ

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x 10/100/1000BASE-T RJ-45 PoE+
- Uplinks: 4 x fixed 1G/10G SFP+
- Console port: 1 x RJ-45 serial
- PoE+ budget: 370 W internal PSU, up to 740 W with HPE RPS1600
- Switching and routing capacity: 176 Gbps
- Throughput: 131 Mpps
- Latency (1000 Mb): less than 5 µs
- Latency (10 Gbps): less than 3 µs
- Routing table size: 512 entries (IPv4), 256 entries (IPv6)
- MAC address table size: 16384 entries
- Memory: 512 MB SDRAM, 256 MB flash
- Dimensions (W x D x H): 44 x 36 x 4.36 cm, 1U
- Weight: 8 kg
- Mounting: 19-inch EIA rack or cabinet
- Input voltage: 100-240 VAC, 50/60 Hz, 10 A
- Maximum power rating: 478 W
- Idle power: 47 W
- Operating temperature: -5 to 45 C
- Operating humidity: 10% to 90%, noncondensing
- Acoustic: 43.5 dB low-speed fan, 52.8 dB high-speed fan
- Management: IMC, SmartMC, CLI, web browser, SNMP

FAQs

Q: Does this switch need a separate software licence?
A: No. The EI (Enhanced Image) Comware software is included, and the embedded SmartMC management tool is provided at no additional cost.

Q: How much PoE power does it provide?
A: The internal power supply gives a 370 W PoE+ budget. Adding an HPE RPS1600 (JG136A with JG137A) raises this to 740 W.

Q: Which optics and cables work in the SFP+ ports?
A: The 4 SFP+ ports accept 1G SFPs JD118B, JD119B, JD089B, JD098B, JD099B and JD103A, and 10G SFP+ optics JD092B and JD094B. They also accept X240 10G DAC cables (JD095C, JD096C, JD097C, JG081C) and X2A0 10G AOC cables (JL290A, JL291A, JL292A).

Q: Can I stack it with other switches?
A: Yes. It supports IRF virtual stacking, which combines multiple switches into a single logical device.

Q: Does it support redundant power?
A: Yes. Redundant power is provided through the HPE RPS1600 (JG136A with JG137A). The JD183A RPS800 is not listed as supported for this model.
