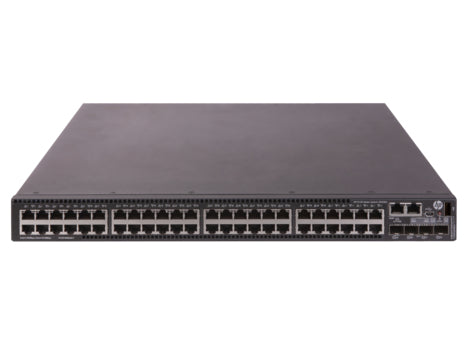

• HPE JH326A 48-port 1G PoE+ black switch with 4x 10G SFP+ uplinks

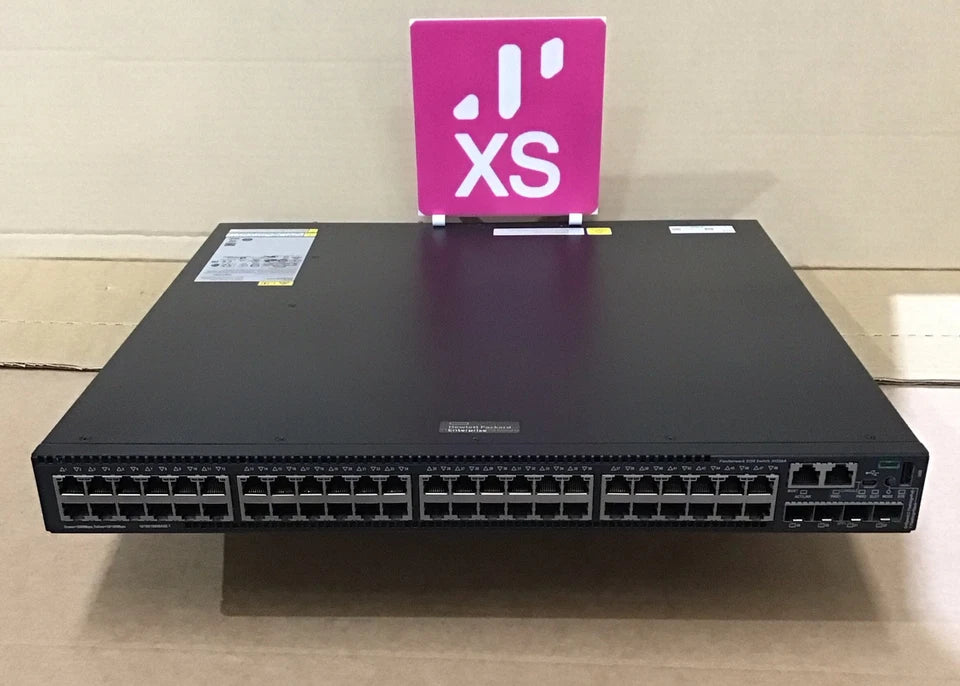

  • Black cisco 48 port 1g poe plus network switch with 4 10g sfp plus uplinks and pink xs sign on top

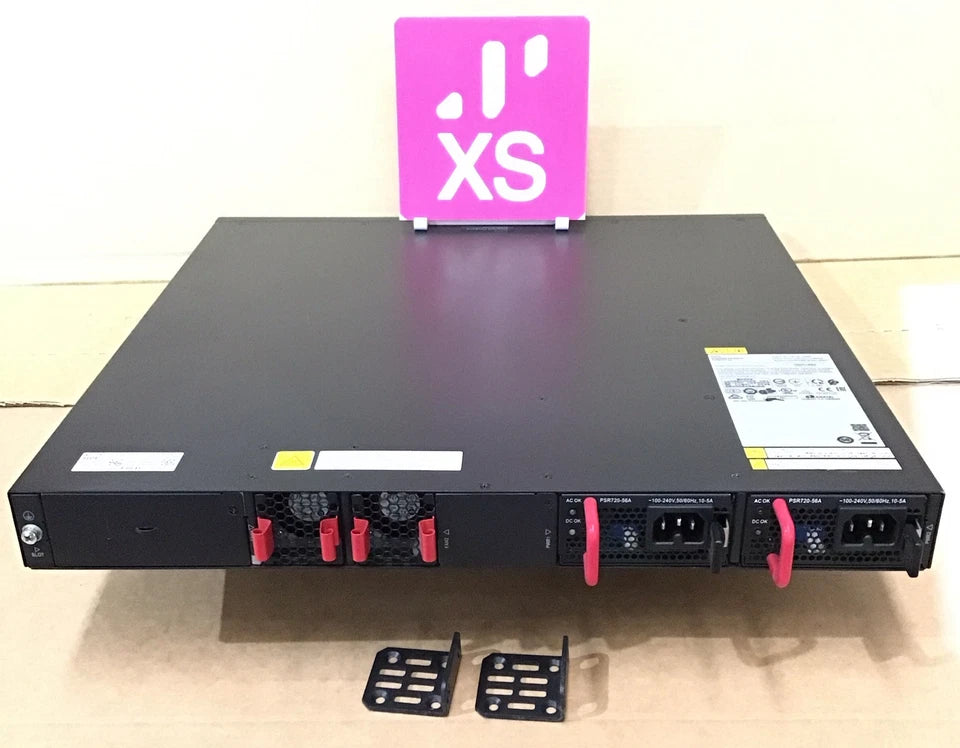

  • Black enterprise-grade hpe jh326a server rack back with red power connectors and ventilation grilles in 1u form factor
1 3

HPE

HPE JH326A | FlexNetwork 5130 HI 48-Port PoE+ Switch, 4x 10G SFP+

JH326A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

Condition
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The FlexNetwork 5130 HI is a 1U Layer 3 Gigabit access switch with 48 PoE+ ports, aimed at the edge of medium and large enterprise networks. It powers IP phones, wireless access points and cameras, and its 10GbE uplinks and IRF resilience also suit server-cluster connectivity in small data centres.

The front panel has 48 RJ45 10/100/1000 ports supporting IEEE 802.3at PoE+ at up to 30 W per port on all ports at once, plus four fixed 10GbE SFP+ uplinks and one slot for an optional 2-port expansion module. Total PoE+ budget is up to 1440 W, ranging from 450 W to 1440 W depending on the power supplies fitted. Switching and routing capacity is 216 Gbps at up to 190.5 Mpps, and up to nine chassis can be combined in one IRF stack with up to 80 Gbps of stacking bandwidth. No separate licence or subscription is needed to operate the switch. Layer 3 covers static and RIP routing.

The switch has two modular power supply slots, and at least one supply must be fitted. It works with the HPE X362 720W (JG544A) and X362 1110W (JG545A) PoE supplies, JH156A and JH157A expansion modules, and X120, X130, X240 and X2A0 optics and cables.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Intelligent Resilient Fabric (IRF) combines up to nine switches into one logical device
- PoE+ delivers up to 30 W per port on all 48 ports simultaneously
- Four built-in 10GbE SFP+ uplinks, expandable via optional module
- Static and RIP Layer 3 routing, policy-based routing and IPv6 forwarding
- OpenFlow 1.3 support for SDN
- MACsec encryption on ports 1-8
- Dual modular power supplies for redundancy
- Classifier-based QoS with SP, WRR and SP+WRR queuing, plus traffic policing
- Management via CLI, SNMP v1/v2c/v3, RMON, sFlow, LLDP and HPE IMC
- Energy Efficient Ethernet (IEEE 802.3az)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x RJ45 10/100/1000 PoE+ (IEEE 802.3at)
- Uplinks: 4 x fixed 10GbE SFP+
- Expansion: 1 module slot, up to 6 SFP+ ports or 2 x 1/10GBASE-T in total with optional module
- PoE+ budget: up to 1440 W (450 W to 1440 W depending on power supplies)
- Switching and routing capacity: 216 Gbps
- Throughput: up to 190.5 Mpps
- Latency: under 5 µs at 1 Gbps, under 3 µs at 10 Gbps
- Stacking: IRF, up to 9 chassis, up to 80 Gbps bandwidth
- MACsec: ports 1-8
- Management ports: RJ45 or mini USB console, RJ45 out-of-band port, USB 2.0
- Memory: 2 GB SDRAM, 4 MB packet buffer, 512 MB flash
- Routing table: 4096 IPv4 entries, 2048 IPv6 entries
- MAC address table: 32768 entries
- Power supply slots: 2 modular slots, 100-240 VAC, 50/60 Hz
- Power consumption: 670 W maximum, 75 W idle
- Airflow: front (port side) to back (power cord side)
- Dimensions (W x D x H): 43.99 x 46 x 4.37 cm, 1U
- Weight: 12.5 kg shipping weight
- Operating temperature: 0 to 45 C
- Mounting: EIA standard 19-inch rack

FAQs

Q: Does this switch need a licence or subscription?
A: No. No separate licence or subscription is needed to operate the switch. Layer 3 is limited to static and RIP routing.

Q: What power supplies does the JH326A need?
A: At least one and up to two modular supplies are required. It uses the HPE X362 720W (JG544A) or X362 1110W (JG545A) AC-to-56VDC PoE supplies, giving a PoE+ budget of 450 W to 1440 W.

Q: Which expansion modules fit the interface slot?
A: The slot accepts the JH156A 10GBASE-T 2-port and JH157A 10GbE SFP+ 2-port modules.

Q: Which optics and cables work with the SFP+ uplinks?
A: Supported parts include the X130 10G SR (JD092B) and LR (JD094B) transceivers, X240 10G DAC cables such as JD095C and JG081C, and X2A0 10G AOC cables JL290A, JL291A and JL292A.

Q: How many switches can be stacked together?
A: IRF stacking supports up to nine chassis in one logical device, with up to 80 Gbps of stacking bandwidth.
