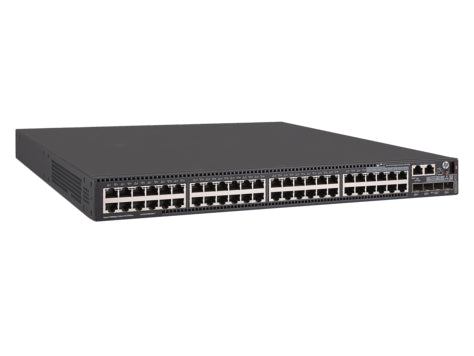

• HPE JH148A black network switch with 48x 1G PoE+ ports and 4x 10G uplinks
1 1

HPE

HPE JH148A | FlexNetwork 5510 HI 48-Port PoE+ Switch, 4x 10G SFP+

JH148A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The HPE FlexNetwork 5510 HI is a Layer 3 Gigabit access and edge switch for data centre edge, large campus and metro Ethernet networks. It also suits the core layer of small and mid-sized business networks, and its PoE+ ports power IP phones, wireless access points and security cameras.

It provides 48 autosensing 10/100/1000 RJ-45 PoE+ ports (IEEE 802.3at, up to 30 W per port) and four fixed 10GbE SFP+ uplinks. A single expansion slot adds up to six SFP+ ports, two 1/10GBASE-T ports or two 40GbE ports with an optional module. Switching and routing capacity is 336 Gbps with throughput of up to 250 Mpps. This 1-slot variant has two modular power supply bays, and the PoE+ budget ranges from 450 W up to 1440 W depending on the power supplies fitted. The power supply is ordered separately.

Layer 3 routing covers static routes, RIP, OSPF, IS-IS and BGP for IPv4 and IPv6. Intelligent Resilient Fabric (IRF) stacks up to nine switches as one logical device with up to 160 Gbps of stacking bandwidth, and MACsec is supported on ports 1 to 8. The switch is 1U and mounts in a standard 19-inch rack.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- IRF stacking of 2 to 9 switches as a single Layer 2 switch and Layer 3 router, up to 160 Gbps stacking bandwidth
- PoE+ on all 48 ports simultaneously, up to 30 W per port
- Non-blocking architecture with 336 Gbps switching capacity
- Layer 3 routing: static, RIP, OSPF, IS-IS and BGP for IPv4, plus RIPng, OSPFv3, IS-ISv6 and BGP4+ for IPv6
- OpenFlow 1.3 and MPLS/VPLS support
- MACsec on ports 1 to 8
- Resiliency with RRPP, Smart Link, DLDP, VRRP and ISSU
- Classifier-based QoS, ACLs, sFlow, RMON and SNMPv1/v2c/v3
- Energy Efficient Ethernet (IEEE 802.3az) and HPE Comware operating system

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x 10/100/1000 RJ-45 PoE+ (IEEE 802.3at, up to 30 W per port)
- Uplinks: 4 x 10GbE SFP+ fixed
- Expansion slot: 1 (up to 6 SFP+, 2 x 1/10GBASE-T or 2 x 40GbE with optional module)
- Management ports: 1 RJ-45 or USB micro-B serial console, 1 RJ-45 out-of-band management, 1 USB 2.0
- Switching and routing capacity: 336 Gbps
- Throughput: up to 250 Mpps
- Latency: less than 5 us at 1000 Mb, less than 3 us at 10 Gbps
- PoE+ budget: 450 W to 1440 W depending on power supplies
- Power supply slots: 2 (at least 1 required)
- Voltage: 100-240 VAC rated, 50/60 Hz
- Maximum power rating: 670 W, idle 75 W
- Memory: 2 GB SDRAM, 4 MB packet buffer, 512 MB flash
- Routing table: 32768 IPv4 entries, 16384 IPv6 entries
- MAC address table: 32768 entries
- Dimensions (W x D x H): 43.99 x 46 x 4.37 cm, 1U
- Weight: 12.5 kg shipping weight
- Airflow: front (port side) to back (power cord side)
- Operating temperature: 0 to 45 C
- Operating humidity: 10% to 90%, noncondensing
- Mounting: 19-inch rack

FAQs

Q: Does the switch need a separate software licence for Layer 3 routing and IRF?
A: No separate subscription is required. It runs HPE Comware with Layer 3 routing and IRF stacking included in the feature set.

Q: What power supply does it need and how much PoE+ can it deliver?
A: It has two modular power supply slots and at least one power supply is required. The PoE+ budget ranges from 450 W up to 1440 W depending on the type and number of power supplies fitted, with dual supplies needed for the full 1440 W.

Q: Which expansion modules work with this switch?
A: The optional modules are the HPE 5510 QSFP+ 2-port Module (JH155A), the HPE 5130/5510 10GBASE-T 2-port Module (JH156A) and the HPE 5130/5510 10GbE SFP+ 2-port Module (JH157A).

Q: How many switches can be stacked with IRF?
A: IRF supports up to nine switches operating as one logical device, with up to 160 Gbps of stacking bandwidth over QSFP+ links.

Q: What is the airflow direction?
A: Airflow runs front (port side) to back (power cord side).
