• HPE JG939A 48-port Gigabit Ethernet switch with 2x 10G SFP+ uplinks
1 1

HPE

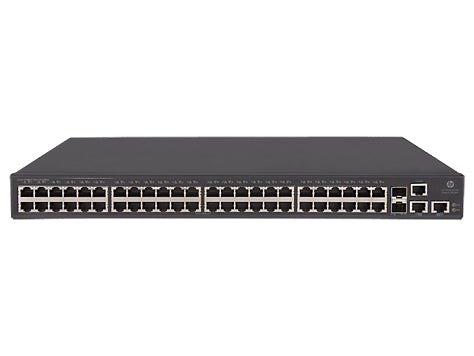

HPE JG939A | FlexNetwork 5130 48-Port Gigabit Switch, 2x SFP+, 2x 10GBASE-T

JG939A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The HPE FlexNetwork 5130 EI is a 1U Layer 2/Layer 3 managed Gigabit Ethernet access switch built for network edge access and server connectivity in small data centres. It runs the Comware operating system and can be stacked with other units using Intelligent Resilient Framework (IRF), which presents several switches as one logical device.

The JG939A provides 48 autosensing 10/100/1000 RJ-45 ports with no PoE. Uplink and stacking connectivity comes from 2 fixed SFP+ ports (1G/10G) and 2 RJ-45 1/10GBASE-T ports, plus an RJ-45 serial console port. Switching capacity is 176 Gbps with forwarding of up to 130.9 Mpps, a 16,384-entry MAC address table, 1.5 MB packet buffer and 512 MB flash. Layer 3 support covers static routing and RIP for IPv4 and IPv6. Latency is under 5 microseconds at 1G and under 3 microseconds at 10G.

The SFP+ ports accept the genuine HPE X130 10G SFP+ SR (JD092B) and LR (JD094B) transceivers and X240 10G DAC cables (JD095C, JD096C, JD097C, JG081C), as well as a range of 1G SFPs including JD118B, JD119B and JD089B. It includes an internal AC power supply and mounts in a standard 19-inch rack. Optional external redundant power is available through the HPE RPS 800 (JD183A) or RPS1600 (JG136A with JG137A).

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Intelligent Resilient Framework (IRF) combines stacked switches into one logical Layer 2 switch and Layer 3 router
- Static routing and RIPv1/RIPv2 for IPv4 and IPv6
- Up to 4,094 simultaneous VLAN IDs with 802.1ad QinQ and up to 64 MSTP instances
- Smart Link with 50 ms failover and jumbo frames up to 9 KB
- Hardware wire-speed ACLs for Layer 2 to Layer 4, including IPv6 ACLs
- Security with 802.1X, MAC-based authentication, port security, DHCP protection and dynamic ARP protection
- OpenFlow 1.3 support for SDN deployments
- Management over SNMP v1/v2c/v3, SSHv2 and HTTPS with RADIUS/HWTACACS
- Energy Efficient Ethernet (802.3az) with variable-speed fans

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x RJ-45 autosensing 10/100/1000
- Uplinks: 2 x fixed SFP+ (1000/10000)
- Additional ports: 2 x RJ-45 1/10GBASE-T
- Console: 1 x RJ-45 serial console port
- PoE: None
- Switching capacity: 176 Gbps
- Throughput: up to 130.9 Mpps
- Latency: under 5 us at 1G, under 3 us at 10G
- MAC address table: 16,384 entries
- Routing table: 512 entries (IPv4), 256 entries (IPv6)
- Memory: 1 GB SDRAM, 1.5 MB packet buffer, 512 MB flash
- Routing: static and RIP, IPv4 and IPv6
- Stacking: IRF
- Form factor: 1U, 19-inch rack mount
- Dimensions (W x D x H): 44 x 27 x 4.37 cm
- Weight: 5 kg
- Power supply: internal, 100-240 VAC, 50/60 Hz
- Maximum heat dissipation: 122/184 BTU/hr
- Operating temperature: -5 to 45 C
- Operating humidity: 10% to 90%, noncondensing
- Acoustic noise: 43.1 dB low-speed fan, 53.4 dB high-speed fan
- Management: IMC, CLI, web browser, SNMP
- Certifications: IPv6 Ready, RoHS, FCC Class A

FAQs

Q: Does this switch provide PoE?
A: No. The JG939A is a non-PoE model, so PoE devices such as access points or phones need a separate PoE source.

Q: Does it need a separate licence for its features?
A: No separate licence is required. The Comware feature set, including static and RIP routing and IRF stacking, is built in.

Q: Which optics and cables work in the SFP+ ports?
A: The SFP+ ports take the HPE X130 10G SFP+ SR (JD092B) and LR (JD094B) transceivers and X240 10G DAC cables (JD095C, JD096C, JD097C, JG081C). 1G SFPs such as JD118B (SX), JD119B (LX) and JD089B (RJ45 T) are also supported.

Q: Can it be powered redundantly?
A: Yes. It has an internal power supply and can use an external HPE RPS 800 (JD183A) or RPS1600 (JG136A with JG137A) for redundant power.

Q: How are the two 10GBASE-T ports used?
A: The two RJ-45 1/10GBASE-T ports can serve as high-speed uplinks or as IRF stacking links, alongside the two SFP+ ports.
