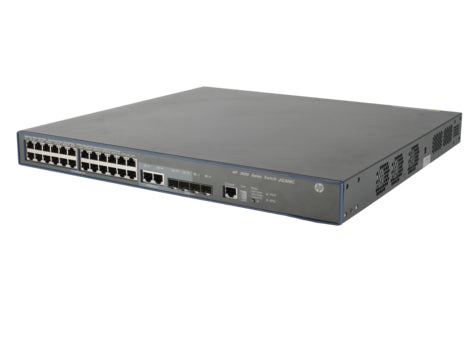

• HPE JG306C black switch with 24x FE PoE+ ports, 4x 1G uplinks, fans
1 1

HPE

HPE JG306C | 3600 v2 24-Port 10/100 PoE+ Switch, 370W AC, SI L3

JG306C

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The HPE FlexNetwork 3600 v2 SI is a managed Fast Ethernet access switch for the enterprise and SMB network edge. It suits sites that need to power IP phones, wireless access points and IP security cameras over PoE+ while keeping basic Layer 3 routing and simple stacking.

The JG306C provides 24 RJ45 autosensing 10/100 PoE+ ports (IEEE 802.3at) alongside 2 dual-personality 10/100/1000 ports and 4 SFP 1000 Mbps ports. PoE+ budget is 370 W on AC input and 720 W on DC input, with maximum power consumption of 460 W on AC and 795 W on DC. Switching and routing capacity is 12.8 Gb/s, with 9.5 million pps throughput, non-blocking wire-speed performance and a 2 MB packet buffer. The SI (Standard Image) software provides static and RIP Layer 3 routing, and IRF stacking lets up to nine switches act as one virtual switch under a single IP address. It is a 1U unit for 19-inch racks.

The four SFP ports accept HPE X120/X125 1G SFP modules (JD061A, JD062A, JD063B, JD089B, JD098B), and stacking uses the HPE FlexNetwork 3600 SFP Stacking Kit (JD324B). RPS 800 (JD183A) and RPS1600 (JG136A with JG137A) can supplement PoE power, and the switch is managed through HPE IMC, the CLI, a web browser or SNMP.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- IEEE 802.3at PoE+ delivers up to 30 W per port, with 802.3af up to 15.4 W per port
- Static and RIP Layer 3 routing
- IRF stacking creates a virtual switch of up to nine units with single IP management
- Non-blocking wire-speed performance
- Hardware-based wire-speed ACLs and classifier-based QoS
- SmartLink 50 ms failover with STP, RSTP and MSTP support
- IEEE 802.3ad LACP with up to 24 trunks of 8 links each
- 802.1Q VLANs (4,094 IDs), Q-in-Q, GVRP and IGMP/MLD snooping
- IPv6 management support including Telnet, SNMP, DNS, DHCP and RADIUS
- Jumbo frame support up to 9,216 bytes

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 24 RJ45 autosensing 10/100 PoE+ ports (IEEE 802.3at)
- Dual-personality ports: 2 x 10/100/1000
- Uplink ports: 4 x SFP 1000 Mbps
- Console port: 1 x RJ45 serial
- PoE+ budget: 370 W on AC input, 720 W on DC input
- Maximum power consumption: 460 W on AC input, 795 W on DC input
- Power input: 100-240 VAC, 50/60 Hz, or -52 to -55 VDC
- Switching/routing capacity: 12.8 Gb/s
- Throughput: 9.5 million pps (64-byte packets)
- Switch fabric speed: 27.5 Gbps
- Latency: less than 6 µs at 100 Mb, less than 5 µs at 1000 Mb
- Memory: 256 MB SDRAM, 128 MB flash, 2 MB packet buffer
- Routing table size: 2048 IPv4 entries
- Dimensions (W x D x H): 44.0 x 42.0 x 4.36 cm, 1U
- Weight: 10 kg
- Mounting: 19-inch rack or equipment cabinet
- Operating temperature: 0 to 50 C
- Operating humidity: 5% to 95%, non-condensing
- Maximum heat dissipation: 143 BTU/hr
- Acoustic: 44.7 dB low-speed fan, 53.8 dB high-speed fan

FAQs

Q: Does the JG306C need a separate licence?
A: No. The SI (Standard Image) software provides static and RIP Layer 3 routing, and no separate licence or subscription is needed.

Q: How much PoE power does it provide?
A: The PoE+ budget is 370 W with AC input and 720 W with DC input. Each port supplies up to 30 W under 802.3at.

Q: Which SFP modules does it take?
A: The four SFP ports accept HPE X120/X125 1G SFP modules, including JD061A, JD062A, JD063B, JD089B and JD098B.

Q: Can I add a redundant power supply?
A: Yes. It supports an external redundant power supply, with HPE RPS 800 (JD183A) or RPS1600 (JG136A with JG137A power supply) to supplement PoE power.

Q: How do I stack multiple switches?
A: IRF stacking links up to nine switches into one virtual switch with a single IP address, using the HPE FlexNetwork 3600 Switch SFP Stacking Kit (JD324B).
