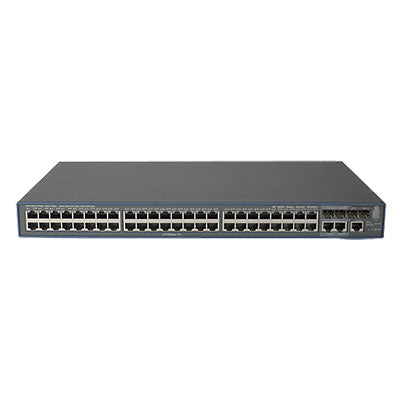

• HPE JG305B 48-port black network switch with RJ-45 ports
1 1

HPE

HPE JG305B | FlexNetwork 3600 v2 48-Port 10/100 Non-PoE Switch, L3

JG305B

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The FlexNetwork 3600 v2 SI is a 1U managed Layer 3 Fast Ethernet edge switch from the HPE 3600 v2 SI range, built for enterprise and SMB networks that need robust edge switching, including converged networks. This 48-port, non-PoE model suits access layers where end devices are powered separately.

The switch provides 48 autosensing 10/100 RJ-45 ports, two dual-personality 10/100/1000 SFP ports and two 1000 Mbps SFP ports for uplinks. It delivers 17.6 Gbps of routing and switching capacity, up to 13.1 Mpps throughput with 64-byte packets and a 55 Gbps switch fabric. Memory is 256 MB SDRAM and 128 MB flash, with a 4 MB packet buffer. It draws a maximum of 41 W from its internal 100-240 VAC supply. Standard Image software provides static and RIP Layer 3 routing, and up to nine units can be stacked as one virtual fabric using IRF.

Supported SFP options include the HPE X120 and X125 1G modules JD061A, JD062A, JD063B, JD089B, JD098B, JD099B, JD118B and JD119B. The switch can be managed through the CLI, web interface, SNMP or HPE Intelligent Management Center (IMC).

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Static and RIP Layer 3 routing
- IRF stacking of up to nine switches managed as a single virtual fabric with one IP address
- Enterprise-level non-blocking performance
- Classifier-based QoS with SP, WRR, WFQ and WRED queuing and traffic policing
- RRPP ring protection with sub-50 ms recovery plus STP/RSTP loop prevention
- Integrated security enforcement with HWTACACS command authorisation and manager/operator privilege levels
- SNMPv1/v2c/v3, RMON and local and remote traffic mirroring
- Secure HTTPS web GUI and CLI management

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x RJ-45 autosensing 10/100 (non-PoE)
- Uplinks: 2 x SFP dual-personality 10/100/1000 and 2 x SFP 1000 Mbps
- Console: 1 x RJ-45 serial console port
- Routing/switching capacity: 17.6 Gbps
- Switch fabric speed: 55 Gbps
- Throughput: up to 13.1 Mpps (64-byte packets)
- Latency: under 6 µs (100 Mb), under 5 µs (1000 Mb)
- Memory: 256 MB SDRAM, 128 MB flash, 4 MB packet buffer
- Routing table size: 2048 IPv4 entries
- Power supply: internal AC, 100-240 VAC, 50/60 Hz
- Maximum power rating: 41 W
- Maximum heat dissipation: 140 BTU/hr
- Dimensions (W x D x H): 43.99 x 26.01 x 4.37 cm, 1U
- Weight: 4 kg
- Mounting: 19-inch rack mountable
- Operating temperature: 0 to 50 C
- Operating humidity: 5% to 95%, noncondensing
- Acoustic: 43.2 dB (low-speed fan), 50 dB (high-speed fan)
- Management: IMC, CLI, web browser, SNMP

FAQs

Q: Does this switch support PoE?
A: No. The JG305B is a non-PoE model. For a 48-port PoE+ version, look at the JG307C.

Q: Does it need a separate software licence?
A: No separate licence is required. The Standard Image (SI) software ships with the switch and provides static and RIP Layer 3 routing.

Q: Which SFP modules can I use in the uplink slots?
A: Supported HPE 1G SFP modules include JD061A, JD062A, JD063B, JD089B, JD098B, JD099B, JD118B and JD119B, covering SX, LX, long-haul, BiDi and RJ45 options.

Q: How does it differ from the JG304B and JG307C?
A: The JG305B has 48 non-PoE 10/100 ports. The JG304B has 24 non-PoE ports, while the JG306C and JG307C add PoE+ with 24 and 48 ports respectively.

Q: Can multiple units be stacked?
A: Yes. IRF stacking lets up to nine switches be managed as a single virtual fabric with one IP address.
