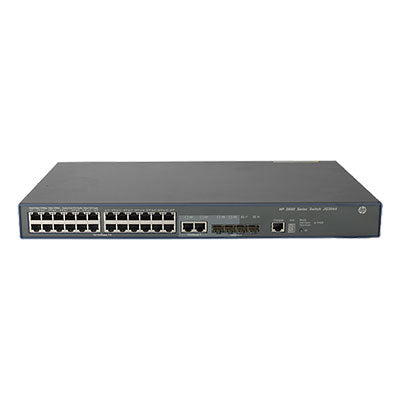

• HPE JG304B 2910 Switch with Black Housing and Silver Ports
1 1

HPE

HPE JG304B | 3600 v2 24-Port 10/100 Switch, 4x SFP, SI

JG304B

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The HPE 3600 v2 SI is a 1U Layer 2 and Layer 3 managed Fast Ethernet switch built for the enterprise network edge and access layer. It suits large enterprise and SMB networks, including converged environments that need QoS, security and resilient connectivity.

It provides 24 non-PoE RJ-45 autosensing 10/100 ports and four Gigabit SFP uplink slots, two of which are dual-personality SFP and 10/100/1000 ports. Routing and switching capacity is 12.8 Gbps with up to 9.5 Mpps throughput, backed by 256 MB SDRAM, 128 MB flash and a 2 MB packet buffer. This SKU runs the SI (Standard Image) software, which is included with the switch with no separate licence or subscription required. Static and RIP routing, IRF stacking and hardware-based ACLs are supported.

Power comes from an internal AC supply rated 100-240 VAC at 26 W maximum. Supported SFP transceivers include JD061A, JD062A, JD063B, JD089B, JD098B, JD099B, JD118B and JD119B, and the JD324B SFP stacking kit is available for stacking.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Static and RIP (IPv4) and RIPng (IPv6) Layer 3 routing
- Intelligent Resilient Fabric (IRF) stacking, up to nine switches managed as one
- Hardware wirespeed ACLs with 802.1X, web and MAC authentication and per-user ACLs
- Classifier-based QoS on L2/L3/L4 criteria with SP, WRR, WFQ and WRED queuing
- Secure management over SSHv2, SSL/HTTPS and SNMPv3, plus IPv6 management
- Smart Link (50 ms failover), RRPP, MSTP/RSTP, VRRP and LACP resiliency
- 802.1Q VLANs (4,094 IDs), QinQ, GVRP, IGMP/MLD snooping and jumbo frames to 9216 bytes
- sFlow, RMON, port mirroring, LLDP and Ethernet OAM for monitoring and troubleshooting

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 24 RJ-45 autosensing 10/100 ports, Auto-MDIX, half or full duplex
- Uplink ports: 2 dual-personality SFP / 10/100/1000 ports
- Uplink ports (SFP only): 2 SFP 1000 Mbps ports
- PoE: Not supported (non-PoE)
- Console: 1 RJ-45 serial console port
- Routing/switching capacity: 12.8 Gbps
- Throughput: up to 9.5 Mpps
- Latency (100 Mb): less than 6 µs
- Latency (1000 Mb): less than 5 µs
- Memory: 256 MB SDRAM, 128 MB flash, 2 MB packet buffer
- Routing table size: 2048 entries (IPv4)
- Software image: SI (Standard Image)
- Form factor: 1U, 43.99 x 26.01 x 4.37 cm
- Weight: 5 kg
- Mounting: EIA-standard 19 in. rack or equipment cabinet
- Power supply: internal AC, 100-240 VAC, 50/60 Hz
- Maximum power: 26 W
- Maximum heat dissipation: 89 BTU/hr
- Operating temperature: 0 to 50 C
- Operating humidity: 5% to 95%, noncondensing
- Storage temperature: -40 to 70 C
- Acoustic: 39.5 dB low-speed fan, 48.4 dB high-speed fan
- Management: IMC, CLI, web browser, SNMP

FAQs

Q: Does this switch need a licence or subscription?
A: No. The SI in the model name means Standard Image software, which is included with the switch. No separate licence or subscription is needed.

Q: Does it provide PoE?
A: No. This is the non-PoE model. It has an internal AC power supply rated 100-240 VAC at 26 W maximum.

Q: Which SFP transceivers does it support?
A: Supported SFPs include JD061A, JD062A, JD063B, JD089B, JD098B, JD099B, JD118B and JD119B.

Q: Can it be stacked or given redundant power?
A: Yes. The JD324B SFP stacking kit enables IRF stacking, and optional external redundant power is available with the HP RPS 800 (JD183A) or HP RPS1600 (JG136A with JG137A supply).

Q: How does it differ from the PoE version of the 3600 v2?
A: This SKU has 24 non-PoE 10/100 ports and four SFP uplinks, so it does not supply power to devices. It runs the SI (Standard Image) software.
