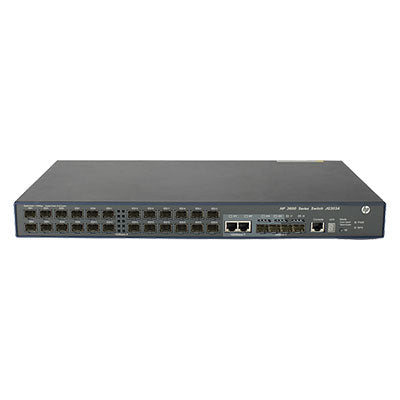

• HPE JG303B 24-port 1GbE SFP switch with 4x uplinks, black
1 1

HPE

HPE JG303B | 3600 v2 EI 24-Port 100M SFP Switch, 4x 1G SFP

JG303B

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The HPE 3600-24-SFP v2 EI is a 1U Layer 2/3 managed switch from the FlexNetwork 3600 v2 EI series, built for the enterprise network edge and access layer. It suits fibre-based 100BASE-FX deployments that need Gigabit SFP uplinks or stacking and Layer 3 routing at the edge.

It provides 24 SFP 100 Mb/s ports (100BASE-X), four SFP 1000 Mb/s ports for stacking and uplinks, and two dual-personality Gigabit ports that run as 10/100/1000BASE-T or SFP. This is a non-PoE model. Routing and switching capacity is 12.8 Gb/s with throughput of up to 9.5 million pps. The EI (Enhanced Image) software feature set is built in, so no separate licence is needed to operate it. Up to nine switches can be combined with IRF into a single virtual switch.

An external redundant power supply is supported (HPE RPS800 JD183A or RPS1600 JG136A). Compatible SFP options include the HPE X110 100M SFP LC LX (JD120B) and X110 100M SFP LC FX (JD102B), along with X120 1G SFP modules such as JD118B, JD119B and JD089B. The HPE 3600 Switch SFP Stacking Kit (JD324B) is available for stacking.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Layer 2/3 switching with advanced L3 and multicast routing
- Intelligent Resilient Framework (IRF) stacking of up to nine switches as one virtual switch
- Non-blocking wire-speed performance with hardware-based ACLs
- Classifier-based L2/L3/L4 QoS with strict priority, WRR, WFQ and WRED queuing
- RRPP and SmartLink with failover in under 50 ms
- STP/RSTP/MSTP and IEEE 802.3ad LACP link aggregation
- 802.1Q VLANs, Q-in-Q, GVRP, IGMP/MLD snooping and jumbo frames up to 9,216 bytes
- IPv6 management and routing, SNMPv1/v2c/v3, RMON, sFlow and LLDP
- Optional external redundant power supply

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 24 x SFP 100 Mb/s (100BASE-X)
- Uplink/stacking ports: 4 x SFP 1000 Mb/s
- Dual-personality ports: 2 x 1000 Mb/s (10/100/1000BASE-T or SFP), Auto-MDIX
- PoE: Non-PoE
- Console: 1 x RJ-45 serial console port
- Routing/switching capacity: 12.8 Gb/s
- Throughput: up to 9.5 million pps
- 100 Mb latency: less than 6 microseconds
- 1000 Mb latency: less than 5 microseconds
- Routing table size: 12,000 entries (IPv4)
- MAC address table size: 32,000 entries
- Memory: 256 MB SDRAM, 128 MB flash
- Packet buffer size: 2 MB
- Power input: 100-240 VAC, 50/60 Hz, or -48 to -60 VDC
- Maximum power rating: 60 W
- Maximum heat dissipation: 205 BTU/hr
- Dimensions (W x D x H): 43.99 x 26.01 x 4.37 cm, 1U
- Weight: 5 kg
- Mounting: EIA-standard 19 in. rack or equipment cabinet
- Operating temperature: 0 to 50 C
- Operating relative humidity: 5% to 95%, noncondensing
- Acoustic: 43.5 dB (low-speed fan), 50.1 dB (high-speed fan)
- Management: HPE IMC, command-line interface, web browser, SNMP

FAQs

Q: Does the JG303B need a separate software licence?
A: No. The EI (Enhanced Image) software feature set is built into this model, so no separate licence or subscription is needed to operate it.

Q: Does this switch support PoE?
A: No. The JG303B is a non-PoE model. It runs from 100-240 VAC or a -48 to -60 VDC input with a maximum power rating of 60 W.

Q: Which SFP modules suit the 24 x 100 Mb/s SFP ports?
A: The HPE X110 100M SFP LC LX (JD120B) and X110 100M SFP LC FX (JD102B) are matched to the 100 Mb/s ports. The four Gigabit SFP ports take X120 1G SFP modules such as JD118B (SX), JD119B (LX) and JD089B (RJ45 T).

Q: How do I stack these switches?
A: The four Gigabit SFP ports can be used for stacking, and IRF lets up to nine switches operate as a single virtual switch. The HPE 3600 Switch SFP Stacking Kit (JD324B) is available for stacking.

Q: Can it use a redundant power supply?
A: Yes. It supports an external redundant power supply, either the HPE RPS800 (JD183A) or the RPS1600 (JG136A).
