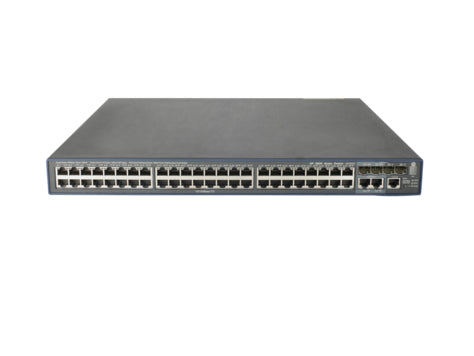

HPE JG302C | FlexNetwork 3600 48-Port PoE+ Switch, 320W, EI v2

JG302C

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The FlexNetwork 3600 v2 EI is a Layer 3 Fast Ethernet PoE+ switch built for the enterprise network edge and access layer. It suits deployments that need to power IP phones, wireless access points and IP cameras over standard Ethernet while keeping advanced routing and security at the edge.

The switch provides 48 autosensing 10/100 RJ45 ports with IEEE 802.3at PoE+, backed by a 320W PoE budget on AC input. Uplinks are four SFP 1000 Mb/s ports plus two dual-personality 10/100/1000 or SFP ports. Switching capacity is 17.6 Gb/s, with throughput up to 13.1 million pps and a 55 Gbps switch fabric. It carries 256 MB SDRAM, 128 MB flash and a 4 MB packet buffer, and supports up to 12,000 IPv4 routes and 32,000 MAC addresses.

The EI v2 designation refers to the Enhanced Image Layer 3 software, so advanced L3 and multicast routing are available without a separate subscription. IRF stacking lets multiple units operate as one logical switch, and the 1U chassis mounts in a standard 19-inch rack. Redundant power can be added with the HPE RPS 800 (JD183A) or RPS1600 (JG136A with JG137A).

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Layer 3 routing and multicast routing with the Enhanced Image (EI) software
- Intelligent Resilient Fabric (IRF) for automated stacking and switching fabric setup
- PoE+ (802.3at) on all 48 Fast Ethernet ports for phones, access points and cameras
- Integrated and distributed security enforcement at the network edge
- QoS and traffic prioritisation for converged voice, video and data networks
- Enterprise-level non-blocking performance
- Green IT port shut-off for unused ports to improve power efficiency
- Optional external redundant power system to extend the PoE budget

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x RJ45 autosensing 10/100 PoE+ (IEEE 802.3at)
- Uplinks: 4 x SFP 1000 Mb/s
- Dual-personality ports: 2 x 10/100/1000 (1000BASE-T) or SFP
- Console: 1 x RJ45 serial
- PoE power: 320W on AC input (720W on DC input)
- Maximum power rating: 440W on AC input (820W on DC input)
- Switching capacity: 17.6 Gb/s
- Throughput: up to 13.1 million pps
- Switch fabric speed: 55 Gbps
- Latency: under 6 µs at 100 Mb, under 5 µs at 1000 Mb
- Memory: 256 MB SDRAM, 128 MB flash, 4 MB packet buffer
- Routing table size: 12,000 IPv4 entries
- MAC address table size: 32,000 entries
- AC input: 100-240 VAC, 50/60 Hz
- DC input: -52 to -55 VDC
- Dimensions (W x D x H): 44 x 42 x 4.36 cm, 1U
- Weight: 10 kg
- Operating temperature: 0 to 50 C
- Operating humidity: 5% to 95%, noncondensing
- Storage temperature: -40 to 70 C
- Acoustic noise: 43.5 dB low-speed fan, 55 dB high-speed fan
- Management: Intelligent Management Center (IMC), CLI, web browser, SNMP

FAQs

Q: Does this switch need a separate software licence?
A: No. The EI v2 in the model name refers to the Enhanced Image Layer 3 software that ships with the switch, so no separate subscription is required.

Q: How much PoE power does it provide?
A: It provides 320W of PoE+ budget on AC input. With DC input the PoE budget rises to 720W. The budget can also be supplemented with an external redundant power system.

Q: Which SFP transceivers work in the uplink ports?
A: The four SFP 1000 Mb/s ports accept HPE X120/X125 1G SFP transceivers: JD061A, JD062A, JD063B, JD089B (RJ45 T), JD098B, JD099B, JD118B (SX) and JD119B (LX).

Q: Can I add redundant power?
A: Yes. The HPE RPS 800 (JD183A) or the HPE RPS1600 (JG136A with JG137A PSU) can be used as an external redundant power system and to supplement the PoE budget.

Q: Does it support stacking?
A: Yes. IRF stacking is supported, allowing multiple switches to operate as a single logical unit. An SFP stacking kit (JD324B) is listed among the compatible accessories.
