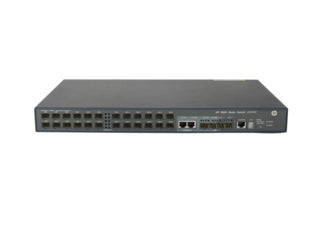

• HPE JG299B black 24-port 10/100 switch with 4x 1G uplinks
1 1

HPE

HPE JG299B | FlexNetwork 3600 24-Port Fast Ethernet Switch, EI

JG299B

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The HPE FlexNetwork 3600 v2 EI is a 1U Layer 3 managed Fast Ethernet switch built for the enterprise network edge. It suits access-layer deployments that need advanced Layer 3 and multicast routing, as well as converged voice and data networks where resilient stacking matters.

This model provides 24 RJ-45 autosensing 10/100 ports with no PoE, four SFP 1000 Mbps ports and two dual-personality 10/100/1000 or SFP ports that can be used for uplinks or IRF stacking. Routing and switching capacity is 12.8 Gbps with up to 9.5 Mpps throughput. The EI in the name denotes the Enhanced Image software feature set, which brings L3 and multicast routing including PIM-DM, PIM-SM and MSDP. Power comes from an internal AC supply rated 100-240 VAC with a 31 W maximum.

The SFP ports accept the HPE X120 and X125 1G SFP range, including the JD061A, JD062A, JD063B, JD089B, JD098B, JD099B, JD118B and JD119B. Management is available through the command line, a secure web interface, SNMP and HPE IMC.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Intelligent Resilient Fabric (IRF) stacking of up to nine switches under a single IP address
- Advanced Layer 3 and multicast routing with PIM-DM, PIM-SM and MSDP
- Classifier-based QoS with SP, WRR, WFQ and WRED queuing plus traffic policing
- RRPP ring resiliency with failover under 50 ms
- Port isolation, BPDU and root guard, DHCP protection, dynamic ARP protection and IP Source Guard
- SNMPv1/v2c/v3, RMON, sFlow, HTTPS web GUI, CLI and IPv6 management
- LLDP, LLDP-MED, voice VLAN, IGMP snooping and multicast VLAN
- Jumbo frame support up to 9216 bytes

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 24 x RJ-45 autosensing 10/100 (non-PoE)
- SFP ports: 4 x SFP 1000 Mbps
- Dual-personality ports: 2 x 10/100/1000 / SFP 1000 Mbps
- Console port: 1 x RJ-45 serial
- Switching capacity: 12.8 Gbps
- Throughput: up to 9.5 Mpps
- Switch fabric speed: 27.5 Gbps
- 100 Mb latency: less than 6 microseconds
- 1000 Mb latency: less than 5 microseconds
- MAC address table: 32000 entries
- IPv4 routing table: 12000 entries
- Memory: 256 MB SDRAM, 128 MB flash
- Packet buffer: 2 MB
- Dimensions (W x D x H): 43.99 x 26.01 x 4.37 cm, 1U
- Weight: 5 kg
- Power: 100-240 VAC, 50/60 Hz, 31 W maximum
- Heat dissipation: 106 BTU/hr maximum
- Operating temperature: 0 to 50 C
- Operating humidity: 5% to 95%, noncondensing
- Acoustic: 42.8 dB low-speed fan, 49.9 dB high-speed fan

FAQs

Q: Does the JG299B provide PoE?
A: No. This model has no PoE on its 24 10/100 ports. PoE+ is available on the JG301C and JG302C siblings in the same series.

Q: What does EI mean for software and licensing?
A: EI refers to the Enhanced Image feature set, which includes advanced Layer 3 and multicast routing. It ships with the switch and no separate licence is stated for it.

Q: Which SFP modules work in the 1G SFP ports?
A: The SFP 1000 Mbps ports accept the HPE X120 and X125 1G SFP range, including JD061A, JD062A, JD063B, JD089B, JD098B, JD099B, JD118B and JD119B.

Q: Can it be stacked?
A: Yes. The two dual-personality Gigabit ports can be used for IRF stacking, forming a virtual fabric of up to nine switches managed from a single IP address.

Q: What power supply does it use?
A: It has an internal AC supply rated 100-240 VAC at 50/60 Hz, with a maximum power rating of 31 W.
