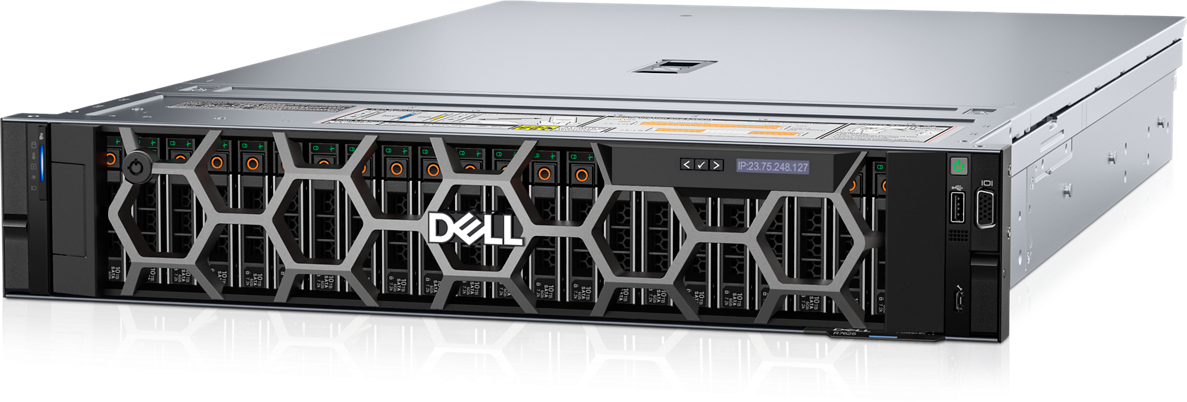

• Dell R7625 2U rack server with hexagonal panel and silver finish
1 1

Dell

Dell R7625 | PowerEdge R7625 2U Dual-Socket AMD EPYC 9004 Server

R7625

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

 Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The PowerEdge R7625 is a 2U, dual-socket rack server from the 16th generation PowerEdge range, built on 4th Gen AMD EPYC 9004 Series processors. It is aimed at high performance compute, virtual desktop infrastructure, virtualisation and data analytics workloads that need high core counts, memory density and GPU or NVMe expansion.

It supports up to two AMD EPYC 9004 processors with up to 128 cores each, and 24 DDR5 DIMM slots for up to 6 TB of RDIMM at speeds up to 4800 MT/s. Front storage options include up to 24 x 2.5-inch drives, up to 12 x 3.5-inch drives, or up to 32 x EDSFF E3.S Gen5 NVMe drives. Up to eight PCIe slots mix Gen5 and Gen4, and the chassis can host up to 2 x 300 W double-wide or 6 x 75 W single-wide GPUs. Hot-swap redundant power supplies range from 800 W Platinum up to 3200 W Titanium. Cooling is by air, with optional Direct Liquid Cooling as a rack-level solution.

Management is handled by iDRAC9 with Redfish API support, and the server works with PERC H965i, H755, H755N and H355 RAID controllers, the HBA355i and HBA355e, and a BOSS-N1 boot card. Supported operating systems and hypervisors include Ubuntu Server, Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 4th Gen AMD EPYC processors with up to 128 cores per socket for dense compute
- DDR5-4800 memory and PCIe Gen5 for higher memory and I/O bandwidth
- Optional Direct Liquid Cooling for high-performance processors
- GPU acceleration with up to 6 single-wide or 2 double-wide full-length cards
- Flexible E3.S NVMe storage with hardware RAID support for NVMe
- Cyber Resilient Architecture with Silicon Root of Trust, Secure Boot, AMD SME and SEV
- Dell OpenManage and iDRAC9 for one-to-many management and automation
- Optional LCD bezel or security bezel

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 2U rack server, dual socket
- Processor: Up to 2 x AMD EPYC 4th Gen 9004 Series, up to 128 cores per processor
- Memory: 24 DDR5 DIMM slots, up to 6 TB RDIMM, speeds up to 4800 MT/s, registered ECC DDR5 only
- Front drive bays: Up to 24 x 2.5-inch, up to 12 x 3.5-inch, or up to 32 x EDSFF E3.S Gen5 NVMe
- Rear drive bays: Up to 4 x 2.5-inch SAS/SATA/NVMe, or up to 4 x E3.S NVMe Gen5
- Internal RAID: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
- Boot: BOSS-N1 with 2 x M.2 NVMe SSDs (hardware RAID) or USB
- External HBA: HBA355e (non-RAID)
- Software RAID: S160
- PCIe: Up to 8 slots, mixing Gen5 and Gen4 (x8 and x16)
- GPU support: Up to 2 x 300 W double-wide or 6 x 75 W single-wide
- Power supplies: Hot-swap redundant, 800 W Platinum up to 3200 W Titanium, plus 1100 W -48 to -60 VDC option
- Cooling: Air cooling, optional Direct Liquid Cooling (rack solution requiring manifolds and CDU)
- Fans: Up to 6 hot-plug High performance Silver or Gold fans
- Embedded NIC: 2 x 1GbE LOM (optional), 1 x OCP 3.0 card (optional)
- Front ports: 1 x iDRAC Direct (Micro-AB USB), 1 x USB 2.0, 1 x VGA
- Rear ports: 1 x dedicated iDRAC Ethernet, 1 x USB 2.0, 1 x USB 3.0, optional serial and VGA
- Management: iDRAC9, iDRAC Direct, Redfish RESTful API, iDRAC Service Module, Quick Sync 2
- Dimensions (H x W x D): 86.8 mm x 482 mm x 772.13 mm with bezel

FAQs

Q: Does the R7625 need a licence?
A: No licence is needed for the base server. iDRAC9 ships with a base licence, and features such as System Lockdown require iDRAC9 Enterprise or Datacenter. Operating system and hypervisor licences are separate.

Q: Which power supplies does it support?
A: It uses hot-swap redundant power supplies from 800 W Platinum up to 3200 W Titanium, including 277 VAC and 336 VDC options and 1100 W -48 to -60 VDC. The PSU is selected at configuration.

Q: Can it take GPUs?
A: Yes. It supports up to 2 x 300 W double-wide or up to 6 x 75 W single-wide GPUs, which suits HPC, VDI and acceleration workloads.

Q: What storage controllers and drive types does it work with?
A: It works with PERC H965i, H755, H755N and H355 RAID controllers, the HBA355i and HBA355e, and a BOSS-N1 boot card. Drive options include 2.5-inch and 3.5-inch SAS/SATA, plus E3.S Gen5 NVMe.

Q: Which operating systems are supported?
A: Supported platforms include Canonical Ubuntu Server LTS, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi.
