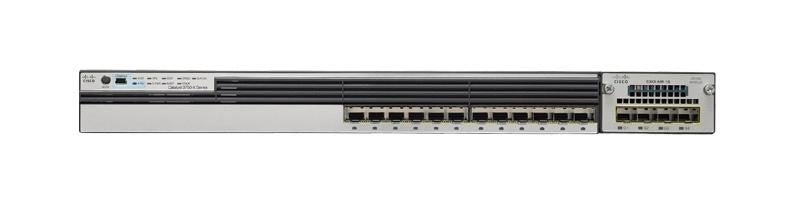

• Cisco WS-C3850-12S-S switch with sleek black silver design
1 1

Cisco

Cisco WS-C3850-12S-S | Catalyst 3850 12-Port Gigabit SFP Switch, IP Base

WS-C3850-12S-S

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3850 12-port Gigabit SFP switch is a stackable 1 RU Layer 3 access and aggregation switch built for fibre-based enterprise campus and branch deployments. It suits sites where fibre links or EMI-sensitive and secure environments are needed, and it can aggregate smaller access switches in branch locations. As part of the Catalyst 3850 family it also supports converged wired and wireless access, acting as a wireless mobility agent or controller.

This SKU provides 12 x 1 Gigabit Ethernet SFP ports and ships with the IP Base feature set and a 350W AC power supply (PWR-C1-350WAC). It is a non-PoE model. Switching capacity is 68 Gbps with a forwarding rate of 50.5 Mpps, and it supports 32,000 MAC addresses, 24,000 IPv4 routes and 4,000 VLAN IDs. Optional C3850-NM-4-1G or C3850-NM-2-10G network modules add uplink capacity.

It stacks with other Catalyst 3850 switches running the same feature set using StackWise-480 at 480 Gbps, and StackPower allows power sharing between stack members. The second power supply bay supports redundancy with the PWR-C1-715WAC, PWR-C1-1100WAC or PWR-C1-440WDC. The IP Base feature set can be upgraded to IP Services with an RTU licence.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Integrated wireless controller capability, with mobility agent by default and mobility controller mode available
- Cisco StackWise-480 stacking and StackPower power sharing
- Cisco UADP ASIC for uniform wired and wireless policy, QoS and Flexible NetFlow
- Hierarchical wireless QoS per access point, radio, SSID and user
- Modular, field-replaceable network modules, power supplies and fans
- Cisco SmartOperations including Smart Install, Auto Smartports and EEM
- Security features including 802.1X, port security, DHCP snooping, dynamic ARP inspection, IP source guard, CoPP and MACsec
- IP Base routing with static, RIP, EIGRP stub, OSPF for routed access and policy-based routing

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Fixed ports: 12 x 1 Gigabit Ethernet SFP
- Feature set: IP Base
- Default power supply: PWR-C1-350WAC, 100-240 VAC, 50-60 Hz
- PoE: None (non-PoE model)
- Uplink modules supported: C3850-NM-4-1G, C3850-NM-2-10G
- Switching capacity: 68 Gbps
- Forwarding rate: 50.5 Mpps
- Stacking bandwidth: 480 Gbps (StackWise-480)
- MAC addresses: 32,000
- IPv4 routes (ARP plus learned routes): 24,000
- Flexible NetFlow entries: 24,000 flows
- DRAM: 4 GB
- Flash: 2 GB
- VLAN IDs: 4,000
- Switched Virtual Interfaces (SVIs): 1,000
- Jumbo frame: 9198 bytes
- Wireless scale: up to 100 access points and 2000 wireless clients per switch or stack
- Dimensions (H x W x D): 4.45 x 44.5 x 45.0 cm (1 RU)
- Weight: 7.02 kg
- Operating temperature: -5 to +45 C up to 1500 m
- Storage temperature: -40 to 70 C
- Relative humidity: 10% to 95%, noncondensing
- MTBF: 315,840 hours

FAQs

Q: Does this switch need a licence?
A: It ships with the IP Base feature set. You can upgrade to IP Services with an RTU licence. Cisco DNA Essentials or Advantage term licences are only needed for SD-Access and DNA features.

Q: Does it provide PoE?
A: No. This is a non-PoE model with a 350W AC power supply, so there is no PoE budget. A second power supply bay supports redundancy.

Q: Which uplink modules does it support?
A: It supports the C3850-NM-4-1G and C3850-NM-2-10G network modules. The C3850-NM-4-10G, C3850-NM-8-10G and C3850-NM-2-40G modules are not supported on this model.

Q: How does it stack with other Catalyst 3850 switches?
A: It stacks over StackWise-480 using STACK-T1-50CM, STACK-T1-1M or STACK-T1-3M cables for 480 Gbps of stack bandwidth. Stack members must run the same feature set. StackPower cables CAB-SPWR-30CM and CAB-SPWR-150CM are used for power sharing.

Q: Which power supplies can be used for redundancy?
A: The second power supply bay accepts the PWR-C1-715WAC, PWR-C1-1100WAC or PWR-C1-440WDC alongside the default PWR-C1-350WAC.
