• Cisco WS-C3850-12S-E 12-port SFP switch with IP Services
1 1

Cisco

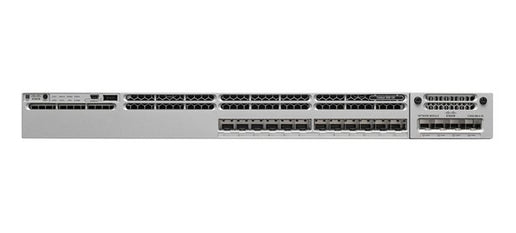

Cisco WS-C3850-12S-E | Catalyst 3850 12-Port SFP Switch, IP Services, 350W

WS-C3850-12S-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3850 12-port SFP switch is a 1 RU stackable Layer 3 access and aggregation switch built for fibre-based downlink aggregation. It suits enterprise campus access, branch offices, EMI-sensitive or secure fibre deployments, and converged wired and wireless access with integrated wireless controller capability.

It provides 12 Gigabit Ethernet SFP downlink ports with 68 Gbps switching capacity and a 50.5 Mpps forwarding rate. Optional uplink modules (C3850-NM-4-1G or C3850-NM-2-10G) add further uplink capacity. This SKU ships with the IP Services feature set, which adds advanced Layer 3 routing for IPv4 and IPv6, and a default 350WAC power supply (PWR-C1-350WAC) with a second bay for a redundant supply. It is a data-only model with no PoE. StackWise-480 stacking provides 480 Gbps of stack bandwidth, and StackPower shares power across stack members.

The SFP receptacles accept Gigabit SFP modules. Stacking uses STACK-T1-50CM, STACK-T1-1M or STACK-T1-3M cables, and StackPower uses CAB-SPWR-30CM or CAB-SPWR-150CM cables.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Integrated wireless controller capability in mobility agent and mobility controller modes
- StackWise-480 stacking with 480 Gbps of stack throughput
- StackPower for power redundancy and sharing across stack members
- UADP ASIC for uniform wired and wireless policy, QoS and visibility
- Flexible NetFlow for wired and wireless application visibility
- Security features including 802.1x, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, port security and MACsec-128
- Full Layer 3 routing with OSPF, EIGRP, BGP, IS-IS, PIM, VRF-Lite and IPv6 routing
- Dual redundant modular power supplies and three field-replaceable fans
- Smart Install, Auto Smartports and Embedded Event Manager for simplified operations

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Model: WS-C3850-12S-E
- Downlink ports: 12 x SFP (Gigabit Ethernet)
- Optional uplink modules: C3850-NM-4-1G, C3850-NM-2-10G
- Feature set: IP Services
- Default power supply: 350WAC (PWR-C1-350WAC), 100-240VAC, 50-60 Hz
- Power supply bays: dual redundant slots
- PoE: None (data-only model)
- StackWise-480: Yes, 480 Gbps stack bandwidth
- StackPower: Yes
- Switching capacity: 68 Gbps
- Forwarding rate: 50.5 Mpps
- MAC addresses: 32,000
- IPv4 routes (ARP plus learned routes): 24,000
- FNF entries: 24,000 flows
- DRAM: 4 GB
- Flash: 2 GB
- VLAN IDs: 4,000
- Switched Virtual Interfaces: 1,000
- Jumbo frame: 9198 bytes
- Wireless capacity: up to 100 access points and 2000 clients per switch or stack, 64 WLANs per switch
- Dimensions (H x W x D): 4.45 x 44.5 x 45.0 cm
- Weight: 7.02 kg
- MTBF: 315,840 hours
- Operating temperature (AC power): -5 to +45 C up to 1500 m; -5 to +40 C up to 3000 m
- Storage temperature: -40 to 70 C
- Form factor: 1 RU

FAQs

Q: Which licence does this switch ship with?
A: The -E suffix means it ships with the IP Services feature set. Feature sets are LAN Base, IP Base and IP Services, and mixed stacks of different feature sets are not supported. Cisco DNA Essentials and Advantage term licences are optional add-ons.

Q: Does it support PoE?
A: No. This is a data-only model with no PoE capability. It runs from a 350WAC power supply (PWR-C1-350WAC), and a second bay accepts a redundant supply.

Q: Which uplink modules does it support?
A: It supports the C3850-NM-4-1G and C3850-NM-2-10G uplink modules. The 4-10G, 8-10G and 2-40G modules are not supported on this model.

Q: What can the SFP ports accept?
A: The 12 downlink SFP receptacles accept Gigabit SFP modules only. Optics compatibility is listed in Cisco's transceiver compatibility matrix.

Q: How do I stack it with other switches?
A: Use StackWise-480 cables (STACK-T1-50CM, STACK-T1-1M or STACK-T1-3M) for data stacking and CAB-SPWR-30CM or CAB-SPWR-150CM for StackPower. Switches in a stack must run the same feature set.

Q: Which power supplies can go in the second bay?
A: The second bay supports a redundant 350WAC, 715WAC, 1100WAC or 440WDC power supply.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
