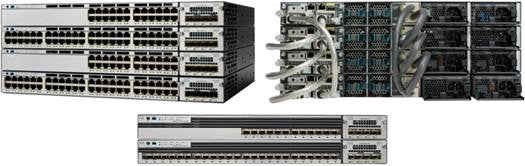

Cisco WS-C3750X-24P-S | Catalyst 3750-X 24-Port PoE+ Switch, 435W, IP Base

WS-C3750X-24P-S

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3750-X is a stackable enterprise access switch for campus and branch networks that need PoE+ for IP phones, Wi-Fi access points and IP cameras. It suits routed access and converged wired and wireless edges that need secure access through 802.1X, MACsec and TrustSec.

This IP Base model has 24 10/100/1000 PoE+ ports, with up to 30W per port. It is built around a default 715W AC power supply that gives a 435W PoE budget. The switching fabric is 160 Gbps with a forwarding rate of 65.5 mpps when fitted with two 10GbE uplinks. StackWise Plus provides 64 Gbps of stacking throughput for up to nine switches, and StackPower lets stack members share power. The IP Base feature set covers routed access with OSPF for routed access, RIP and EIGRP stub, plus HSRP. Moving to IP Services is done through Cisco IOS Software Activation.

Uplinks are provided by optional hot-swappable network modules: C3KX-NM-1G (4x GbE), C3KX-NM-10G (2x 10GbE SFP+ or 4x SFP) and C3KX-NM-10GT (2x 10GBASE-T). The C3KX-SM-10G Service Module adds Flexible NetFlow and switch-to-switch MACsec. It stacks with other Catalyst 3750-X and 3750 Series switches and works with the XPS 2200 expandable power system.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- IEEE 802.3at PoE+ with up to 30W per port
- Cisco StackWise Plus for stacking up to nine switches as one logical unit
- Cisco StackPower for sharing power across stack members
- Modular power supplies and fans with redundancy support
- MACsec hardware encryption, with switch-to-switch encryption via the Service Module
- Cisco EnergyWise for power monitoring and control
- Cisco Smart Operations including Smart Install and Auto Smartports
- Layer 2 threat defence with Port Security, DHCP Snooping, Dynamic ARP Inspection and IP Source Guard
- 802.1X and Cisco TrustSec access control
- IPv4 and IPv6 support in hardware

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 24 x 10/100/1000 PoE+ Ethernet
- Feature set: IP Base
- Default power supply: C3KX-PWR-715WAC (715W AC)
- Available PoE power: 435W
- Switching fabric: 160 Gbps
- Forwarding rate (with two 10GbE uplinks): 65.5 mpps
- Stacking: StackWise Plus 64 Gbps, up to 9 switches per stack
- DRAM: 256 MB
- Flash: 64 MB
- VLANs: 1005 total (VLAN IDs 4K)
- Switched virtual interfaces: 1K
- Jumbo frame: 9216 bytes
- Unicast MAC addresses: 4K (access), 6K (default), 3K (routing), 12K (VLAN template)
- Unicast routes: 6K (access), 8K (default), 11K (routing)
- Security ACEs: 2K (access), 1K (other templates)
- Dimensions (H x W x D): 4.45 x 44.5 x 46.0 cm (1 RU)
- Weight: 7.2 kg
- MTBF: 167,198 hours
- Power input: 100-240 VAC, 50-60 Hz
- Power consumption with no PoE load: approx. 99 W
- Operating temperature (AC PSU): -5 to +45 C up to 1500 m
- Relative humidity: 5% to 95%, non-condensing
- Management ports: USB Type-A and Type-B, out-of-band Ethernet, RJ-45 console

FAQs

Q: Which licence does this switch ship with?
A: It ships with the IP Base feature set, indicated by the -S suffix. You can upgrade to IP Services through Cisco IOS Software Activation, using licence C3750X-24-S-E or its e-licence L-C3750X-24-S-E.

Q: How much PoE power does it provide?
A: With the default 715W AC power supply it provides 435W of PoE. Delivering full 30W PoE+ on all 24 ports needs one C3KX-PWR-1100WAC or two C3KX-PWR-715WAC power supplies.

Q: Which uplink modules work with this switch?
A: It accepts the C3KX-NM-1G (4x GbE), C3KX-NM-10G (2x 10GbE SFP+ or 4x SFP) and C3KX-NM-10GT (2x 10GBASE-T) network modules. The C3KX-SM-10G Service Module adds Flexible NetFlow and MACsec.

Q: What can it be stacked with?
A: It stacks through StackWise Plus with other Catalyst 3750-X and 3750 Series switches, up to nine per stack. StackPower cables (CAB-SPWR-) let stack members share power.

Q: Is there power redundancy?
A: A second power supply can be added for redundancy or extra PoE. The XPS 2200 expandable power system can also provide backup power.
