Cisco WS-C3750X-24P-E | Catalyst 3750-X 24-Port PoE+ Switch, 715W, IP Services

WS-C3750X-24P-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

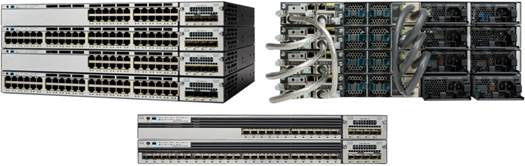

The Catalyst 3750-X is a stackable enterprise-class Layer 3 access switch built for campus and access-layer deployments. This model provides 24 10/100/1000 PoE+ ports for IP telephones, wireless access points and other IEEE 802.3af/at devices.

It is fitted with the 715W AC power supply, which gives a 435W PoE budget, and supports up to 30W per port under IEEE 802.3at. Switching fabric is 160 Gbps, and Cisco StackWise Plus stacking delivers 64 Gbps between members. A slot accepts an optional hot-swappable uplink network module, either four Gigabit SFP ports or two 10G SFP+ plus two Gigabit SFP ports. This SKU carries the IP Services feature set, the top tier above IP Base and LAN Base, adding full enterprise Layer 3 services including advanced routing, IPv4/IPv6 and multicast.

The uplink slot works with the C3KX-NM-1G, C3KX-NM-10G, C3KX-NM-10GT and C3KX-SM-10G modules. It stacks with other Catalyst 3750-X and 3750 series switches over StackWise Plus cables, and the SFP+ ports accept both 10GbE and GbE optics.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- PoE+ (IEEE 802.3at) with up to 30W per port in a 1 RU form factor
- Cisco StackWise Plus stacking at 64 Gbps, backward compatible with other Catalyst 3750 models
- Cisco StackPower for sharing power among stack members
- Modular, hot-swappable uplink network modules with GE or 10GE ports
- Modular power supplies and fans with redundancy support
- MACsec hardware-based encryption
- Hardware-based IPv4/IPv6 routing with advanced QoS and security
- IP Services feature set with advanced routing and multicast

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Feature set: IP Services
- Ports: 24 x 10/100/1000 PoE+ (IEEE 802.3at, up to 30W per port)
- Default power supply: 715W AC (C3KX-PWR-715WAC)
- Available PoE power: 435W
- Uplink slot: optional C3KX-NM-1G (4 x GbE SFP) or C3KX-NM-10G (2 x 10GbE SFP+ plus 2 x GbE SFP)
- Switching fabric: 160 Gbps
- Forwarding rate (with two 10GbE uplinks): 65.5 mpps
- StackWise Plus throughput: 64 Gbps
- DRAM: 256 MB
- Flash: 64 MB
- Total VLANs: 1005
- VLAN IDs: 4K
- Switched Virtual Interfaces: 1K
- Jumbo frame: 9216 bytes
- Routed ports per stack: 468
- Dimensions (H x W x D): 4.45 x 44.5 x 46.0 cm
- Weight: 7.2 kg
- Form factor: 1 RU rack-mount
- Power input: 100-240 VAC, 50-60 Hz
- Operating temperature: -5 to +45 C up to 1500 m
- Relative humidity: 5% to 95% non-condensing
- Acoustic noise (16 PoE+ ports loaded): 43 dBA typical, 46 dBA maximum
- MTBF: 167,198 hours

FAQs

Q: Which licence tier does this switch ship with?
A: The -E suffix means it ships with the IP Services feature set, the top tier above IP Base (-S) and LAN Base (-L). It adds full enterprise Layer 3 features including advanced routing, IPv4/IPv6 and multicast.

Q: What is the PoE budget?
A: With the 715W AC power supply the switch provides 435W of PoE power across its 24 PoE+ ports, with up to 30W available on each port.

Q: Which uplink modules does it accept?
A: It accepts the C3KX-NM-1G (4 x GbE SFP), C3KX-NM-10G (2 x 10GbE SFP+ plus 2 x GbE SFP), C3KX-NM-10GT (2 x 10GBASE-T) and C3KX-SM-10G service module. The SFP+ ports take both 10GbE and GbE optics.

Q: Can it be stacked with other switches?
A: Yes. StackWise Plus provides 64 Gbps stacking with other Catalyst 3750-X and 3750 series switches. StackPower is also supported, and StackPower cables are purchased separately.

Q: Which power supplies are supported?
A: Supported modular options are the C3KX-PWR-350WAC, C3KX-PWR-715WAC, C3KX-PWR-1100WAC and the C3KX-PWR-440WDC. A second supply can be fitted for redundancy.
