Cisco

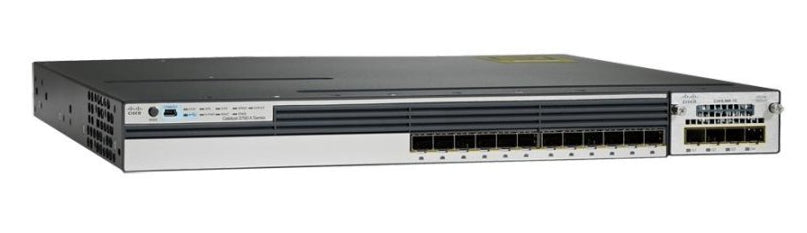

Cisco WS-C3750X-12S-S | Catalyst 3750-X 12-Port 1G SFP Switch, 350W, IP Base

WS-C3750X-12S-S

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3750-X is a stackable Layer 3 switch built for enterprise access and aggregation in fibre-based wiring closets. This model provides 12 Gigabit Ethernet SFP downlink ports in a 1RU chassis, with routed access and stack resiliency for campus and branch deployments.

The 12 downlinks accept standard SFP modules, and there is no PoE on this SKU. It is powered by a 350W AC supply (100-240 VAC) and has a 160 Gbps switching fabric with a forwarding rate of 35.7 mpps. An optional uplink network module slot adds 4x 1G SFP, 2x 10G SFP+ or 2x 10GBASE-T, and typical consumption sits at roughly 86 to 128 W depending on the module fitted. It ships with the IP Base feature set, which includes routed access, StackPower, MACsec and 1K VLANs, and can be upgraded to IP Services through a licence.

StackWise Plus delivers 64 Gbps of stack throughput with other Catalyst 3750-X switches. The supported uplink modules are C3KX-NM-1G, C3KX-NM-10G, C3KX-NM-10GT and the C3KX-SM-10G service module.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- StackWise Plus stacking with 64 Gbps stack throughput
- Cisco StackPower for sharing power across stack members
- Modular, redundant power supplies and fans
- MACsec hardware-based encryption
- Flexible NetFlow and switch-to-switch hardware encryption with the Service Module uplink
- OSPF routed access in the IP Base image
- IPv4 and IPv6 routing, multicast routing, advanced QoS and security in hardware
- USB Type-A and Type-B ports plus an out-of-band Ethernet management port

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: WS-C3750X-12S-S
- Downlink ports: 12 x Gigabit Ethernet SFP
- PoE: none
- Uplink options: optional network module slot (C3KX-NM-1G 4x1G SFP, C3KX-NM-10G 2x10G SFP+, C3KX-NM-10GT 2x10GBASE-T, C3KX-SM-10G service module)
- Default power supply: 350W AC, 100-240 VAC, 50/60 Hz
- Switching fabric: 160 Gbps
- Forwarding rate: 35.7 mpps
- Stacking: StackWise Plus, 64 Gbps stack throughput
- DRAM: 512 MB
- Flash: 128 MB
- Total VLANs: 1005 (4K VLAN IDs)
- Switched virtual interfaces: 1K
- Jumbo frame: 9216 bytes
- Routed ports per stack: 468
- Feature set: IP Base
- Form factor: 1RU rack-mountable
- Dimensions (H x W x D): 4.45 x 44.5 x 46.0 cm
- Weight: 6.8 kg
- MTBF: 194,224 hours

FAQs

Q: Which licence does this switch ship with?
A: It ships with the IP Base feature set, which covers routed access, StackPower, MACsec and 1K VLANs. It can be upgraded to IP Services using a C3750X-LIC= product activation licence.

Q: Does this switch provide PoE?
A: No. This model has no PoE. It is powered by a 350W AC internal supply and is intended for fibre-based access and aggregation.

Q: Can the SFP ports take SFP+ modules?
A: No. The 12 downlink ports accept standard 1G SFP modules only. 10G connectivity is available through the optional uplink module, such as the C3KX-NM-10G.

Q: Which uplink modules work with this switch?
A: The supported modules are C3KX-NM-1G (4x 1G SFP), C3KX-NM-10G (2x 10G SFP+), C3KX-NM-10GT (2x 10GBASE-T) and the C3KX-SM-10G service module.

Q: Can it be stacked with other switches?
A: Yes. It stacks with other Catalyst 3750-X switches using StackWise Plus at 64 Gbps, and StackPower lets stack members share power.
