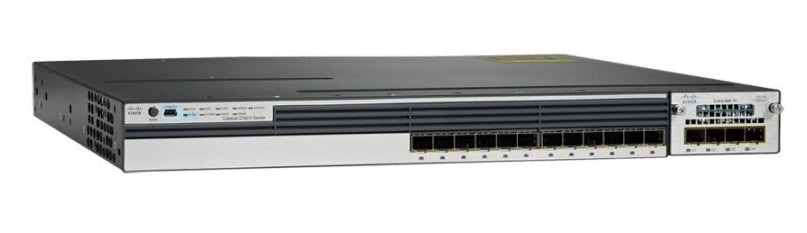

• Cisco WS-C3750X-12S-E switch with 12 GE SFP ports and black silver design
1 1

Cisco

Cisco WS-C3750X-12S-E | Catalyst 3750-X 12-Port SFP Switch, IP Services

WS-C3750X-12S-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3750-X 12-port SFP switch is a stackable 1 RU enterprise access switch for campus access or small distribution deployments that need fibre or SFP copper connectivity with advanced Layer 3 routing, optional 10G uplinks and MACsec and NetFlow security options.

This SKU provides 12 Gigabit Ethernet SFP ports with no PoE, a 350W AC power supply and the IP Services feature set. The switching fabric is 160 Gbps with a forwarding rate of 35.7 mpps when fitted with two 10GbE uplinks. An uplink network module slot accepts 4 x GbE, 2 x 10GbE SFP+, 2 x 10GBASE-T or Service Module options. Cisco StackWise Plus provides 64 Gbps stacking for up to 9 switches. The IP Services image is the highest tier of the LAN Base, IP Base and IP Services range.

Uplink modules supported include C3KX-NM-1G, C3KX-NM-10G, C3KX-NM-10GT and C3KX-SM-10G. It stacks with other 3750-X and 3750 series switches using StackWise Plus cables, and a second modular power supply or an XPS 2200 can be added for power redundancy.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco StackWise Plus stacks up to 9 switches as one logical unit with 64 Gbps stack throughput
- Cisco StackPower shares power across stack members
- Optional hot-swappable uplink modules for 1G, 10G SFP+ and 10GBASE-T, plus a Service Module
- MACsec (IEEE 802.1AE) hardware-based encryption with the Service Module
- IP Services routing: EIGRP, OSPF, BGPv4, IS-IS, PIM, PBR, VRF-Lite and IPv6 routing
- Advanced QoS with 8 egress queues per port, SRR scheduling and strict priority queuing
- TrustSec, 802.1X, DHCP snooping, Dynamic ARP Inspection, IP source guard and port security

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 12 x Gigabit Ethernet SFP
- PoE: None
- Feature set: IP Services
- Uplink module slot: 4 x GbE, 2 x 10GbE SFP+, 2 x 10GBASE-T or Service Module
- Power supply: 350W AC (C3KX-PWR-350WAC), 100-240 VAC, 50-60 Hz
- Stacking: Cisco StackWise Plus, 64 Gbps, up to 9 switches
- Switching fabric: 160 Gbps
- Forwarding rate: 35.7 mpps (with two 10GbE uplinks)
- DRAM: 512 MB
- Flash: 128 MB
- VLANs: 1005 total, 4K VLAN IDs
- Switched virtual interfaces: 1K
- Jumbo frame: 9216 bytes
- Unicast MAC addresses: 6K
- Unicast routes: 8K
- Security ACEs: 1K
- IGMP groups and multicast routes: 1K
- Form factor: 1 RU
- Dimensions (H x W x D): 4.45 x 44.5 x 46.0 cm
- Weight: 6.8 kg
- MTBF: 194,224 hours
- Operating temperature (AC PSU): -5 to +45 C up to 1500 m
- Relative humidity: 5% to 95% non-condensing
- Storage temperature: -40 to 70 C

FAQs

Q: Which feature set does this SKU include?
A: The -E suffix denotes the IP Services feature set, the highest tier of LAN Base, IP Base and IP Services. It adds advanced Layer 3 IPv4 and IPv6 routing such as BGPv4, IS-IS and VRF-Lite.

Q: Does this switch provide PoE?
A: No. This SKU has no PoE and uses a 350W AC power supply (C3KX-PWR-350WAC) to run the switch itself.

Q: Which uplink modules does it work with?
A: It works with the C3KX-NM-1G, C3KX-NM-10G, C3KX-NM-10GT and C3KX-SM-10G modules. The Service Module adds line-rate Flexible NetFlow and MACsec encryption on the uplinks.

Q: Can it be stacked or given power redundancy?
A: Yes. It stacks with other 3750-X and 3750 series switches over StackWise Plus using CAB-STACK cables. It accepts a second modular power supply and supports StackPower and the XPS 2200.

Q: How does it differ from other 3750-X SKUs?
A: This SKU has 12 Gigabit SFP ports, IP Services, a 350W AC supply and no PoE. Sibling models vary by port type and count, PoE budget and feature set.
