Cisco

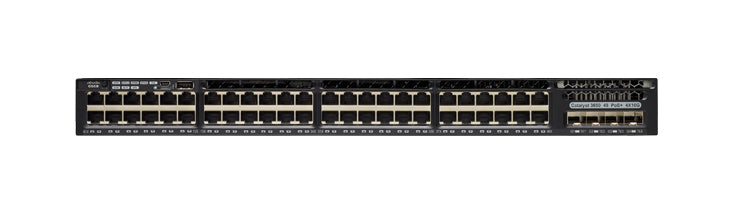

Cisco WS-C3650-48TQ-S | Catalyst 3650 48-Port Gigabit Switch, 4x 10G SFP+, IP Base

WS-C3650-48TQ-S

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3650 48-port switch is a stackable enterprise access-layer switch for campus and branch networks that need converged wired and wireless access, 10G uplinks and optional stacking. Its integrated wireless controller capability removes the need for a separate controller at smaller sites.

It provides 48 x 10/100/1000 Ethernet ports on a data-only chassis with no PoE, plus 4 x 10G SFP+ fixed uplinks that also operate as 4 x 1G SFP. Switching capacity is 176 Gbps with a forwarding rate of 130.95 Mpps. Optional StackWise-160 stacking gives 160 Gbps of stack bandwidth across up to nine members. This SKU carries the IP Base feature set and ships with a 250 WAC power supply (PWR-C2-250WAC), with a second supply supported for redundancy. The 1 RU chassis draws about 73 to 96.7 W depending on traffic load.

It stacks with other Catalyst 3650 switches at the same licence level using StackWise-160 stack modules and cables. It works with Aironet access points and the PWR-C2 power supply family and FAN-T1 fan module.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Converged wired and wireless access on a single Cisco IOS XE platform
- Integrated wireless controller capability with mobility agent by default
- Optional StackWise-160 stacking with SSO-based resiliency for up to nine switches
- Cisco UADP ASIC with hardware-based hierarchical QoS across wired and wireless
- Flexible NetFlow and Wireshark for application visibility and troubleshooting
- Security with 802.1X, DHCP snooping, Dynamic ARP Inspection, IP Source Guard, port security and ACLs
- Smart Install, Auto Smartports and smart troubleshooting operations tools
- Modular, field-replaceable fans and power supplies with redundancy support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x 10/100/1000 Ethernet (non-PoE)
- Uplinks: 4 x 10G SFP+ or 4 x 1G SFP
- Feature set: IP Base
- Switching capacity: 176 Gbps
- Forwarding rate: 130.95 Mpps
- Stacking: Cisco StackWise-160, 160 Gbps, up to 9 members
- Default power supply: 250 WAC (PWR-C2-250WAC)
- PoE budget: none (data-only model)
- DRAM: 4 GB
- Flash: 2 GB
- MAC addresses: 32,000
- IPv4 routes: 24,000
- VLAN IDs: 4,094
- Switched virtual interfaces: 1,000
- Jumbo frame: 9198 bytes
- Wireless capacity: up to 40 Gbps, 25 access points and 1000 clients per switch or stack
- Power consumption: 73.0 W at 0% traffic, 96.7 W at 100% traffic
- Dimensions (H x W x D): 1.73 x 17.5 x 17.625 in (4.4 x 44.5 x 44.8 cm), 1 RU
- Operating temperature: -5 to +45 C up to 1500 m
- Relative humidity: 5% to 96% noncondensing

FAQs

Q: Which feature set does this SKU include?
A: This SKU includes the IP Base feature set, which provides entry-level enterprise Layer 3 services, routed access, 4,094 VLANs and Flexible NetFlow. An upgrade to IP Services is available through an RTU licence.

Q: Does it provide PoE?
A: No. This is a data-only model with no PoE budget. It ships with a 250 WAC power supply (PWR-C2-250WAC) and a second supply can be added for redundancy.

Q: Can it be stacked with other switches?
A: Yes, using StackWise-160 stack modules and cables such as C3650-STACK-KIT= and STACK-T2-50CM/1M/3M=. It stacks only with other Catalyst 3650 switches at the same licence level, and a mixed stack of different licence levels is not supported.

Q: Can the SFP+ uplinks run at 1G?
A: Yes. The four fixed uplink ports operate as 4 x 10G SFP+ or as 4 x 1G SFP, depending on the optic installed.

Q: Which access points does it work with?
A: It supports Aironet access points including the 3700, 3600, 3500, 2600, 1600, 1260, 1140 and 1040. It works with the WLC 5760, WLC 5508 and WiSM2 as mobility controllers.
