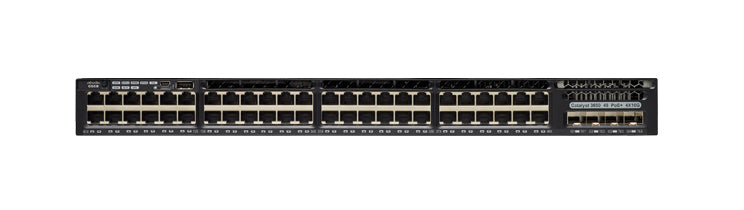

• Cisco WS-C3650-48TQ-E 48-port Gigabit Ethernet Switch with 4x10G SFP+ Uplinks
1 1

Cisco

Cisco WS-C3650-48TQ-E | Catalyst 3650 48-Port Gigabit Switch, 4x 10G SFP+, IP Services

WS-C3650-48TQ-E

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco WS-C3650-48TQ-E is an enterprise-class stackable access switch delivering converged wired and wireless management on a single platform. With 48 Gigabit Ethernet ports, 4x 10G SFP+ uplinks, and IP Services license, it provides advanced Layer 3 routing, Flexible NetFlow, and wireless controller capabilities for up to 50 access points. Built on StackWise-160 technology with 176 Gbps switching capacity, it offers superior resiliency and uniform policy enforcement across campus and branch networks.

Features

IP Services license with advanced IPv4 and IPv6 routing (OSPF, EIGRP, BGP, PBR)
- Cisco Unified Access Data Plane (UADP) ASIC for wire-speed performance
- Optional StackWise-160 with stateful switchover (SSO) for high availability
- Integrated wireless controller functionality (mobility agent and controller modes)
- Flexible NetFlow (FNF) Version 9 for advanced traffic analytics
- Advanced security: IEEE 802.1X, Dynamic ARP Inspection, DHCP snooping, IP Source Guard
- Quality of Service (QoS): 8 egress queues per port, marking, classification, policing
- Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption
- Modular and field-replaceable fans and redundant power supplies
- Layer 2 features: RSTP, MSTP, PVRST+, LACP, PAgP, UDLD
- Layer 3 features: up to 24,000 IPv4 routes, 4,000 VLANs, 1,000 SVIs
- MACsec encryption support for secure Layer 2 communications
- USB storage for configuration and log file backup
- Cisco TrustSec and Group-Based Policy support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

48x 10/100/1000 Ethernet ports (RJ-45)
- 4x 10G SFP+ uplink ports
- IP Services feature set with advanced Layer 3 routing (IPv4/IPv6)
- Switching capacity: 176 Gbps
- Forwarding rate: 130.95 Mpps
- Memory: 4 GB DRAM, 2 GB Flash
- Optional StackWise-160 technology (up to 9 switches, 160 Gbps stack bandwidth)
- Wireless controller support: up to 50 APs and 1000 clients per switch/stack
- IPv4 routes: 24,000 | NetFlow entries: 48,000 | VLANs: 4,000 | SVIs: 1,000
- Dual redundant hot-swap power supply support (250W default)
- Form factor: 1U rack-mountable (44.5 x 44.8 x 4.4 cm)
- Management: CLI, Web GUI, SNMP v1/v2c/v3, RMON, USB console

FAQs

Q: What is the difference between the WS-C3650-48TQ-E and WS-C3650-48TQ-L?
A: The -E model includes the IP Services license, offering advanced Layer 3 routing (IPv4/IPv6), Flexible NetFlow with 48,000 entries, 24,000 IPv4 routes, and full wireless controller functionality. The -L model has LAN Base license with basic Layer 2 switching and limited VLANs (255). IP Services is ideal for enterprises requiring advanced routing and wireless integration.

Q: Does this switch support Power over Ethernet (PoE)?
A: No, the WS-C3650-48TQ-E is a non-PoE model. For PoE+ support on the same platform with 4x 10G uplinks, consider the WS-C3650-48PQ-E (390W PoE budget) or WS-C3650-48FQ-E (740W PoE budget) models.

Q: Can this switch act as a wireless controller?
A: Yes, with the IP Services license the WS-C3650-48TQ-E can operate in mobility controller mode, supporting up to 50 Cisco Aironet access points and 1,000 wireless clients per switch or stack. This provides converged wired-wireless management with unified policy enforcement and application visibility.

Q: What stacking options are available?
A: The switch supports optional Cisco StackWise-160 technology using the C3650-STACK-KIT module. You can stack up to 9 switches with 160 Gbps stack bandwidth, creating a single management domain with stateful switchover for high availability. Stacking provides simplified management with a single IP, CLI, and configuration.

Q: What uplink flexibility does the 4x 10G SFP+ ports provide?
A: The 4x 10G SFP+ ports support both 10 Gigabit Ethernet (10GBASE-SR/LR) and Gigabit Ethernet (1000BASE-SX/LX) SFP modules, providing flexible high-speed connectivity to distribution layer switches, storage networks, or data centers. This allows for future-proof 10G upgrades or cost-effective 1G connections as needed.
