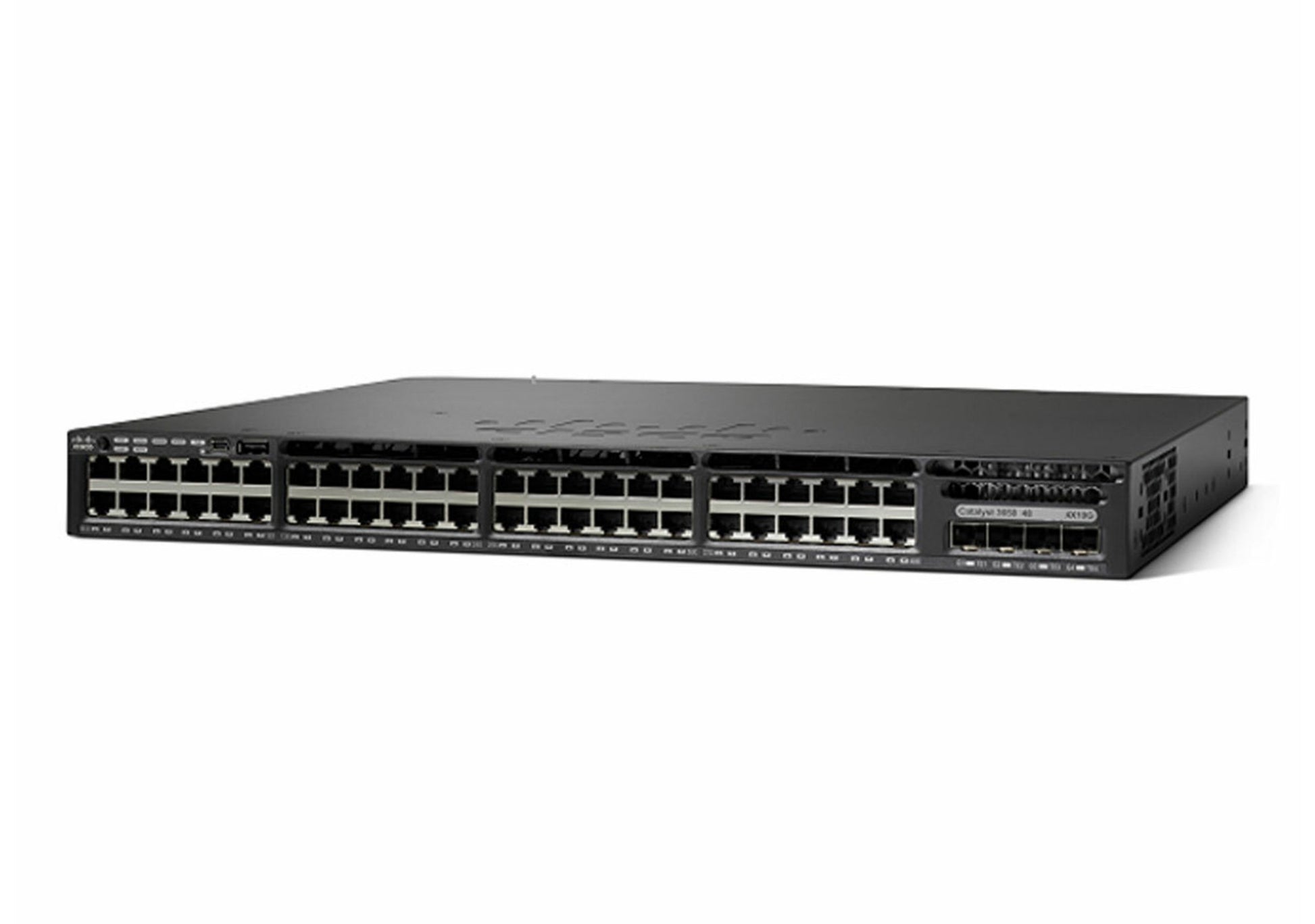

• Cisco WS-C3650-48FD-S switch with 48 PoE+ ports and 10G uplinks
1 1

Cisco

Cisco WS-C3650-48FD-S | Catalyst 3650 48-Port PoE+ Switch, 2x 10G SFP+, IP Base

WS-C3650-48FD-S

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3650 WS-C3650-48FD-S is a 1RU access-layer switch for enterprise campus and branch networks that need high-density PoE+ for IP phones, cameras and Wi-Fi access points. It brings wired and wireless convergence onto one platform, with integrated wireless controller capability for up to 50 access points and 1000 wireless clients per switch or stack.

The switch provides 48 x 10/100/1000 PoE+ ports and fixed uplinks of 2 x 10 Gigabit SFP+ and 2 x 1 Gigabit SFP. Switching capacity is 176 Gbps with a forwarding rate of 104.16 Mpps, and optional StackWise-160 stacking adds 160 Gbps of stack bandwidth. It uses a 1025 WAC power supply and provides 775 W of available PoE power, and it runs the IP Base feature set with 4094 VLANs and routed access. IP Services is available as an RTU upgrade licence.

Stacking is supported only with other 3650 switches running the same feature set, using the C3650-STACK-KIT and STACK-T2 cables. The uplink ports accept SFP and SFP+ optics, and spare PWR-C2-640WAC, PWR-C2-640WDC, PWR-C2-1025WAC and FAN-T1 modules are supported.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Integrated wireless controller capability for up to 50 access points and 1000 wireless clients per switch or stack
- Full IEEE 802.3at PoE+ delivering 30 W per port in 1 RU
- Optional Cisco StackWise-160 stacking for scalability and resiliency
- Modular, field-replaceable power supplies and three modular fans
- Cisco UADP ASIC for wired and wireless policy enforcement
- Flexible NetFlow, Wireshark, hierarchical wired and wireless QoS
- Security features including 802.1X, DHCP snooping, dynamic ARP inspection and IP source guard
- Cisco Catalyst Smart Operations (Smart Install, Auto Smartports) and EEE energy efficiency

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ethernet ports: 48 x 10/100/1000 PoE+
- Uplinks: 2 x 10 Gigabit Ethernet SFP+ and 2 x 1 Gigabit Ethernet SFP
- Default power supply: 1025 WAC (PWR-C2-1025WAC)
- Available PoE power: 775 W
- Switching capacity: 176 Gbps
- Forwarding rate: 104.16 Mpps
- Stacking bandwidth: 160 Gbps (optional StackWise-160)
- Feature set: IP Base
- MAC addresses: 32,000
- IPv4 routes (ARP plus learned routes): 24,000
- DRAM: 4 GB
- Flash: 2 GB
- VLAN IDs: 4,094
- Switched virtual interfaces (SVIs): 1,000
- Jumbo frame: 9198 bytes
- Wireless bandwidth: up to 40 Gbps
- Dimensions (H x W x D): 4.4 x 44.5 x 48.6 cm (1.73 x 17.5 x 19.125 in)
- Weight: 7.80 kg (17.20 lb)
- Power supply input: 115-240 VAC, 50-60 Hz
- Power consumption (115VAC, no PoE load): 88.8 W at idle, 109.4 W at 100% traffic
- Operating temperature: -5 to +45 C up to 1500 m
- Storage temperature: -40 to 70 C
- Relative humidity: 5% to 96% non-condensing
- Acoustic noise: 45 dB typical, 48 dB maximum
- Form factor: 1 RU

FAQs

Q: Which licence tier does this switch run?
A: This SKU runs the IP Base feature set. IP Services is available as an RTU upgrade licence. Mobility agent mode needs no additional licence, while mobility controller mode needs access point licences.

Q: Can all 48 ports deliver 30 W PoE+ at the same time?
A: With the single 1025 WAC power supply fitted, 775 W of PoE power is available. Full 30 W PoE+ on all 48 ports requires two PWR-C2-1025WAC power supplies.

Q: Which power supplies are supported?
A: The PWR-C2-1025WAC, PWR-C2-640WAC and PWR-C2-640WDC modules are supported. A second power supply can be added for redundancy.

Q: What can it be stacked with?
A: StackWise-160 stacking works only with other Catalyst 3650 switches running the same feature set, using the C3650-STACK-KIT and STACK-T2 cables. LAN Base, IP Base and IP Services cannot be mixed in one stack.

Q: Which access points does it support?
A: Supported Aironet access points include the 3700, 3600, 3500, 2600, 1600, 1260, 1140 and 1040 series.
