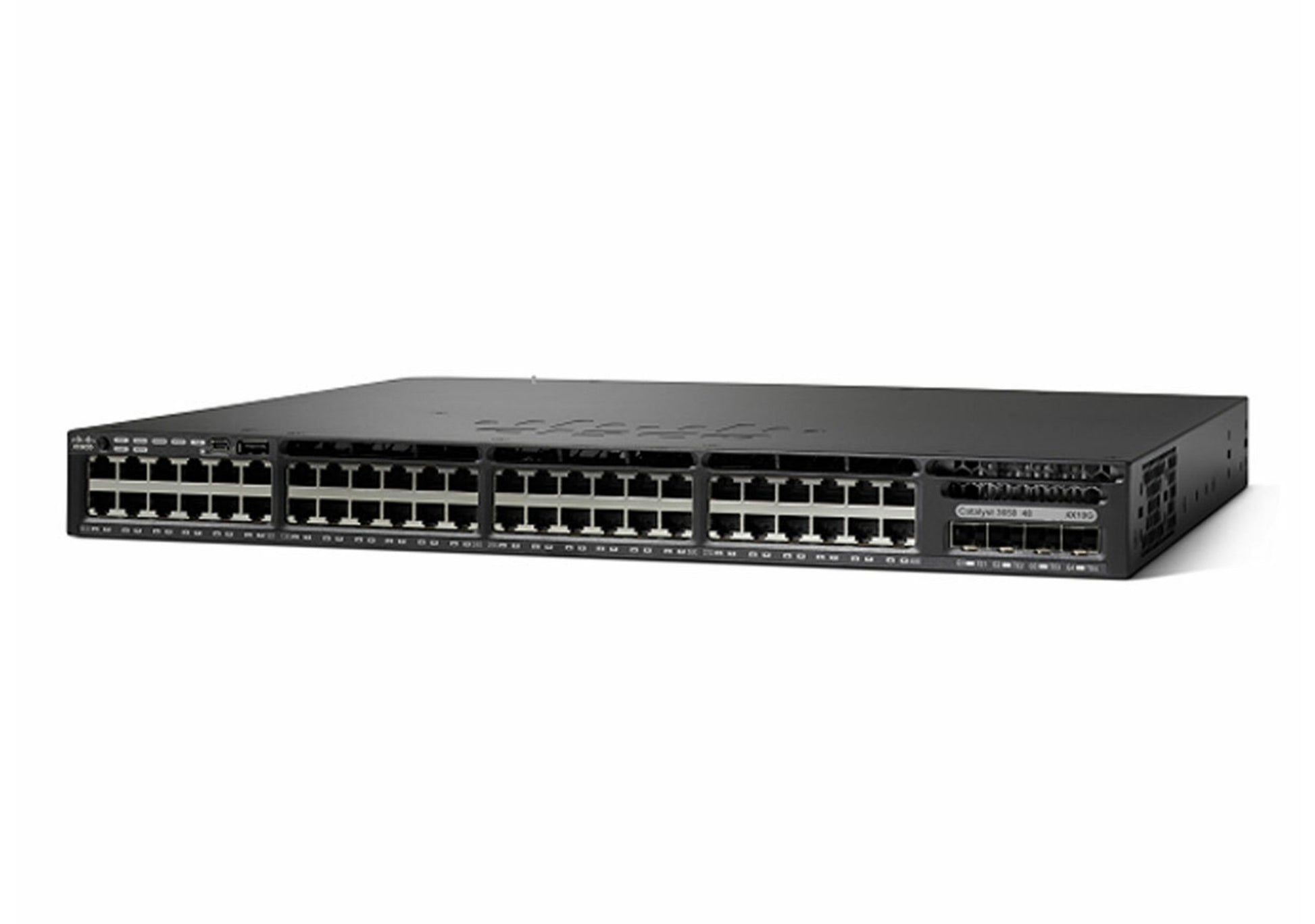

• Cisco WS-C3650-48FD-L switch with 48 PoE+ ports and 2x10G SFP+ uplinks
1 1

Cisco

Cisco WS-C3650-48FD-L | Catalyst 3650 48-Port PoE+ Switch, 775W, 2x 10G SFP+, LAN Base

WS-C3650-48FD-L

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3650 is a fixed-configuration, stackable enterprise access switch built for campus and branch access-layer deployments. It combines wired and wireless access on a single Cisco IOS XE platform, and is suited to powering IP phones, wireless access points and other 802.3at devices.

This model provides 48 10/100/1000 PoE+ ports with 775 W of available PoE power, plus 2 x 10G SFP+ and 2 x 1G SFP fixed uplinks. Switching capacity is 176 Gbps with a 104.16 Mpps forwarding rate, and StackWise-160 delivers 160 Gbps of stacking bandwidth. It ships with the LAN Base feature set, 4 GB DRAM and 2 GB flash in a 1RU chassis.

It supports a range of 1G SFP types and 10GBASE-SR, LR and LRM SFP+ transceivers, and stacks with other Catalyst 3650 switches using the C3650-STACK-KIT. Power supply options include PWR-C2-640WAC, PWR-C2-1025WAC and PWR-C2-640WDC.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Converged wired and wireless access on a single Cisco IOS XE platform with one console and CLI
- Integrated wireless controller capability, with mobility agent mode by default
- Cisco StackWise-160 stacking with stateful switchover (SSO)
- Full PoE+ (IEEE 802.3at) support on all 48 ports
- Flexible NetFlow Version 9, granular QoS and enhanced security across wired and wireless
- IPv4 and IPv6 routing and multicast routing
- IEEE 802.1ba Audio Video Bridging (AVB) support
- Single universal Cisco IOS XE image across all licence levels

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x 10/100/1000 PoE+
- Fixed uplinks: 2 x 10G SFP+ and 2 x 1G SFP
- Available PoE power: 775 W
- Default power supply: 1025 WAC
- Switching capacity: 176 Gbps
- Forwarding rate: 104.16 Mpps
- Stacking bandwidth: 160 Gbps (StackWise-160)
- Software feature set: LAN Base
- DRAM: 4 GB
- Flash: 2 GB
- MAC addresses: 32,000
- IPv4 routes: 24,000
- VLAN IDs: 4,094
- Switched virtual interfaces: 1,000
- Jumbo frame: 9198 bytes
- Dimensions (H x W x D): 4.4 x 44.5 x 48.6 cm (1RU)
- Weight: 7.80 kg
- Maximum power consumption: 109.4 W at 100% traffic (before PoE load)
- AC input voltage: 100-240 VAC auto-ranging
- Operating temperature: -5 to +45 C up to 1500 m
- Relative humidity: 5% to 96%, non-condensing

FAQs

Q: Which licence tier does this switch ship with?
A: It ships with the LAN Base feature set, indicated by the -L suffix. One universal Cisco IOS XE image covers all licence levels, so IP Base and IP Services can be unlocked with an upgrade licence.

Q: Can it deliver full PoE+ on all 48 ports?
A: The default 1025 WAC power supply provides 775 W of PoE budget. Delivering 30 W on all 48 ports requires two PWR-C2-1025WAC power supplies.

Q: Which SFP and SFP+ modules does it support?
A: It supports 100BASE-FX, 1000BASE-SX/LX/LH/ZX/BX10, CWDM/DWDM and 1000BASE-T SFPs, plus 10GBASE-SR/LR/LRM and CX1 (v02 or higher) SFP+ transceivers.

Q: Can it be stacked with other switches?
A: Yes. It stacks with other Catalyst 3650 switches using StackWise-160 and the C3650-STACK-KIT, giving 160 Gbps of stacking bandwidth.

Q: Can it act as a wireless controller?
A: It runs in mobility agent mode by default. Mobility controller mode requires IP Base or higher, and supports up to 25 access points and 1000 wireless clients per switch or stack.
